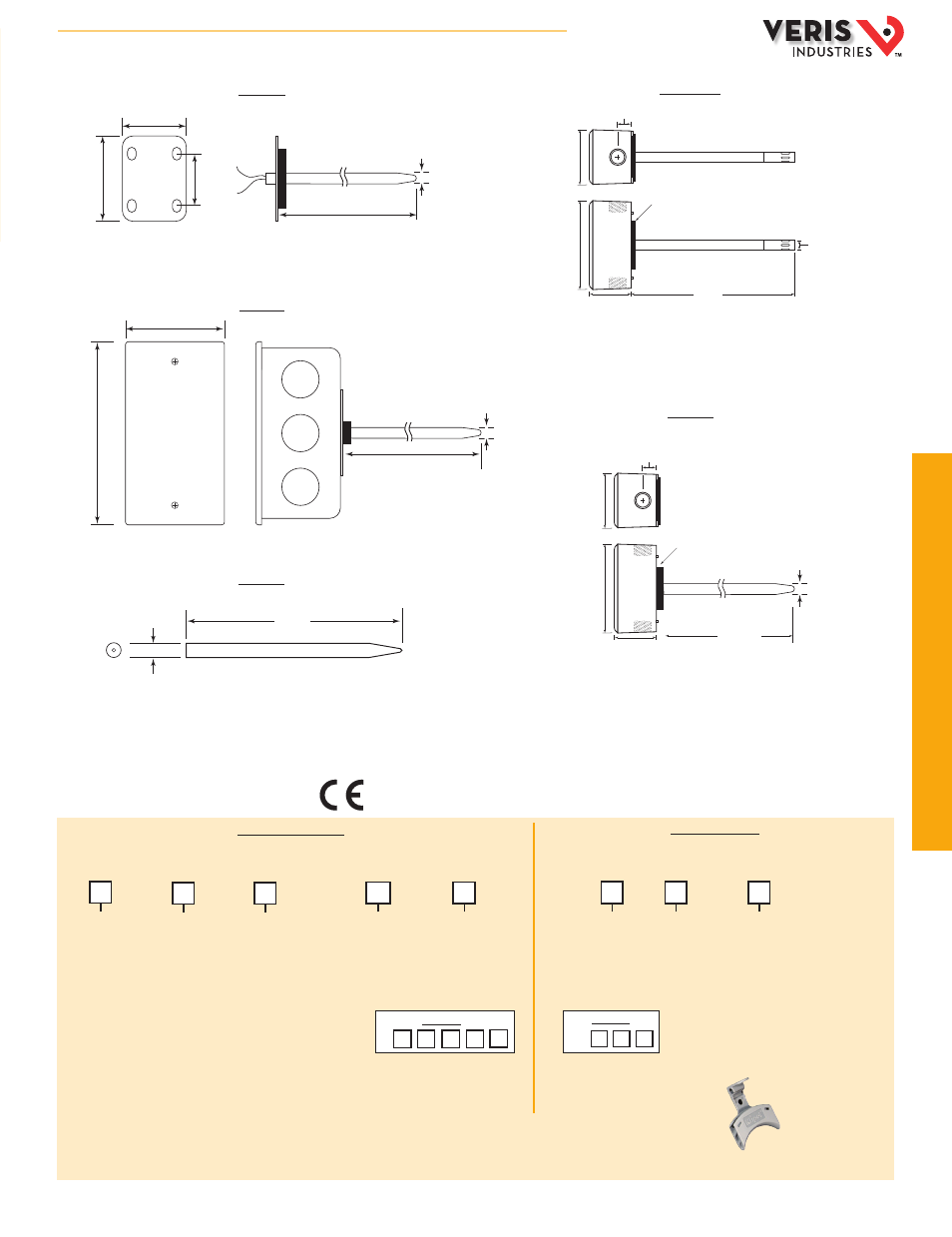

DIMENSIONAL DRAWINGS
TF Model
TDDA
Output
M = 4-20mA
V = 5/10V
Cal Certificate
0 = None
1 = 1 point Cal validation
2 = 2 point Cal validation
Range
1 = -40° to 50° C
(-40° to 122°F)
2 = 0° to 50°C
(32° to 122°F)
Transmitter Models
TG Model
TDDA Model
Example:
TDDA V 2 0
TD Model
Enclosure
Immersion Probe
Length “L”
B = 4" (102mm)*
C = 6" (152mm)
D = 8" (203mm)
E = 12” (305mm)**
F = 18” (457mm)**
G = 24” (610mm)**
K = 36” (914mm)**
D = Duct
F = Duct w/
mounting box
G = Duct w/water
resistant housing
K = Probe only (no
mounting
hardware)
Cal Certificate
0 = None
1 = 1 point
Cal validation
2 = 2 point
Cal validation
Example:
T D B D R0 2
Sensor Type Output
= Resistive out B = 100R Platinum, RTD
C = 1k Platinum, RTD
D = 10k T2, Thermistor
E = 2.2k, Thermistor
F = 3k, Thermistor
G = 10k CPC, Thermistor
H = 10k T3, Thermistor
J = 10k Dale, Thermistor
K = 10k w/11k shunt,
Thermistor
M = 20k NTC, Thermistor
N = 1800 ohm, Thermistor
P = 10mV/C, Linitemp
R = 10k US, Thermistor
S = 10k 3A 221B, Thermistor
T = 100k, Thermistor
U = 20k “D”, Thermistor
W = 10k T2 high accuracy, Thermistor
Y = 10k T3 high accuracy, Thermistor
Z = 10k E1, Thermistor
RTD/Thermistor Models
ORDERING INFORMATION
TK Model
* TK model is 4 1/2” (115 mm)
** Not available with TK model
0.25"Dia.
(6 mm)
1.5"
(38 mm)
2"
(51 mm)
1.1"
(28 mm)
L
2.9"
(74 mm)
4.6"
(117 mm)
2.0"
(51 mm)
0.7"
(18 mm)
Foam Gasket
2.5" x 2.5"
(64 mm x 64 mm)
8.5"
(216 mm)
0.5" Dia.
(13 mm.)
2.3"
(59 mm)
4.3"
(109 mm)
0.25"Dia.
(6 mm)
L
L
0.25"
(6 mm)
L
0.25"Dia.
(6.3 mm)
2.9"
(74 mm)
4.6"
(117 mm)
2.0"
(51 mm)
0.7"
(18 mm)
Foam Gasket
2.5" x 2.5"
(64 mm x 64 mm)
ACCESSORIES
Klipet mounting clip for TK probe (AA64)
