Wheel differential lock assembly, Parts identification – Spicer Single Drive Axles Service Manual: Single Reduction & Single Reduction with Differential Lock User Manual
Page 64
61

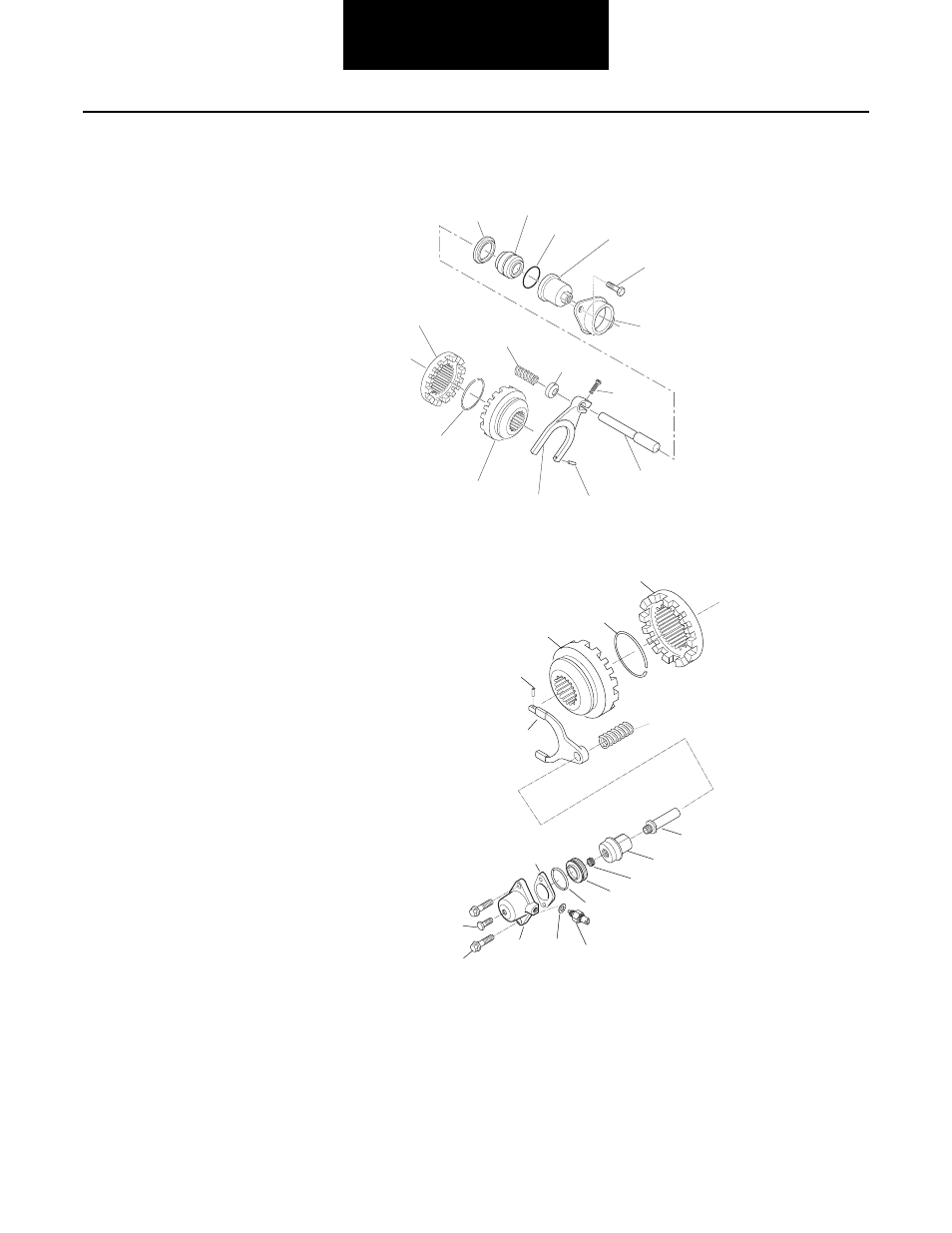

Parts Identification
Wheel Differential Lock Assembly
Type 1
Type 2
13
7
15
14
12
10
11
1
2
3
4
5
6
9
8
1 - Seal
2 - Piston
3 - O-ring
4 -Piston cover
5 -Capscrew
6 -Cover retainer
7 -Cervic clutch
8 - Spring
9 - Spring washer
10 - Set Screw
11 - Push rod
12 - Set screw
13 - Clutch fork
14 - Sliding cervic clutch
15 - Snap ring
15
16
13
12
11
10
9
8
7
6
5
4
3
2
1
14
17
4 - Spring pin
5 - Shift fork
6 - Compression spring
7 - Push rod
8 - Piston driver
9 - Set screw
10 - Piston
11 - O-ring
12 - Switch
13 - Plastic washer
14 - Piston cover
15 - Capscrew—flange head
16 - Capscrew—manual engagement
17 - Gasket
1 - Fixed cervic clutch gear
2 - Snap ring
3 - Sliding clutch gear
