Page 29
26
Wheel Differential
Ser
vice Procedure

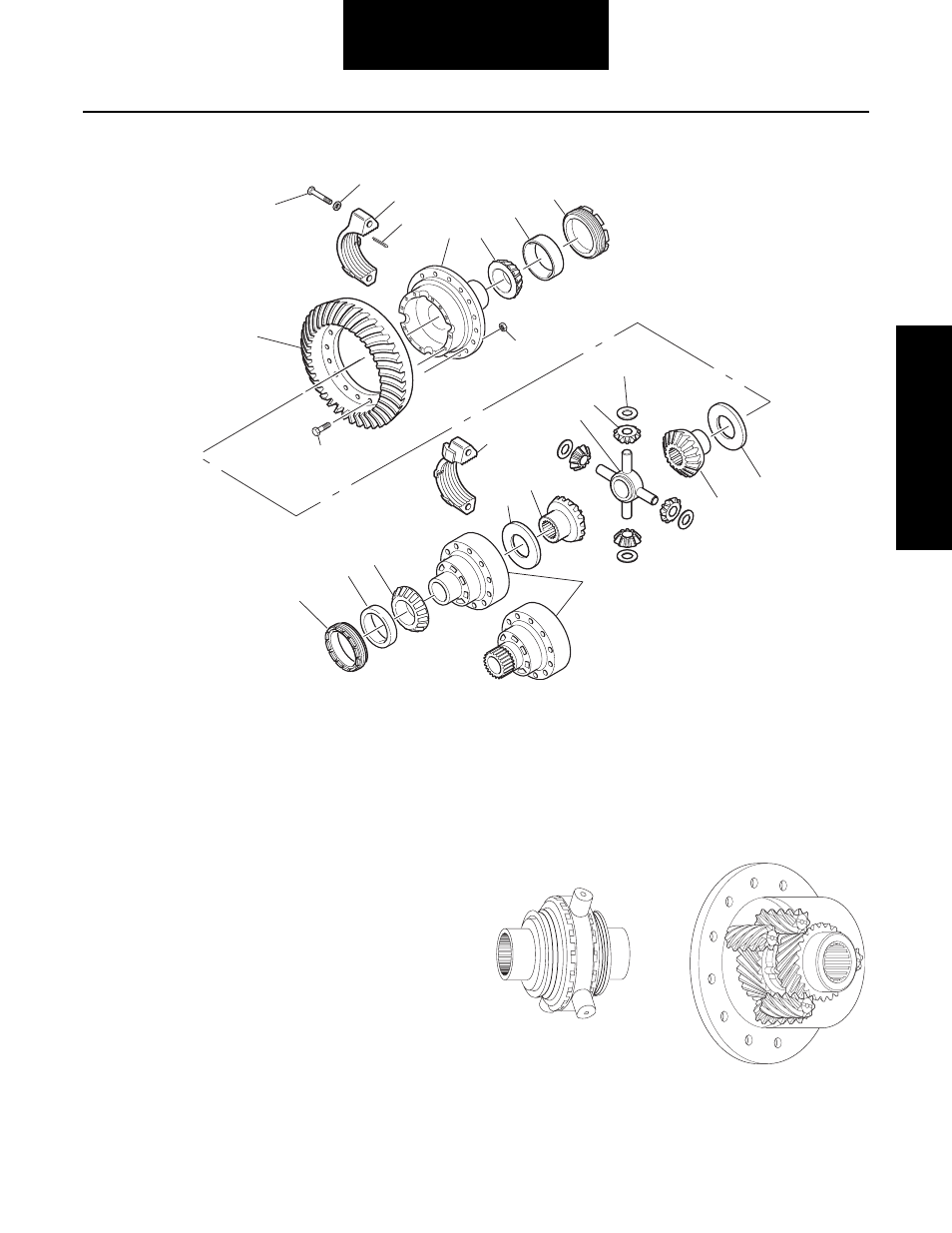

Wheel Differential - Exploded View
1.
Ring Gear
2.
Capscrew
3.
Flat washer
4.
Diff. carrier bearing caps
5.
Cotter pin
6.
Diff. case - LH (flange half)
7.
Bearing cone - flange half
8.
Bearing cup - flange half
9.
Diff. brg. adjuster - flange half
10. Bolt
11. Nut
12. Diff. bearing adjuster - plain half
13. Bearing cup - plain half
14. Bearing cone - plain half
15. Diff. case - RH (plain half)
16. Side gear thrust washer
17. Side gear
18. Diff. spider
19. Side pinion
20. Side pinion thrust washer
Flange Half ( LH )
2
18
17
16
13
19
4
12
16
15
8
1
10
11
9
7
6
4
5
3
17
14
20
No-SPIN
®
Differential
(Optional)
TrueTrac
