59
Parts Identification

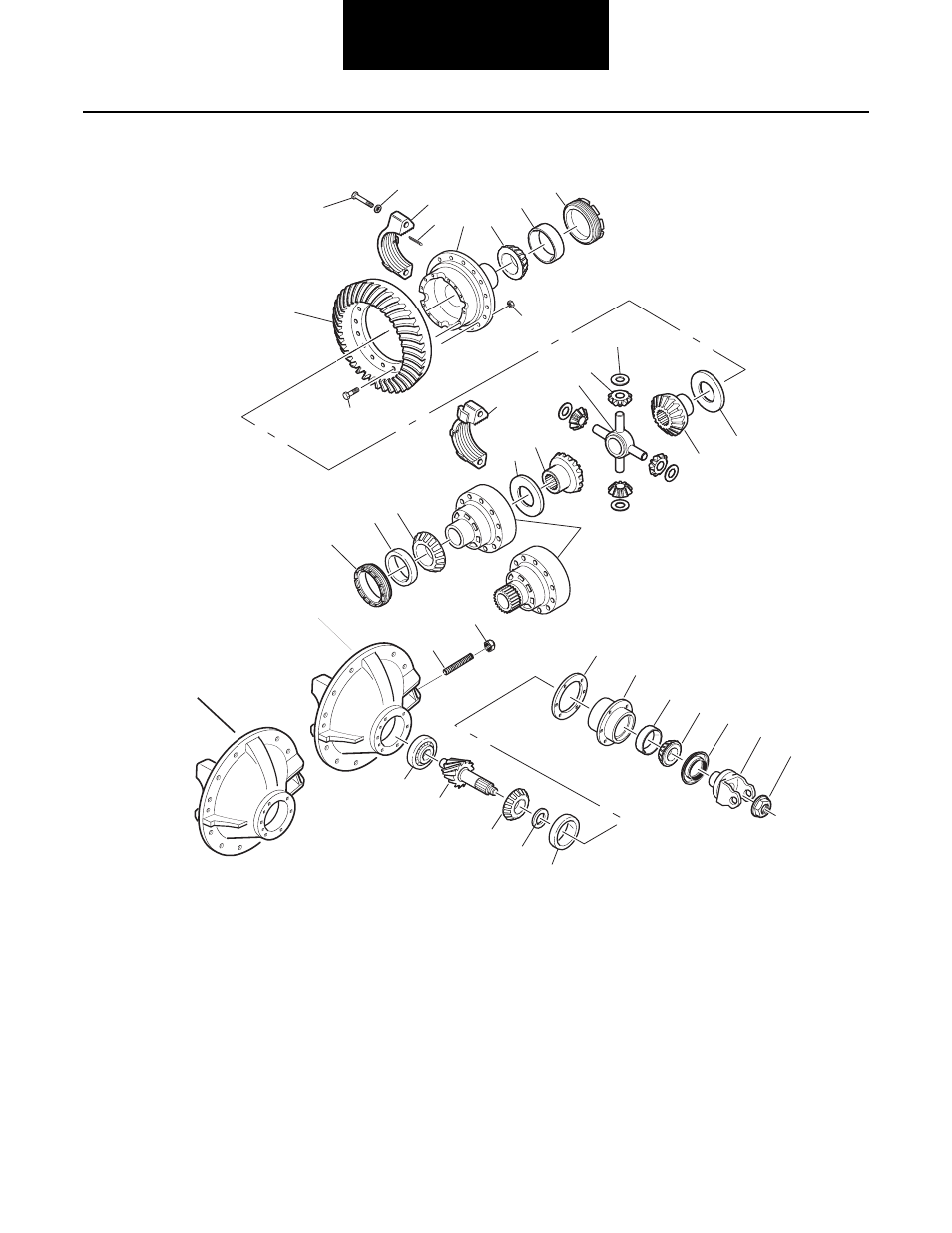

Rear Drive Axle Parts - Exploded View
1— Ring gear
2— Carrier cap bolt
3— Washer
4— Flange half carrier cap
5— Cotter pin
6— Flange half differential case
7— Flange half bearing cone
8— Flange half bearing cup
9— Flange half bearing adjuster
10—Ring gear bolt
11— Nut
12— Plain half bearing adjuster
13— Plain half bearing cup 14—Plain half bearing cone
15— Plain half differential case
16— Side gear thrust washer
17— Side gear
18— Wheel differential spider
19— Side pinion
20— Side pinion thrust washer
21— Side gear
22— Side gear thrust washer
23— Pinion pilot bearing
24— Pinion
25— Inner pinion bearing cone
26— Pinion bearing spacer 27— Inner pinion bearing cup
28— Pinion cage shim
29— Pinion cage
30— Outer pinion bearing cup
31— Outer pinion bearing cone
32— Pinion seal
33— Pinion yoke
34— Pinion nut
35—R-head carrier or rear carrier
36—Thrust bolt
37—Thrust bolt jam nut
2
18
21
22
36
37
23
24
25
26
27
28
29
30
31
32
33
34
13
19
4
12
16
8
1
10
11
9
7 6
4
5
3
17
14
15
20
35
35
