Spicer Single Drive Axles Service Manual: Single Reduction & Single Reduction with Differential Lock User Manual
Page 25
22
Pinion Assembly
Ser
vice Procedure

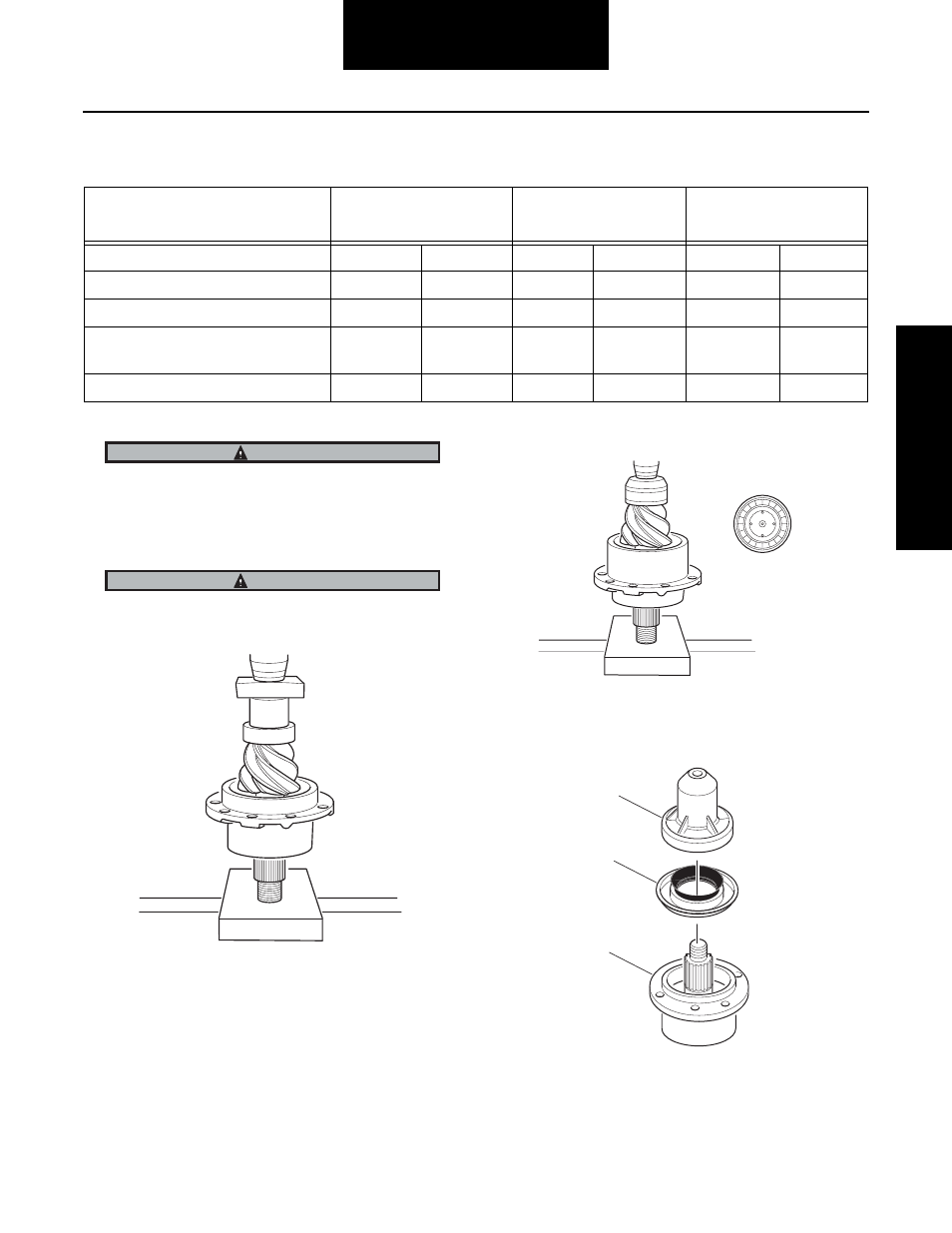

Use the correctly sized spacer. Do not use shim stock or
grind spacers. These practices can lead to loss of bearing
preload and gear or bearing failure
8.
Press pilot bearing on pinion.
To prevent bearing damage, use suitable sleeve that only
contacts the inner race of bearing cone.
9.
Stake pilot bearing using staking tool. This is essen-
tial to retain the bearing.
10. With pinion installed and bearing preload adjust-
ment complete, install oil seal. Use properly sized
installation tool as described on the next page to pre-
vent distortion.
1 - Tool
2 - Seal
3 - Bearing cage
Axle Model
Pinion Nut Torque
Press Loads
Spring Scale Adjustments
Lbs.- ft.
N•m
Tons
Metric Tons
lbs.
N•m
15040, 19050, 19055
376 - 461
510 - 625
12 - 13
11 - 12
6 - 13
25 - 58
17060, 19060, 21060, 22060
575 - 703
780 - 953
14 - 15
13 - 14
6 - 14
25 - 60
21065, 22065, 22080
542 - 664
735 - 900
15 - 16
14 - 15
5 - 11
23 -52
21080, 21090, 23070, 23080, 23085,
23090, 26080, 26085, 26090,
789 - 966
1070 - 1310
18 - 19
16 - 17
4 - 10
18 - 43
23105, 26105, 30105
840 - 1020
1140 - 1383
18 - 19
16 - 17
4 - 10
18 - 43
CAUTION
CAUTION
Stake Pattern
1
2
3
