6
Steer Axle Components
King Pin Kit Contents
328342 - E1000 - E1320 I,W BRONZE
815284 Knuckle Pin 2
1320HD100 Bushings-Bronze 4
815237 Seals 4
816239 Drawkeys 2
971011 Thrust Bearing 2
971370 Knuckle Cap 4
971010 Foam Insert 4
819790 Grease Fitting 4
817493 Shim .005 4
817494 Shim .010 2
817492 Shim .030 2
1004804 Locknut 2
328343 - E1460 I,W BRONZE (After 2000)
817452 Knuckle Pin 2
1460HD100 Bushings-Bronze 4
820518 Seals 4
816239 Drawkeys 2
220HC104 Thrust Bearing 2
971370 Knuckle Cap 4
971010 Foam Insert 4
819790 Grease Fitting 4
817493 Shim .005 4
817494 Shim .010 2
817492 Shim .030 2
067592 Locknut 2
328344 - E1000 - E1320 I,W DX GARLOCK
815284 Knuckle Pin 2
1329HD101 Bushings-DX 4
815237 Seals 4
816239 Drawkeys 2
971011 Thrust Bearing 2
971370 Knuckle Cap 4
971010 Foam Insert 4
819790 Grease Fitting 4
817493 Shim .005 4
817494 Shim .010 2
817492 Shim .030 2
1004804 Locknut 2

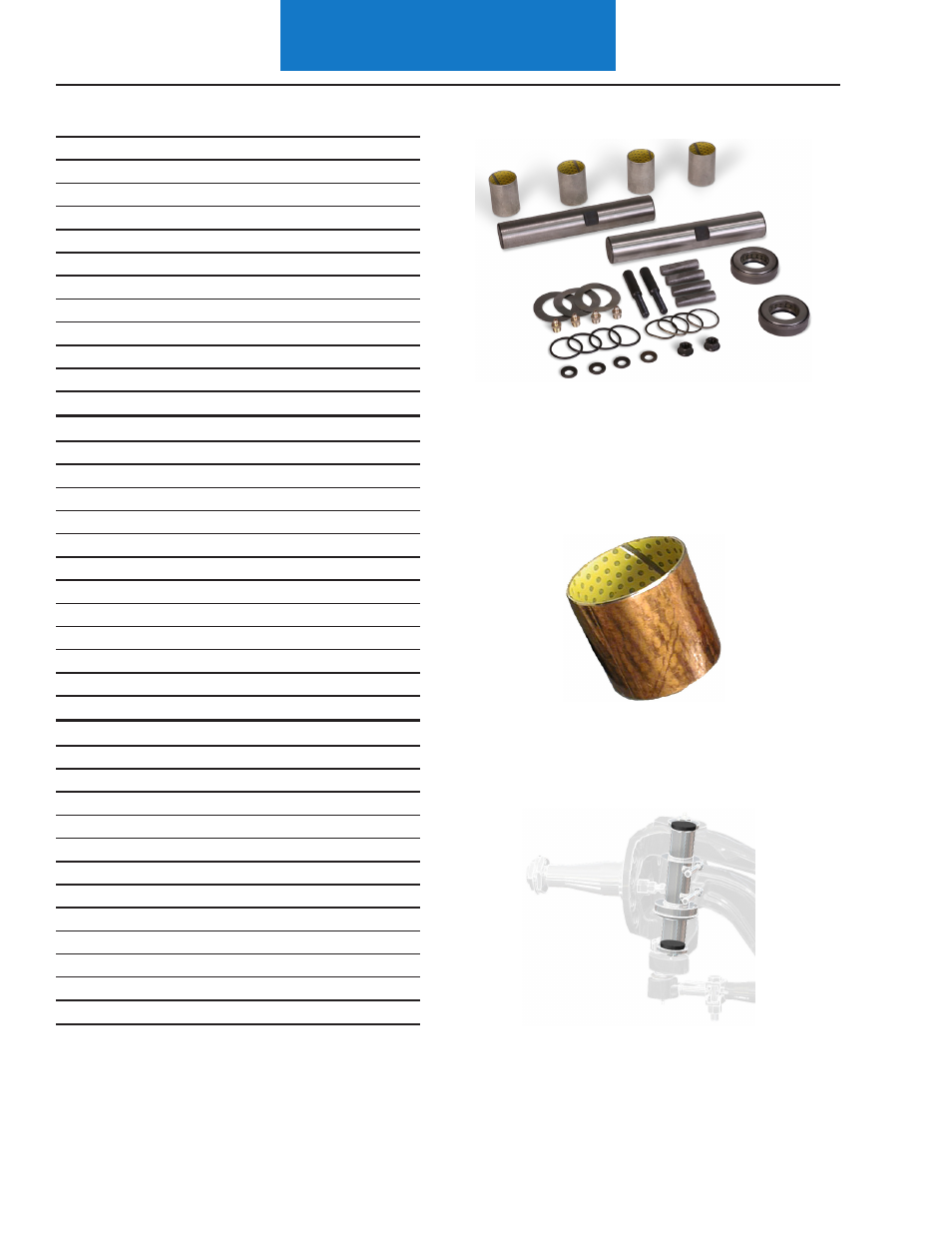

Example of a typical E Series Kit - Single Drawkey
DX GARLOCK BUSHING EXTENDED LIFE MATERIAL
The Spicer® steer axle design excludes contamination
and retains grease far better than competitive designs.
This is accomplished through a patented, compressible
insert that prevents pressure and vacuum typically found
in competitive steer axle kingpin joints. The result is better
lubrication retention and reduced contamination of the
Kingpin joint for longer life and trouble-free performance.
