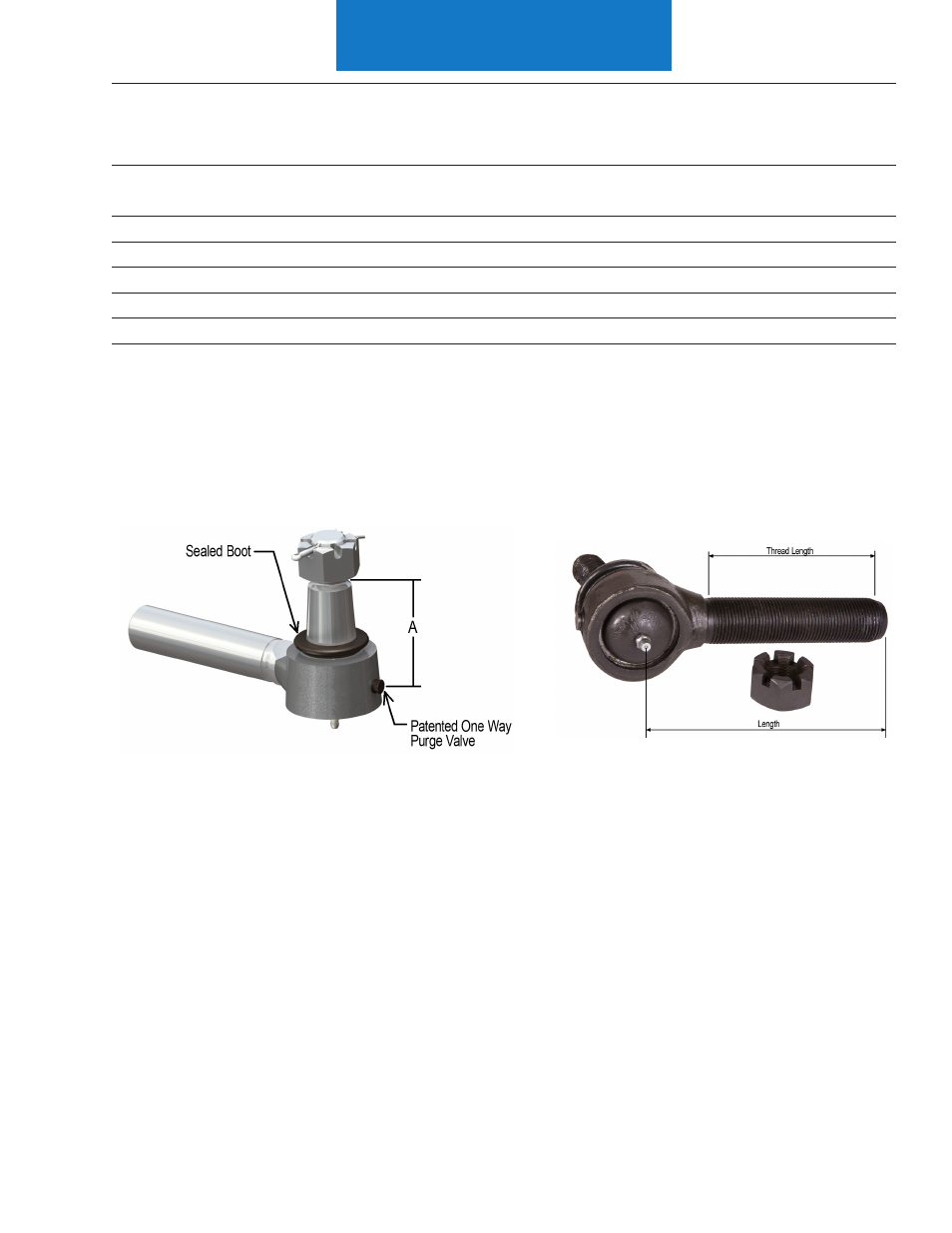

Tie Rod Ends
(A)
Tie Rod End Stud Length
Length Ctr Dana Steer
Left Right Ball Ctr Rod Socket to Design Axle
Hand Hand to End (in.) Type Thread Length Threads Taper Type Models
E Series Tie Rod Ends
817018 817019 6.188 Straight 1 1/8-12 UNF2A 4.088 2.22 1 to 8 Purge Valve (2) I, D, & E Series
818472 818471 7.500 Straight 1 1/4-12 UNF2A 5.250 2.40 1 to 8 Purge Valve (2) I & D & E Series
971714 971715 9.260 Dropped 1 1/4-12 UNF2A 4.130 2.47 1 to 8 Purge Valve (2) E Series
971748 971749 14.280 Dropped 1.625-12UN-2A 4.750 2.42 1.5 to1 ft Purge Valve (2) E Series
970579 970580• 9.260 Dropped 1.25 12 UNF2B 4.250 © 1 to 8 Non Purge Valve D & E Series
970701 970702 6.000 Straight 1.125-12 UNF2B 4.320 -1.000 1 to 8 Non Purge Valve E Series
• Part is discontinued
 Part is available until supply is exhausted
© Replaced by 971714 &715
(1) Crosslink obsolete
(2) Long Life tie rod ends
