Spicer DRIVELINE COMPONENTS CATALOG SLIP YOKE ASSEMBLIES - Manual (Page 14)

J300P-3
Splined Sleeves

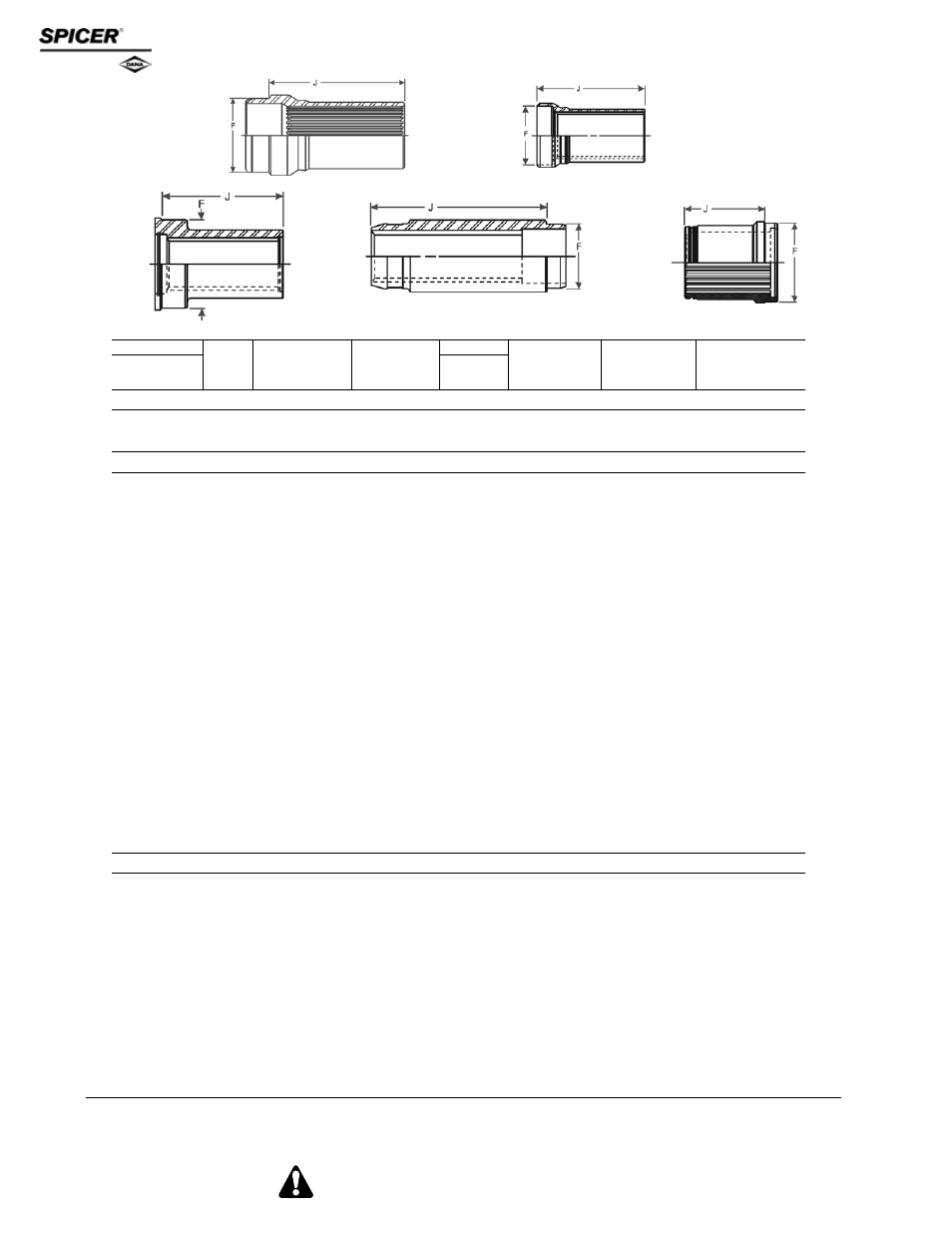

Style 3 Style 4 Style 5
Style 1
Style 2
End of Spline Style Tube Yoke Mates w/ Butt Splined Sleeve Slinger Assembly
to Weld Part Number Part Number Diameter Detail Part Number Part Number
J Fits Tube/ F Slip Sleeve
Important: See Safety Information in General Information Section (J300P-GI)
14 Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
* = Tube Length
Important: See Safety Information in General Information Section (J300P-GI)
SPL140 SERIES
3.071-30 Involute Spline
6.713 1 100-30-3 140-82-21X 3.937 140-55-11 232755 140-55-21X
SPL170 SERIES
3.053-30 Involute Spline
8.539 1 36-30-102 5010631 4.243 — — 170-55-10626
Sleeve Only-No Assembly
8.539 1 36-30-102 5010631 4.243 — — 5010626
5010626 was replaced by 170-55-10626; Sleeve Only-No Assembly
11.043 2 5013415 5010631 4.104 — — 170-55-13487-1
Sleeve Only-No Assembly
11.043 2 5013415 5010631 4.104 — — 5013487-1
5013487-1 was replaced by 170-55-13487-1; Sleeve Only-No Assembly
3.465-32 Based On 34 Involute Spline
5.137 2 170-28-37 170-82-191X 4.344 — — 170-55-151
Sleeve Only-No Assembly
5.826 2 — 170-28-37 4.350 — — 170-55-11368
Sleeve Only-No Assembly
5.826 2 — 170-28-37 4.350 — — 5011368
Sleeve Only-No Assembly
7.205 2 170-28-37 170-82-131X 4.346 — — 170-55-81
Sleeve Only-No Assembly
7.590 2 170-28-37 170-82-101X 4.346 — — 170-55-61
Sleeve Only-No Assembly
7.972 1 110-30-5 170-82-71X 4.350 170-55-11-2 232700 170-55-21-2X
9.153 1 110-30-5 170-82-61X 4.350 170-55-11-1 232700 170-55-21-1X
SPL250 SERIES
3.858 (98.0mm)-36 Based On 38 Involute Spline
4.134 1 — 250-28-37 4.744 — — 250-55-61
Sleeve Only-No Assembly
6.909 1 120-30-* — 4.744 250-55-21 232696 250-55-31X
Fits all 120-30 tubes
