5.2 Network Setting
5.2.1 TCP/IP
(i) IP Address

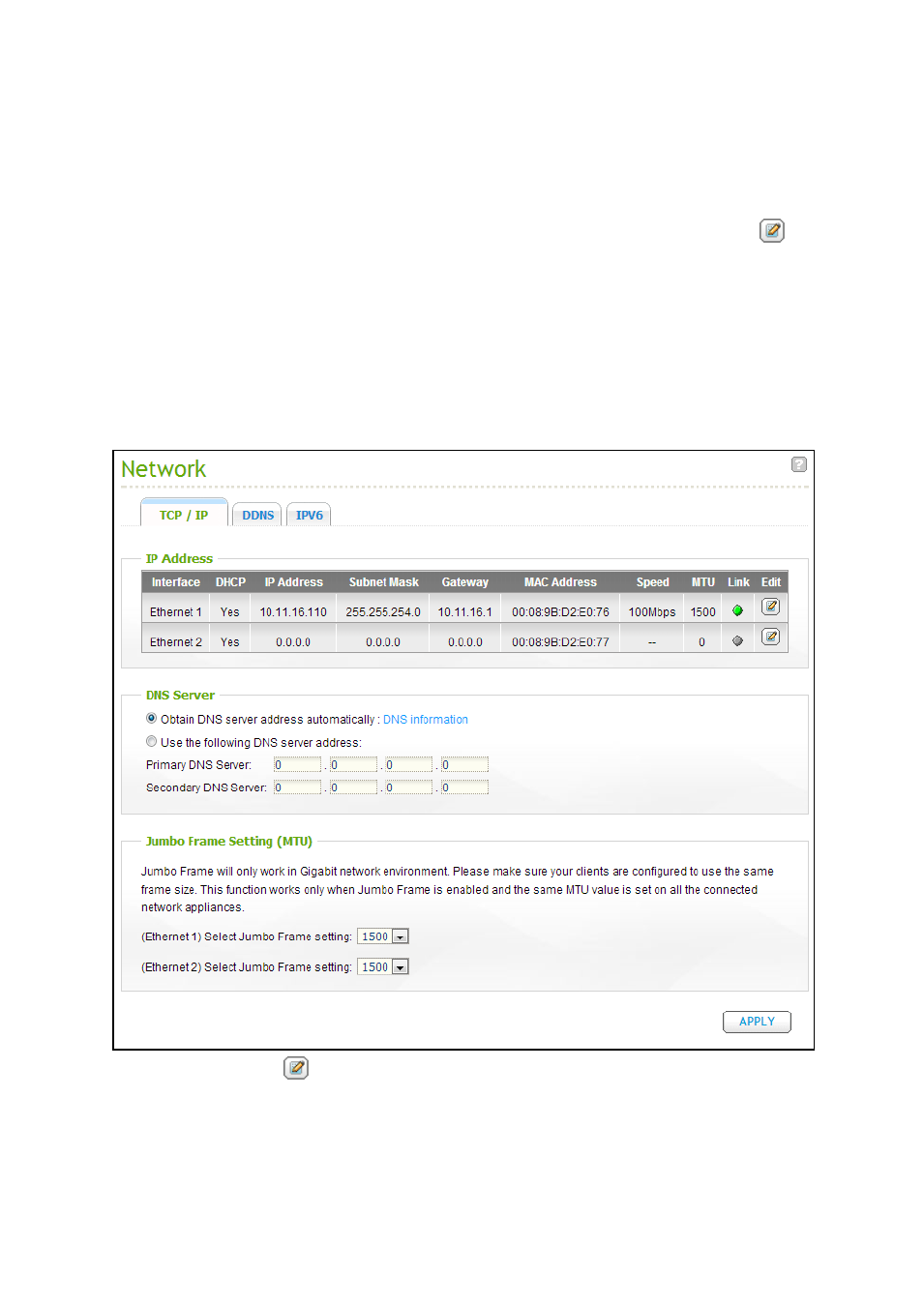

Configure the TCP/IP settings of the CMS Server on this page. Click the Edit button ( ) to
edit the network settings (TCP/IP Property, as described in the following paragraphs). For
the CMS Server with two LAN ports, users can connect both network interfaces to two
different switches and configure the TCP/IP settings. The CMS Server will acquire two IP
addresses which allow access from two different subnets. This is known as multi-IP
settings. When using the QNAP Finder to detect the CMS IP, the IP of the Ethernet 1 will be
shown in LAN 1 only and the IP of the Ethernet 2 will be shown in LAN 2 only.
Click the Edit button ( ), as described above to open the “TCP/IP Property” page and
configure the following settings:
