IP Director Version 4.3 – User Manual – Part 1: Introduction
EVS Broadcast Equipment
Issue 4.3.C

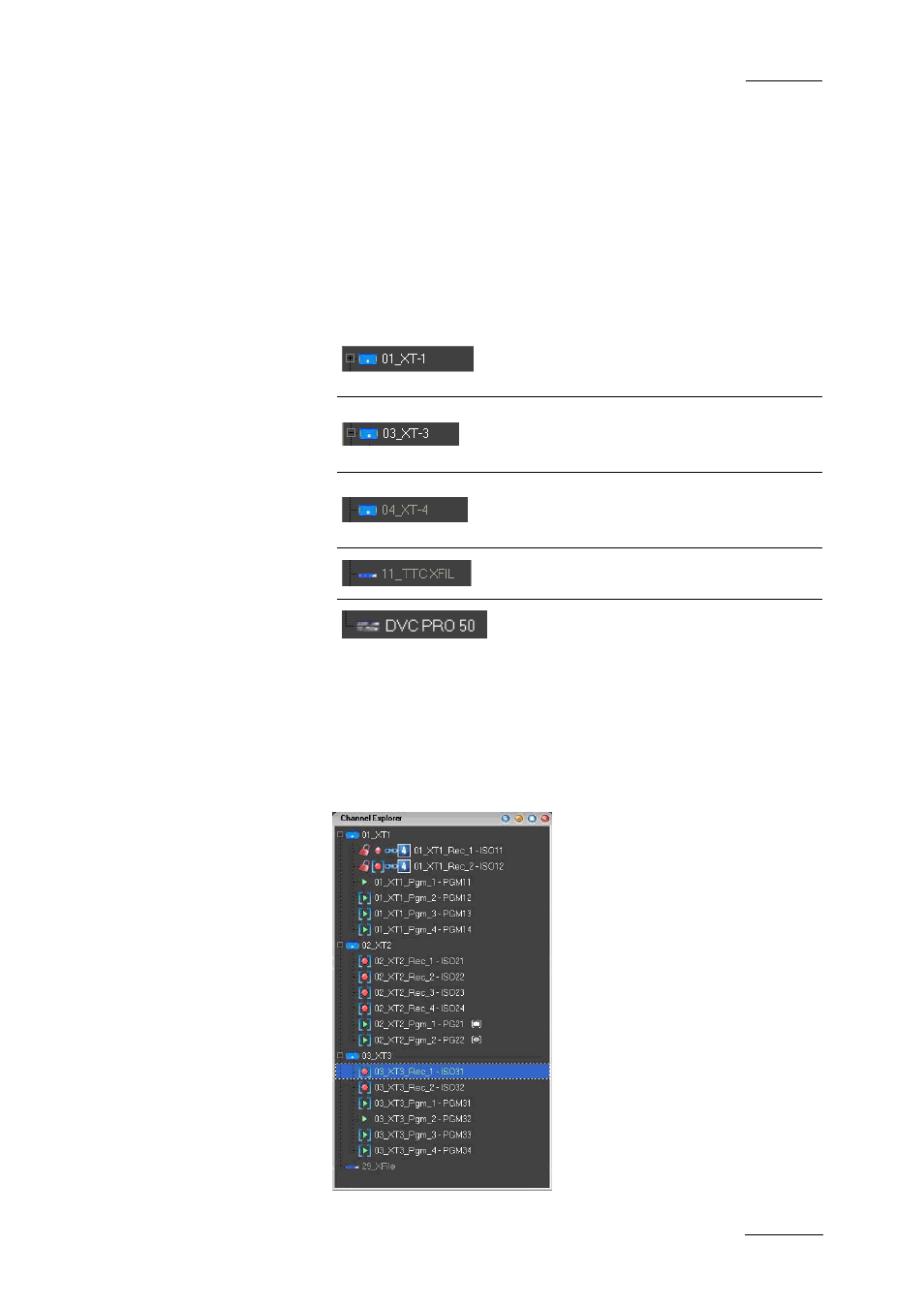

3.2 STATUS DISPLAYS
3.2.1 XT S
ERVER STATUS
The primary line for each device in the Channel Explorer shows
the machine status, its name and an icon representing the device
type
XT server connected on the XNet and
channels available for use with IP
Director
XT server connected on the XNet and
available channels displayed in its
sub menu
XT server connected on the XNet but
has no RS-422 link to a workstation
for channel control by IP Director
XFile connected on the XNet
VTR connected on the XNet
3.2.2 XT S
ERVER
C
ONFIGURATION
By expanding the tree on each machine its channel configuration
can be seen together with its control status, name, lock status
and gang status
45
