2.4 LAYOUT PANEL
2.4.1 I
NTRODUCTION

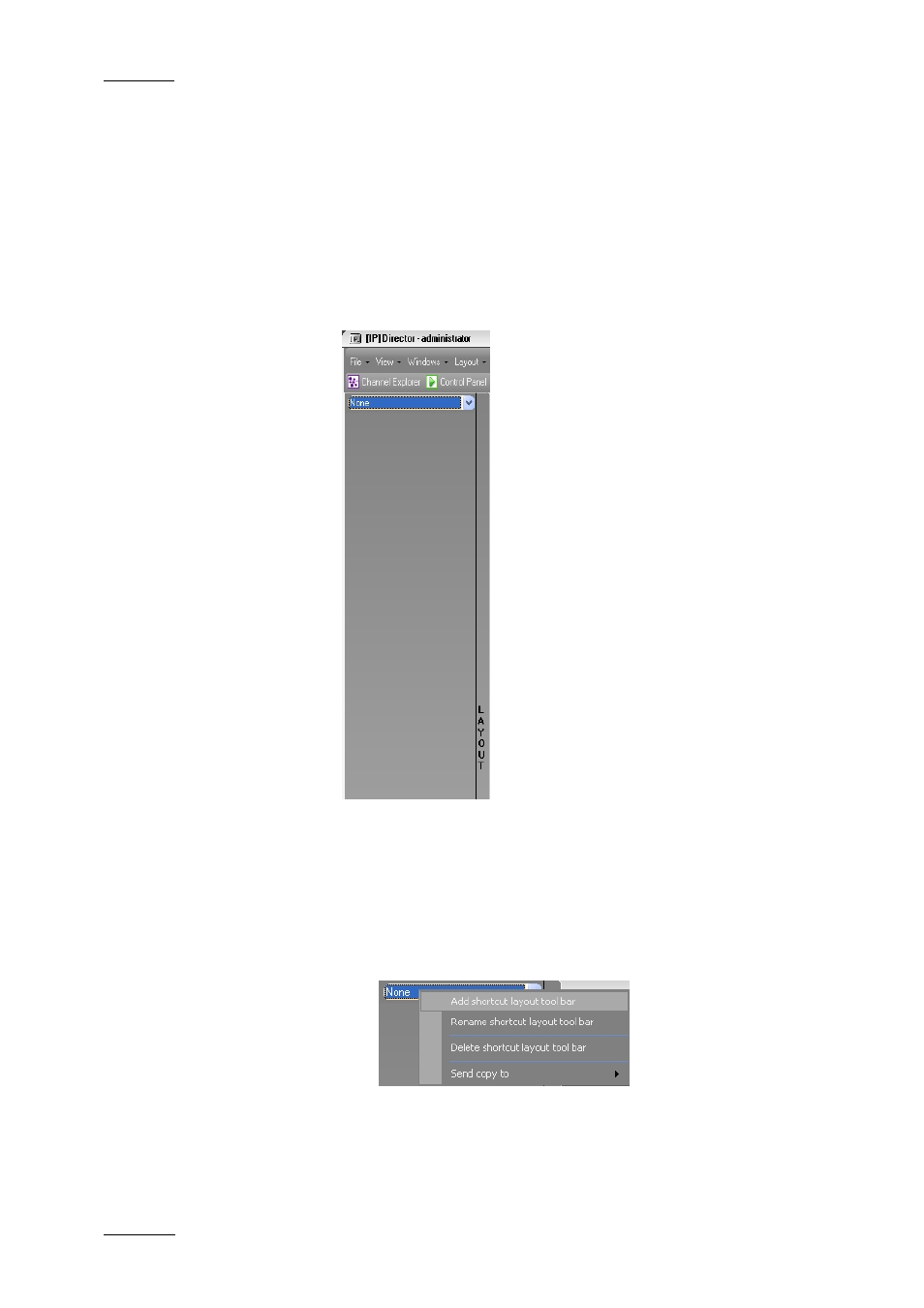

The Layout panel allows single-click access to your saved
Layouts.
It opens when you click the Layout tab on the left screen border.
The Layout panel is empty when you
first open it.
Several Layout toolbars can be defined
and loaded from the drop-down list box
at the top of the Layout panel.
Each toolbar can contain a number of
layouts. These layouts are called from
the shortcuts displayed in the Layout
panel.
The procedures for creating Layout
toolbars and adding items to the
toolbars are explained in detail below.
2.4.2 H
OW TO
C
REATE A
L
AYOUT
T
OOLBAR
To create a Layout toolbar, proceed as follows:
1. Right-click the blue drop-down combo box and select Add
shortcut layout toolbar.
2. Enter a name for the new toolbar:
22
