IPDirector Version 5.8– User Manual – Part 5: Playout – Player Control Panel
EVS Broadcast Equipment – July 2010
Issue 5.8.B
83
2. Select Edit Config.

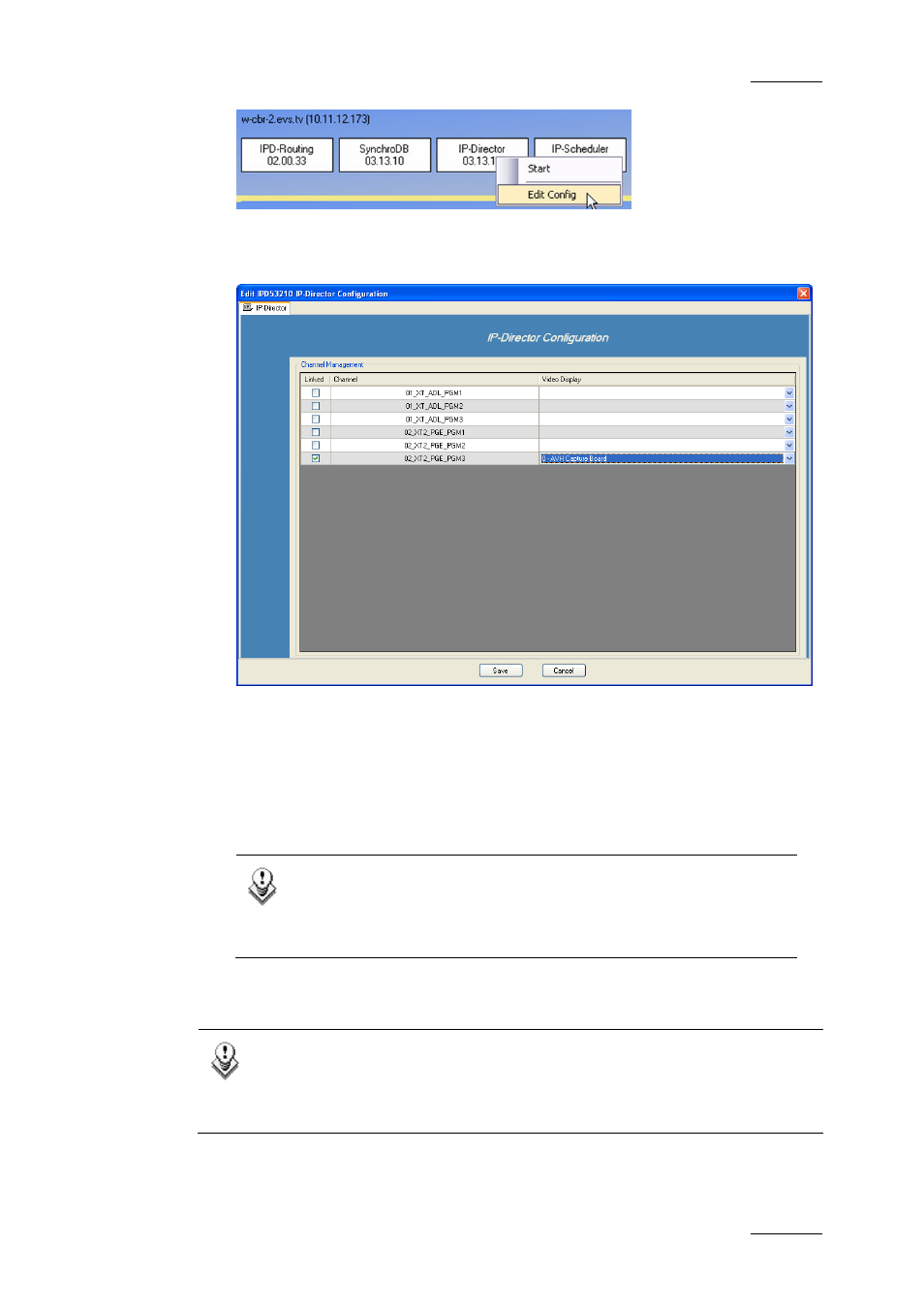

The IPDirector Configuration window opens:
This window allows you to link a player channel of one specific EVS video
server to one Video Display (Video Board).
3. Check the box in the Linked column corresponding to the player channel you
want to link to the video display.
4. Select which video display device it must be linked to from the drop down list
in the video display column.
Note
The linked box can be checked without being linked to a Video
Display. For example, this is used when an external monitor is
connected at your workstation.
5. Press Save.
Note
All these parameters are local to the IPDirector workstation and must
be set independently on all IPDirector Workstations using the Remote
Installer tool.
