3.3 LOGICAL MANAGER
3.3.1 I
NTRODUCTION

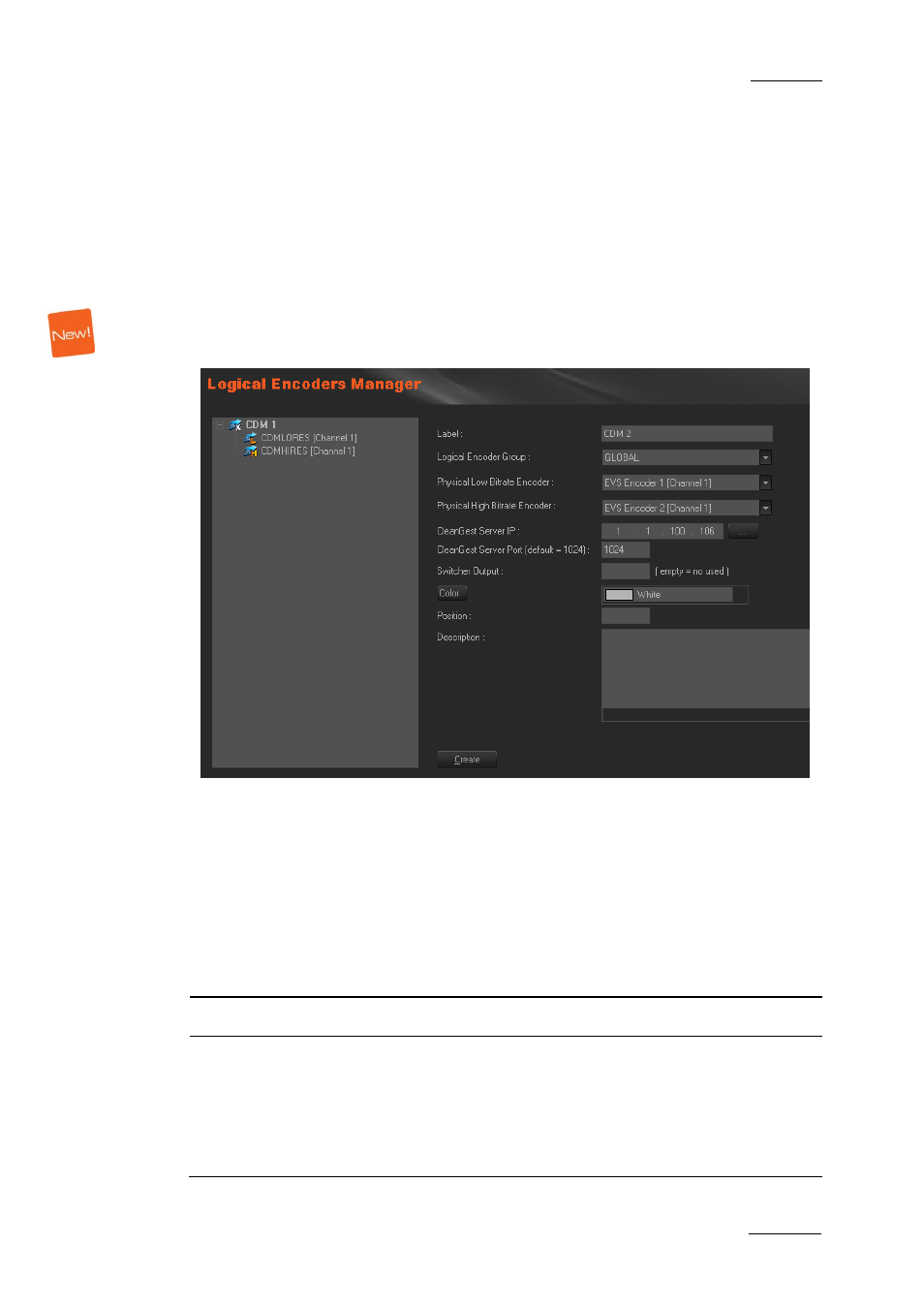

When you click the Logical Manager button, the Logical Encoders Manager
window is displayed in the Work area, allowing you to logically group physical
encoders as being part of the same channel. Possible configurations use two
encoders in hi-res and lo-res or one encoder in hi-res only. With a XEDIO I/O
encoder model, lo-res and hi-res are recorded by the same encoder.
3.3.2 C
REATING
L
OGICAL
E
NCODER
To create and configure a logical encoder, complete the following fields and then
click on the Create button.
The logical encoder name is added to the list on the left side of the window and
the name of its corresponding physical encoders appears underneath.
Field Description
Label Give a name to the logical encoder.
Logical Encoder
Group
Select the group you want to link to the logical encoders.
This will determine the Ingest Organizer workstation which
will see the encoders and this is used to restrict the access
to some encoders by the Ingest Organizer.
The GLOBAL group makes the encoders visible to all the
Ingest Organizer workstations.
