V
IDEO AND
A
UDIO
B
ARS

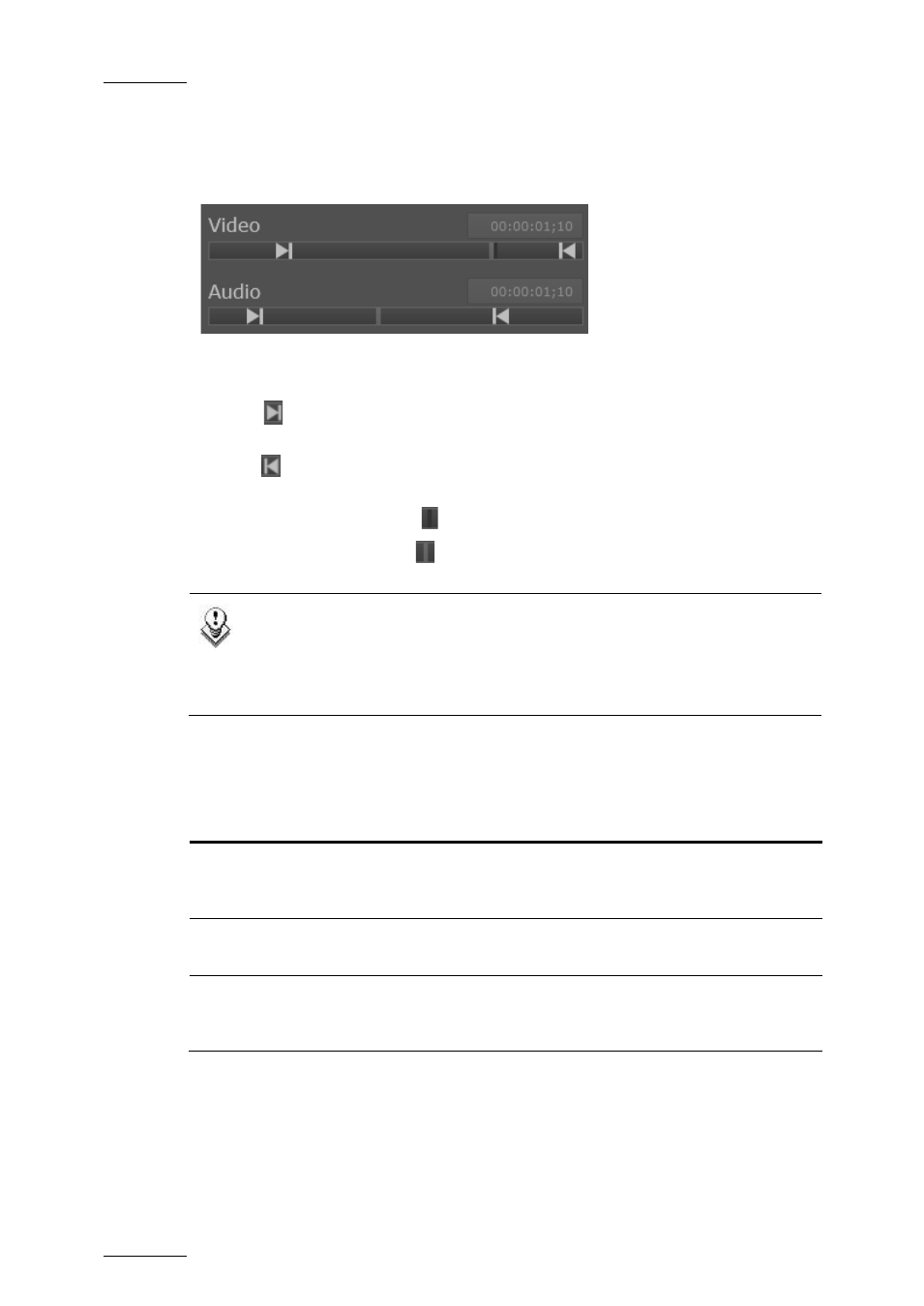

The video and audio bars represent the playback position in the corresponding raw
material.
The bars and the displayed elements have the following meaning:
• The bars represent the raw material.
• The sign represents the IN point. It will be positioned relative to the IN
field value in the raw material.
• The sign represents the OUT point. It will be positioned related to the OUT
field values (separate fields for audio and video) in the raw material.
• The black vertical marker represents the loop point.
• The grey vertical marker represents the current position in the raw material
during playback.
Note
If the GX clip contains a nested loop (the loop point does not start on the
TC IN point), the playback marker will move between the IN and OUT
points for the first pass. Then, for each nested loop, the marker will just
move through the area between the loop point and the OUT point.
5.5.8 C
OMMAND
B
UTTONS IN THE
E
DIT
GX C
LIP
W
INDOW
Button Description
Create New Allows users to save the clip currently being edited as
a new clip, when a new IdVar and Id8 have been
defined.
OK Saves and validates the general, video and audio
settings defined.
Cancel Discards all modifications performed on general, video
and audio settings, and returns back to the settings
defined when the user opened the window.
