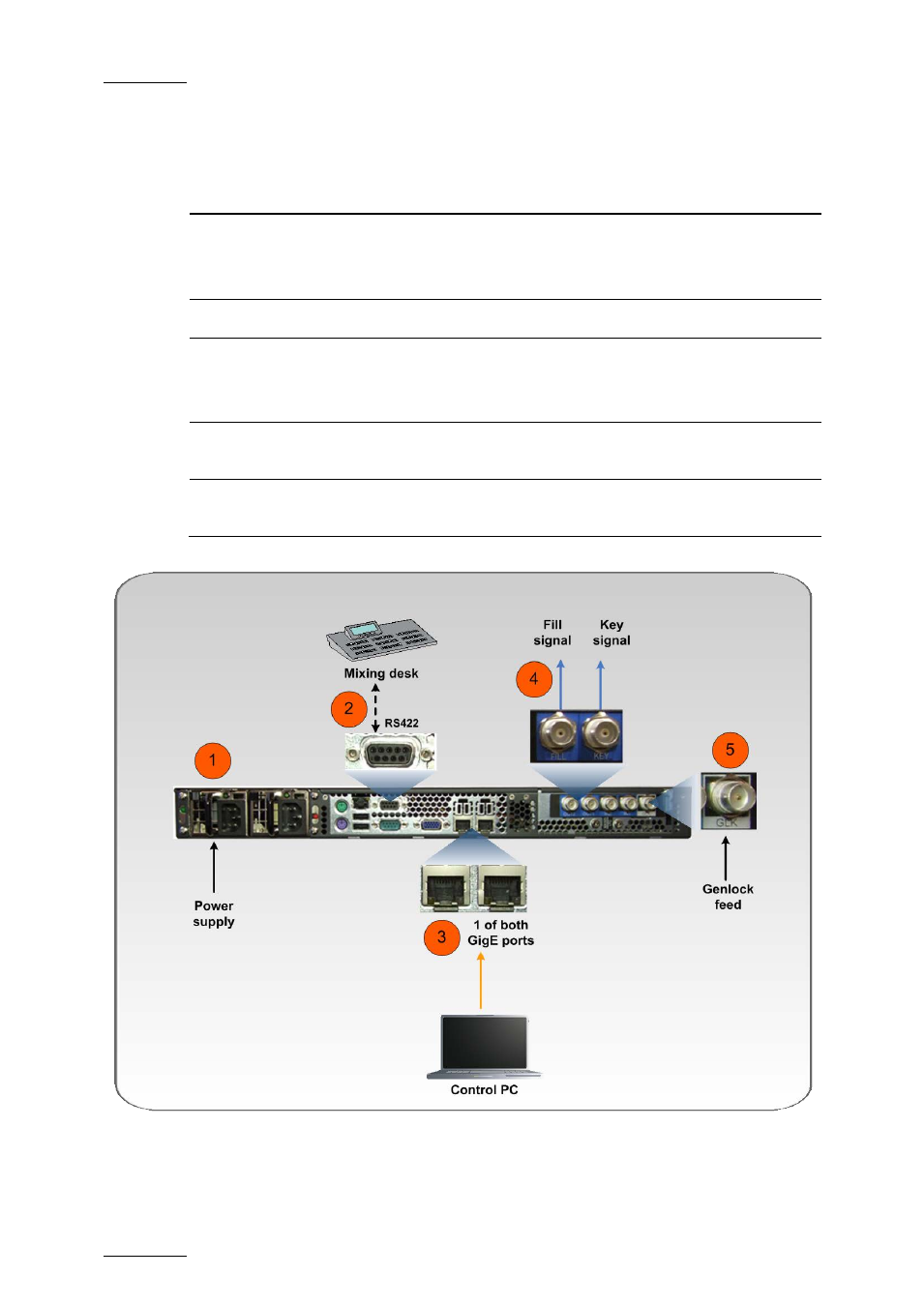

The schema below shows how the GX server needs to be cabled before switching
it on. The table hereafter briefly describes the connections highlighted on the
schema:
# Description
1. Connect the power supply to mains.
Connect the second power supply to allow automatic power switching in case
of failure.
2. Connect the VDCP client to the RS422 port on the GX server.
3. Connect the GX server to the local area network via one of the GigE ports.
This will allow users to connect remotely to the GX server via the GX web
interface.
4. Connect the KEY and FILL connectors to the video equipment that will
perform the keying of the GX outputs.
5. Connect the Genlock feed to the GLK connector to make sure the video
signals from the GX server are synchronized in your setup.
The mouse, keyboard and VGA connectors at the back of the server also allow
users to directly connect to the server, mainly to perform tests and checks.
