Issue 1.0.C GX server – Version 1.0 – User’s Manual
EVS Broadcast Equipment – February 2011
28
The supported source files (TGA, TIFF, WAV files) included in the folder selected
will be displayed on the right hand box in the Import area.
5.2.4 H
OW TO
C
ONNECT AND
D
ISCONNECT A
N
ETWORK
D
RIVE
To map a network drive onto the GX server, proceed as follows:
1. Click the + symbol at the top of the drive tree structure.

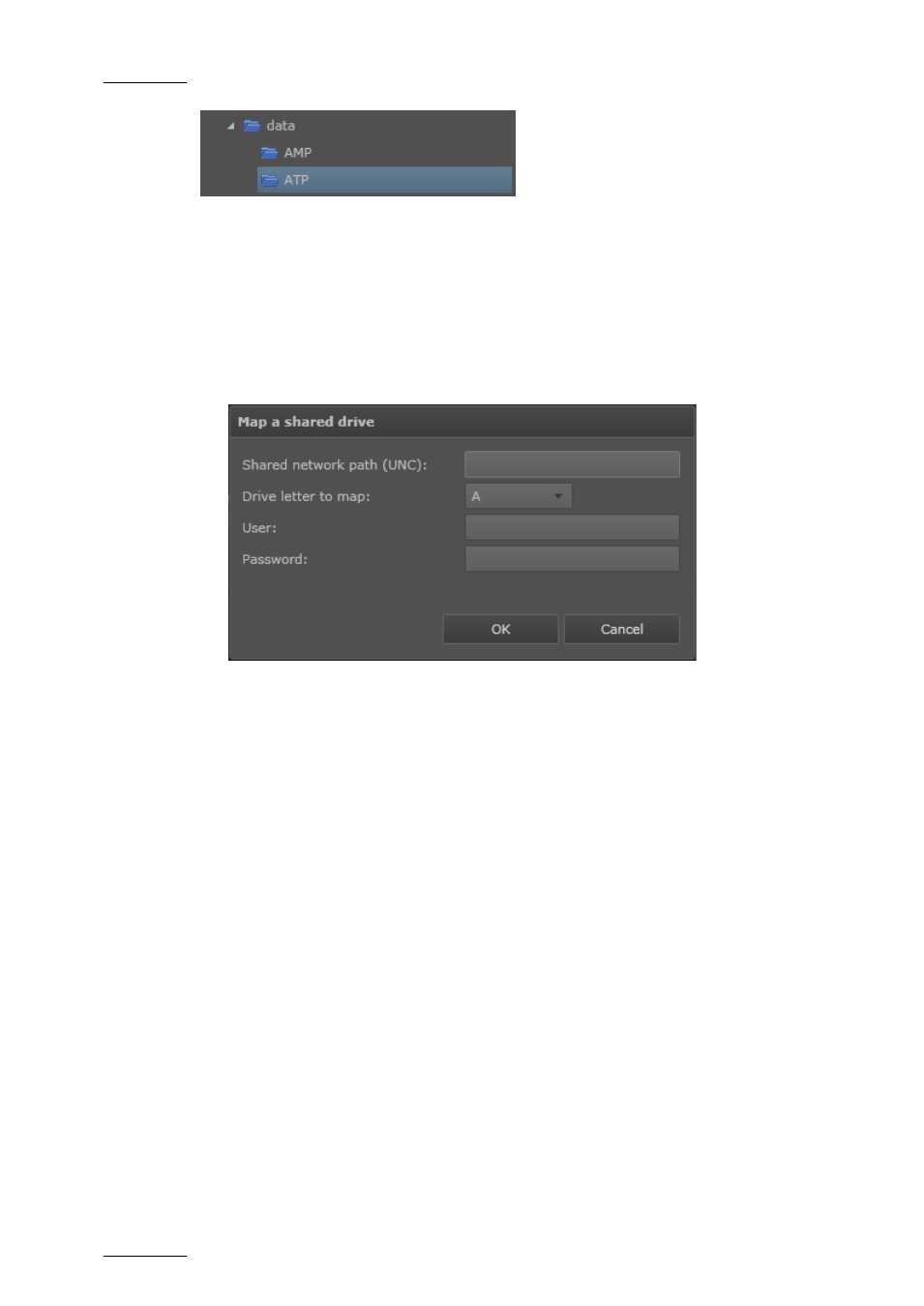

The Map a shared drive window opens.
2. Type the full path to the folder to be mapped in the Network Path field, using
the following pattern: \\[ComputerName]\[FolderName].
3. Select a drive letter to be associated to this mapped drive.
4. Type an existing Windows user name to access the given machine in the User
field, using one of the following patterns:
o [Doma in]\ [Us erna me]
or username@domain when the target
computer and username are part of a domain.
o [Comp uter Nam e]\[ Use rnam e]
or username@compurtername
when username is a local user account on the target computer.
5. Type the Windows password corresponding to this user name in the Password
field.
6. Click OK.
The network drive is mapped to a drive letter, and is now available in the drive
tree structure.
To disconnect the network drive, select it, click the – symbol at the top of the
drive tree structure and confirm the disconnection.
