Line Keys and Softkeys
41-001452-00 Rev 01 – 06.2013
72
Configuring a BLF List Key
The BLF List function can be configured on the 6737i using the Aastra Web UI only.
If you set a key to use BLF/List, you must also enter a BLF List URI at Operation->Softkeys and XML->Services. The BLF
List URI is the name of the BLF/List defined on the BroadSoft BroadWorks Busy Lamp field page for your particular user. For
example, sip:[email protected]. The value of the BLF/List URI parameter must match the list name configured. Otherwise,
no values display on the 6737i screen and the feature is disabled.

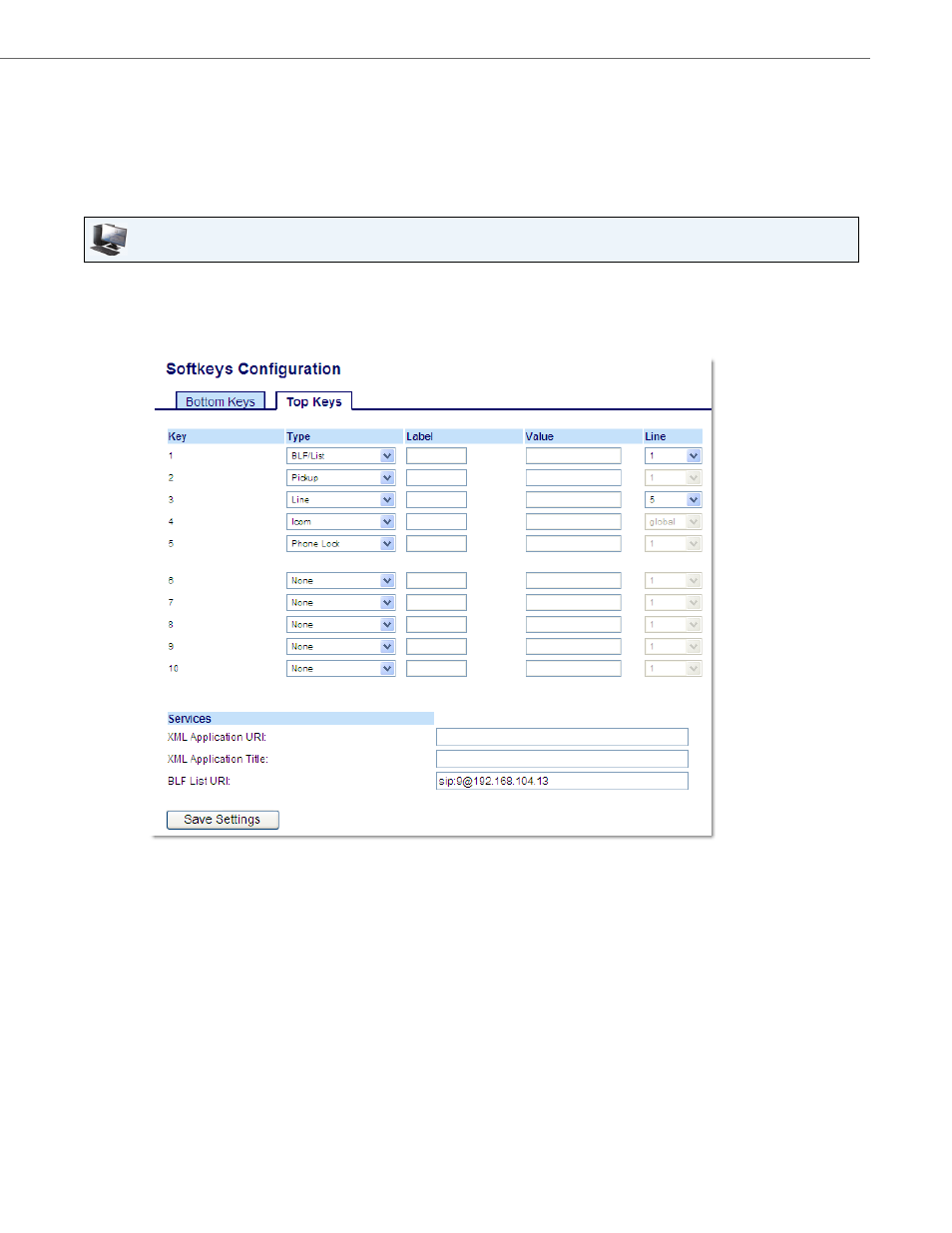

Use the following procedure to set a key to function as "BLF/List". The procedure shows the softkey screens as an example.
Aastra Web UI
1. Click on Operation->Softkeys and XML.
or
Click on Operation->Expansion Module .
Softkeys
2. Select from “Key 1” through “Key 10” on the Top keys.
or
Select from "Key 1" through "Key 20" on the Bottom keys.
3. In the "Type" field, select "BLF/List" (BroadSoft BroadWorks).
4. In the "Line" field, select a line number that is actively registered to the appropriate SIP proxy you are using. Valid
values are:
• Global
• 1 through 9
Note:
The "Label" and "Value" field are not required. The BroadWorks BLF/List name is configured in the "BLF List URI" field
instead.
