ASRock X79 Extreme4 - Manual (Page 33)

33
ASRock X79 Extreme4 Motherboard
English

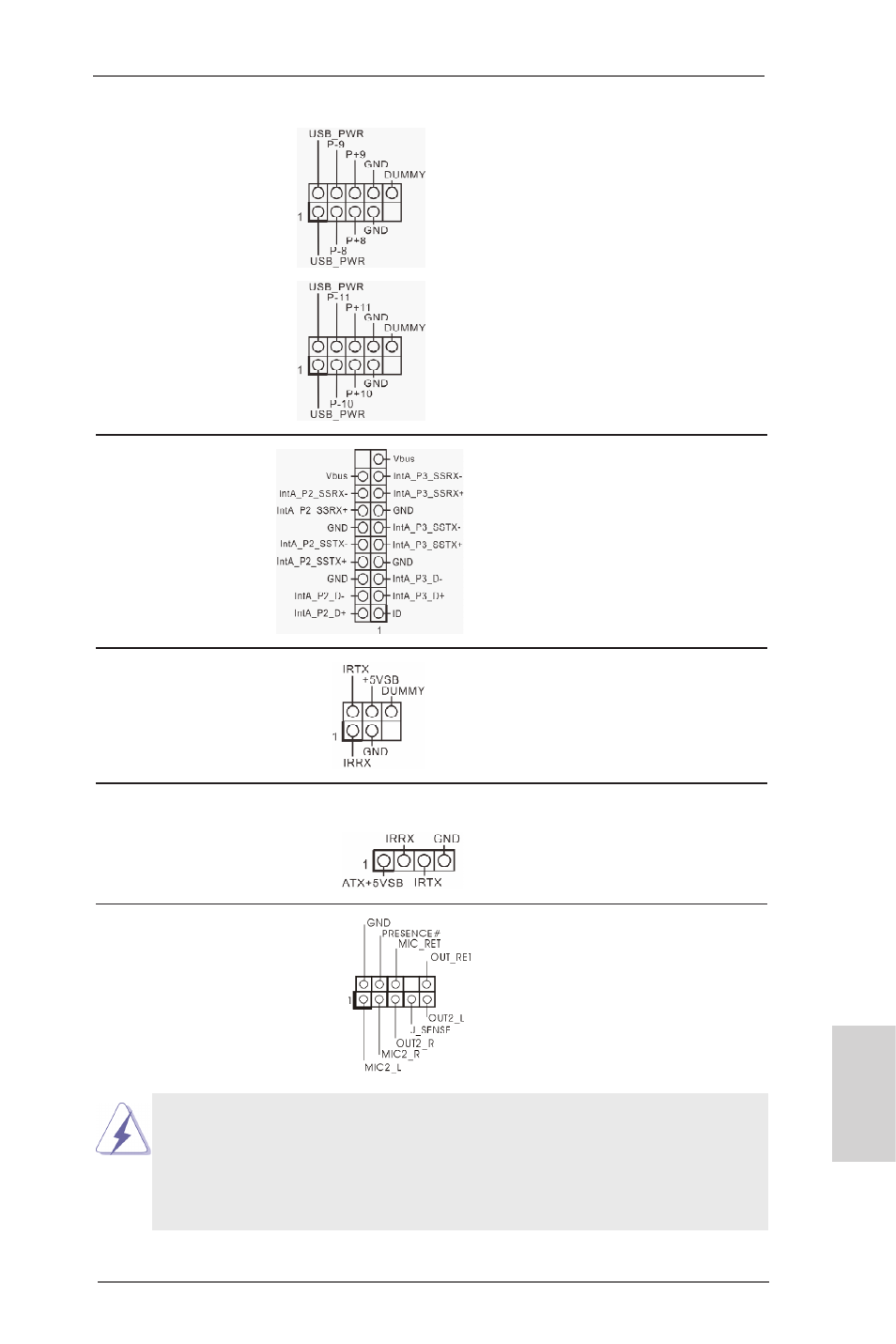

Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.2 No. 36) convenient connection and
control of audio devices.
(9-pin USB_8_9)
(see p.2 No. 29)
(9-pin USB_10_11)
(see p.2 No. 28)
Infrared Module Header This header supports an
(5-pin IR1) optional wireless transmitting
(see p.2 No. 33) and receiving infrared module.
USB 3.0 Header Besides two default USB 3.0
(19-pin USB3_2_3) ports on the I/O panel, there is
(see p.2 No. 10) one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB
3.0 ports.
Consumer Infrared Module Header This header can be used to
(4-pin CIR1) connect the remote
(see p.2 No. 31) controller receiver.
1. High Definition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
