ASRock P75 Pro3 - Manual (Page 23)

23
ASRock P75 Pro3 Motherboard
English

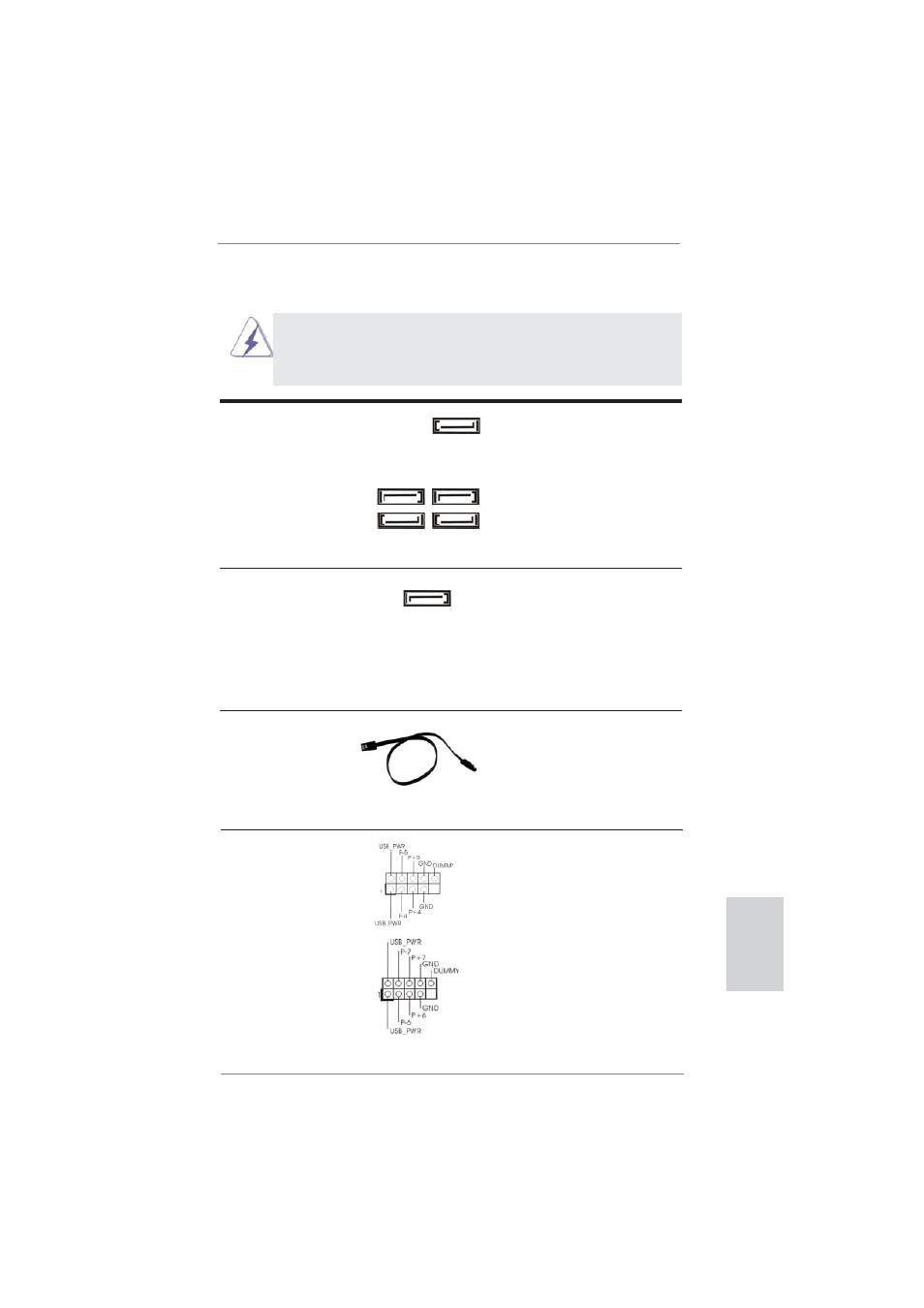

2.9 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA2 Connectors These fi ve Serial ATA2 (SATA2)
(SATA2_1: see p.2, No. 15) connectors support SATA data
(SATA2_2: see p.2, No. 11) cables for internal storage
(SATA2_3: see p.2, No. 14) devices. The current SATA2
(SATA2_4: see p.2, No. 12) interface allows up to 3.0 Gb/s
(SATA2_5: see p.2, No. 10) data transfer rate.
Serial ATA3 Connector This Serial ATA3 (SATA3)
(SATA3_0: see p.2, No. 9) connector supports SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
SATA2_2 SATA2_4
SATA2_1 SATA2_3
SATA2_5
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional) SATA / SATA2 / SATA3 hard
disk or the SATA2 / SATA3
connector on this motherboard.
SATA3_0
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB4_5) ports on the I/O panel, there are
(see p.2, No. 18) two USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB 2.0
ports.
(9-pin USB6_7)
(see p.2, No. 17)
