32
ASRock Z68 Extreme3 Gen3 Motherboard
English

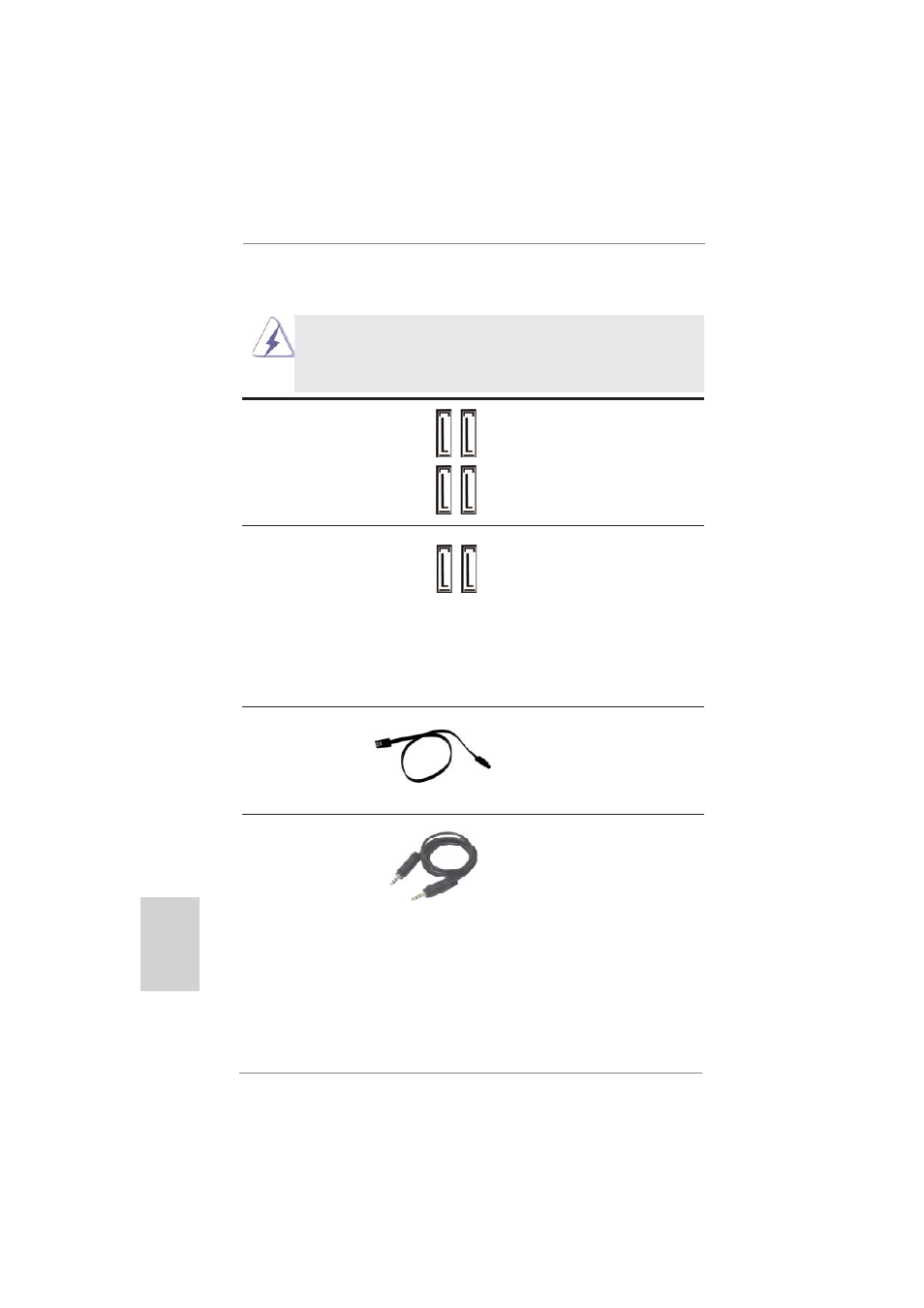

2.10 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATAII Connectors These four Serial ATAII (SATAII)
(SATA2_2: see p.2, No. 14) connectors support SATA data
(SATA2_3: see p.2, No. 13) cables for internal storage
(SATA2_4: see p.2, No. 16) devices. The current SATAII
(SATA2_5: see p.2, No. 15) interface allows up to 3.0 Gb/s
data transfer rate.
SA
TA2_5 SA
TA2_3
SA
TA2_4 SA
TA2_2
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional) SATA / SATAII / SATA3 hard
disk or the SATAII / SATA3
connector on this motherboard.
Serial ATA3 Connectors These two Serial ATA3 (SATA3)
(SATA3_0: see p.2, No. 12) connectors support SATA data
(SATA3_1: see p.2, No. 11) cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate. If you install
the HDD on the eSATA port on
the rear I/O, the internal
SATA3_1 will not function.
SA
TA3_1
SA
TA3_0
3.5mm Audio Cable Either end of the 3.5mm audio
(Optional) cable can be connected to the
portable audio devices, such
as MP3 player and mobile
phone or the Line-in port of
your PC.
