31

ASRock Z68 Extreme3 Gen3 Motherboard

English

2.9 Jumpers Setup

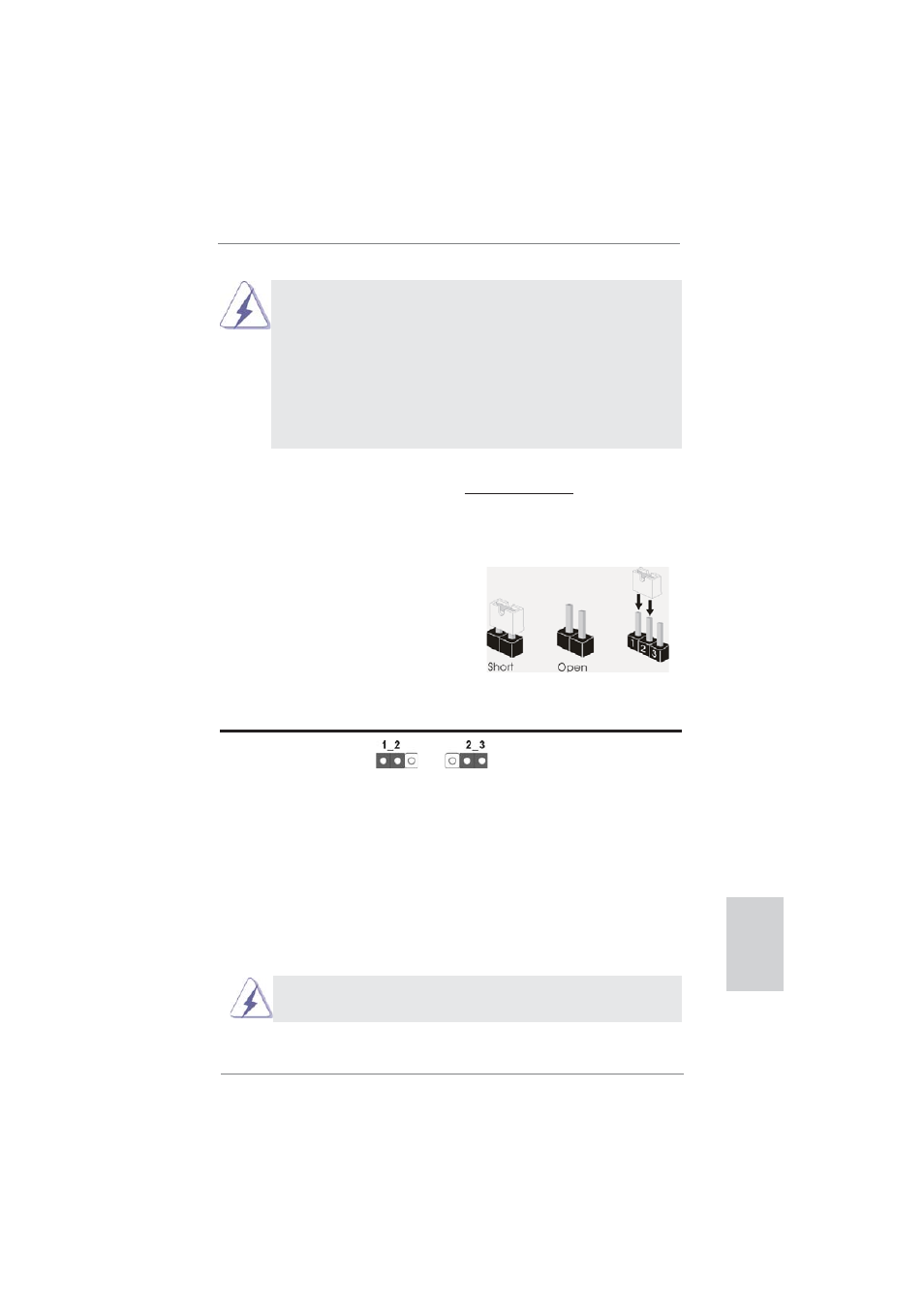

The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.

Jumper Setting

Description

Clear CMOS Jumper

(CLRCMOS1)
(see p.2, No. 26)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just fi nish updating the BIOS, you must boot
up the system fi rst, and then shut it down before you do the clear-CMOS ac-
tion. Please be noted that the password, date, time, user default profi le, 1394
GUID and MAC address will be cleared only if the CMOS battery is removed.

Clear CMOS

Default

The Clear CMOS Switch has the same function as the Clear CMOS
jumper.

* ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to
ASRock website for the motherboard support list: http://www.asrock.com

1.

Only one of the front USB port can support CIR function. When

the CIR function is enabled, the other port will remain USB

function.
2.

Multi-Angle CIR Receiver

is used for front USB only. Please do

not use the rear USB bracket to connect it on the rear panel.

Multi-Angle CIR Receiver

can receive the multi-direction infrared

signals (top, down and front), which is compatible with most of

the chassis on the market.

3.

The Multi-Angle CIR Receiver

does not support Hot-Plug

function. Please install it before you boot the

system.
