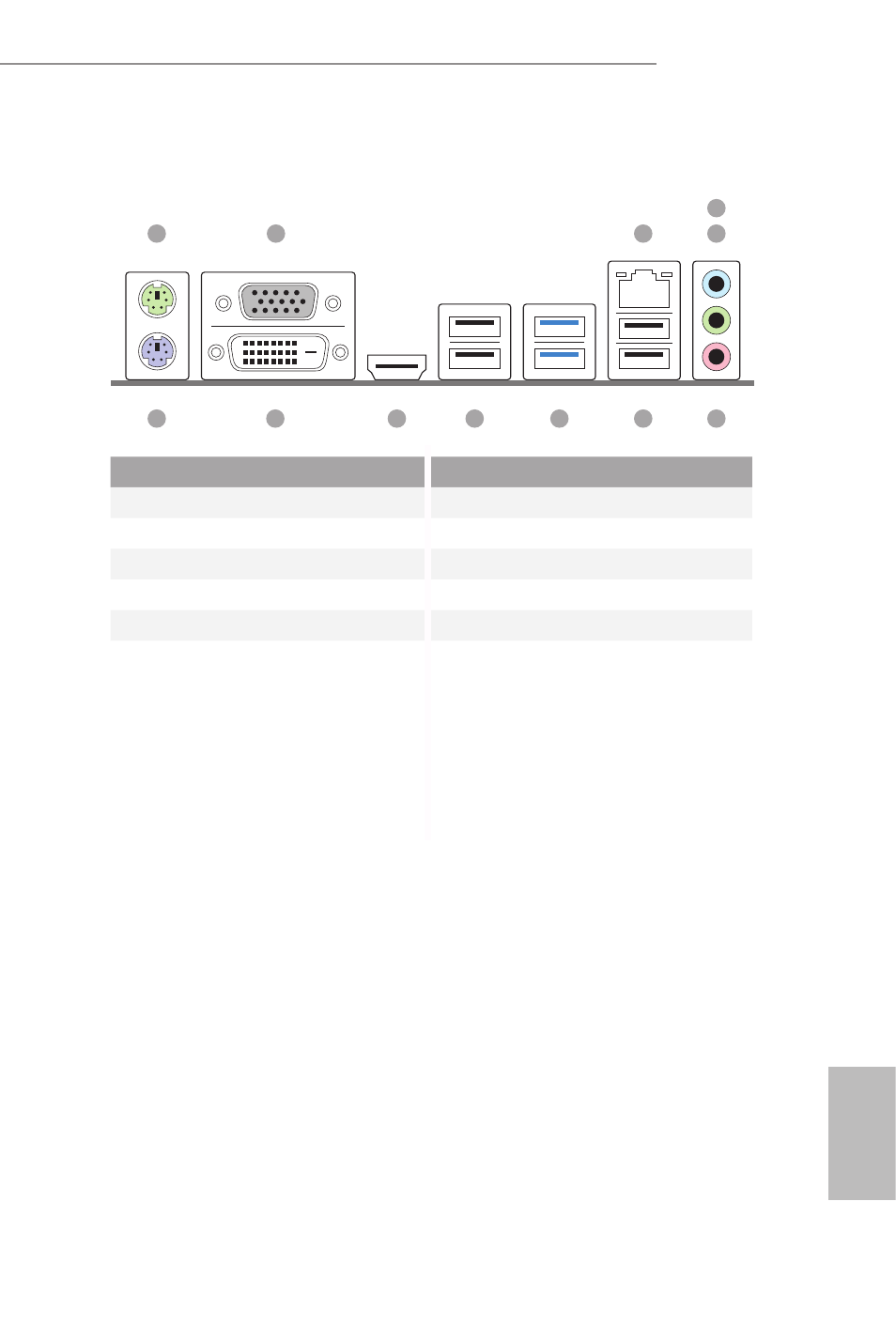

I/O Panel

No. Description

No. Description

1

PS/2 Mouse Port

7

USB 2.0 Ports (USB_23)

2

VGA Port

8

USB 3.0 Ports (USB3_01)

3

LAN RJ-45 Port*

9

USB 2.0 Ports (USB_01)

4

Line In (Light Blue)

10

HDMI Port

5

Front Speaker (Lime)**

11

DVI-D Port

6

Microphone (Pink)

12

PS/2 Keyboard Port

1

2

3

5

6

7

8

9

10

11

12

4
