100S General Purpose Reference Manual

29

Reference

Conventions

This section identifies the standard conventions that apply to your

100S

GP

system.

Count Direction

100S GP

uses positive and negative numbers to determine the position

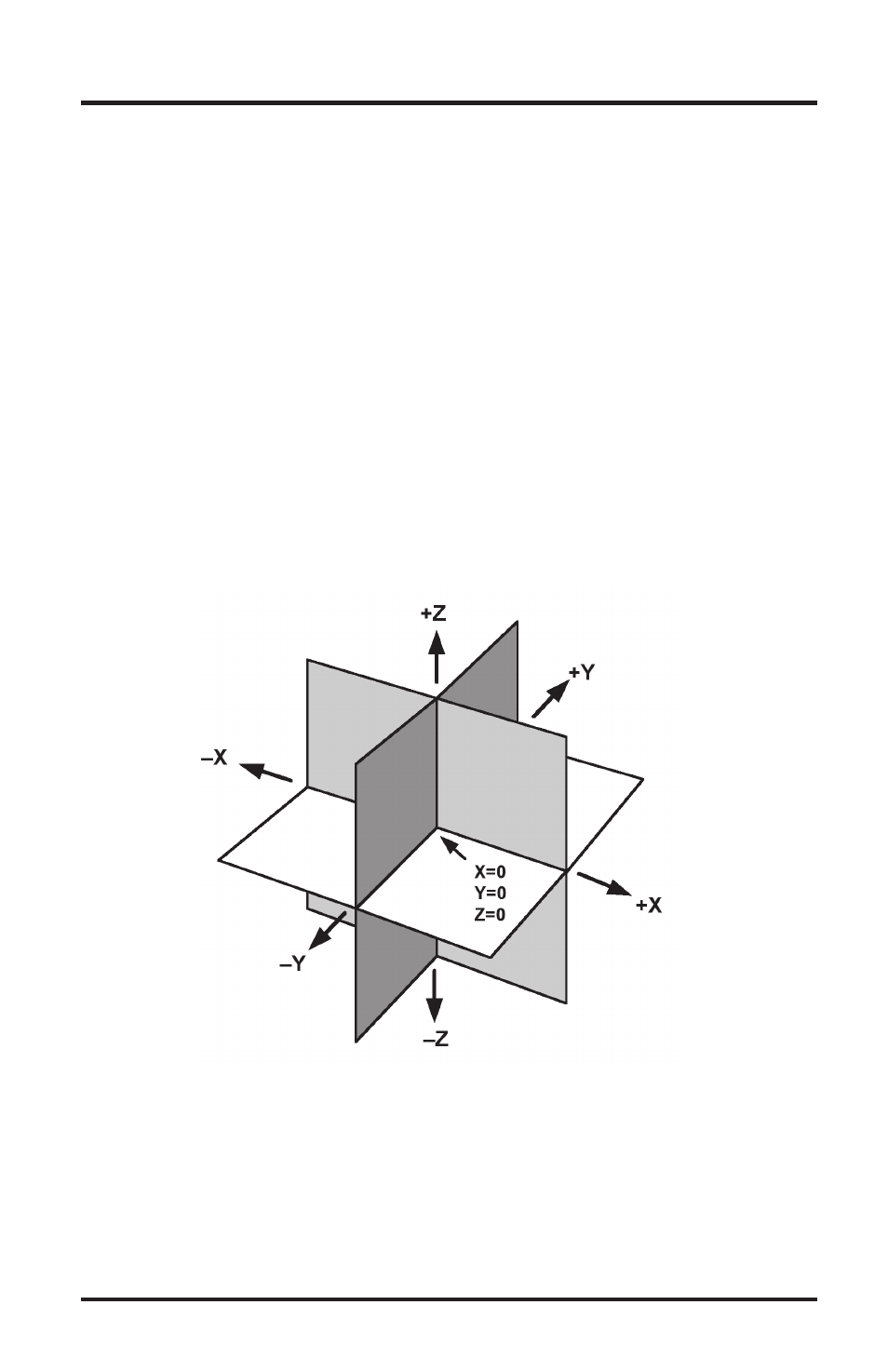

of the table and tool on each axis. The graphic below shows a typical
setup for the positive and negative count directions for the X-, Y-, and Z-
axes. All of the examples in this manual are based upon this setup.
