14

100S General Purpose Reference Manual

Operation

To set the datum using an offset:

Using the ABS/INCR key, select the absolute (ABS) mode. Also
check that the proper measurement (inch or mm) is selected.

Using RAD/DIA key, select the Radius mode.

Move the tool to a known point, i.e. the outside diameter of the
workpiece or the face of the workpiece.

Press the ZERO key once for the axis for which you are entering a
dimension.

Using the keypad, enter the distance from your tool’s current

location to the point you want to establish as the datum. Include a

decimal point (.) and minus (-) sign when necessary.

Press the ZERO key for the other axis, or press ENTER to return to
the DRO display.

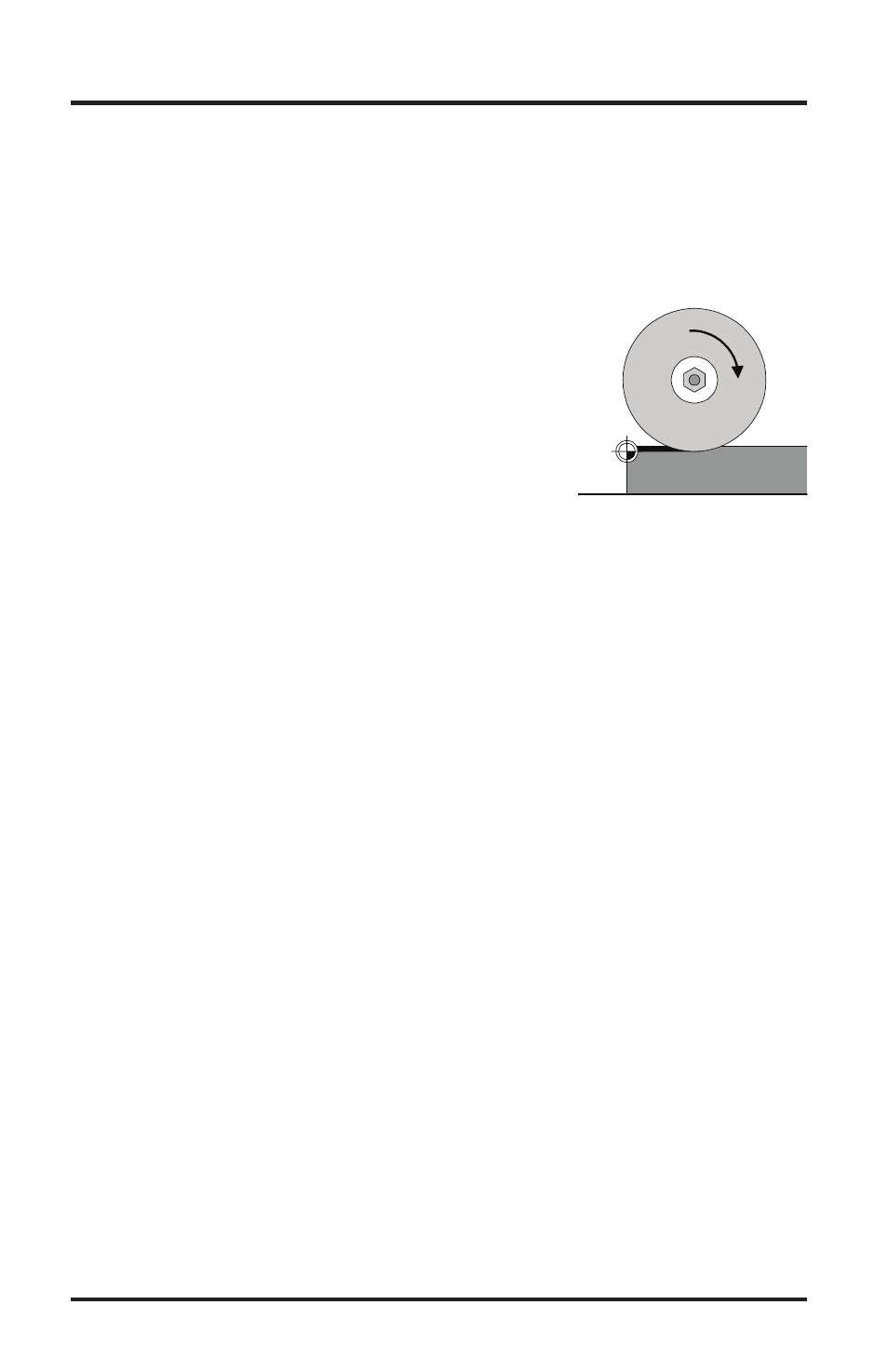

To set the datum at the tool’s current position:

Touch the wheel to the edge of the workpiece.

Make sure the absolute position is displayed (ABS).

Press the ZERO key of the appropriate axis.

Grinding

wheel
