AMI with Spindle Control Reference Manual 15
Do not use the 115V AC connection for any other circuitry.
Note: If the existing emergency stop system is any other voltage than
115V AC, you must use the AMI as the power source (described
above) for the AMI emergency stop input.

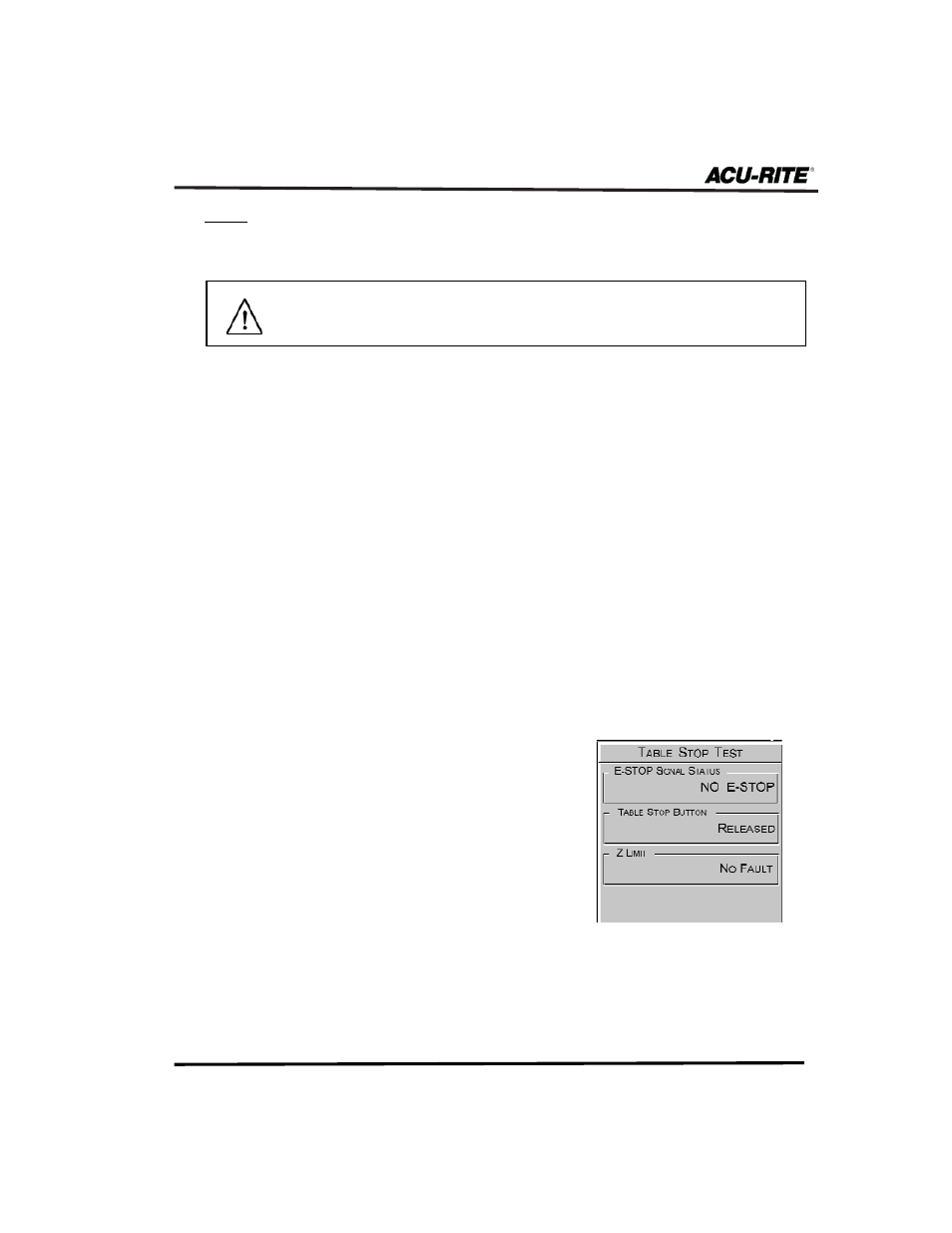

Table Stop Test
The table stop test shows whether or not an emergency stop (E-stop) condition
has been detected or the internal switch has been pressed.
Reports on whether or not the system detects an emergency stop
condition. An E-stop condition can originate from the operator
console, Z-axis, or optional AMI.
Displays the status of the table stop button (Pressed or Released)
on the operator console.
If Z-axis control is enabled, a “Fault” or “No Fault” message
will appear. A fault indicates that at least one of the limit switch-
es on the spindle has been disengaged.
To display the table stop test:
• From the Job Setup screen, select Installation
Setup and press
ENTER . Then select the
Diagnostics screen and press ENTER again.
• From the Diagnostics screen, highlight Table
Stop Test and press
ENTER . The test will run
automatically.
• When the test is complete, press the EXIT TEST softkey to close the “Table
Stop Test” screen.
• Continue with Diagnostics or press the USE NEW SETTINGS softkey.
E-Stop
Signal
Status
Table Stop
Button
Z-Limit
