Tip: To read all the memory content of the tag
<< 00
>> 11 48 18 26 .. 00 [90 00]
Step 3) Update the memory address
08 (Block 1: Byte-0)with the data FF
<< 53 08 FF
>> FF [90 00]
In which, Response Data = FF

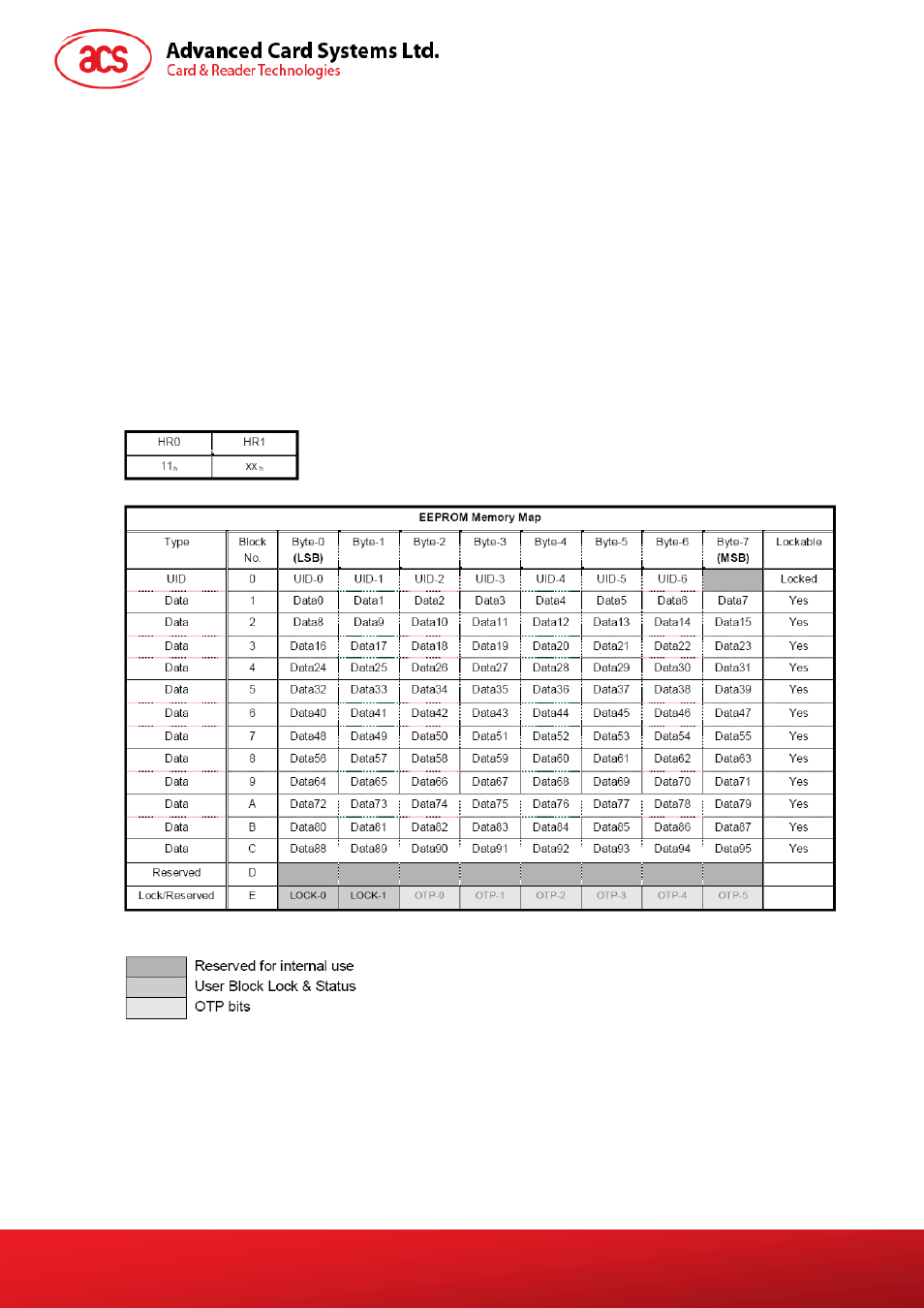

Topaz Memory Map.
Memory Address = Block No * 8 + Byte No
e.g. Memory Address 08 (hex) = 1 x 8 + 0 = Block 1: Byte-0 = Data0
e.g. Memory Address 10 (hex) = 2 x 8 + 0 = Block 2: Byte-0 = Data8
Please refer to the Jewel and Topaz specifications documents for more detailed information.
