Chapter Eight: Appendix
Two types of interfaces are available in the terminal: 9-pin RS232 interface
(for direct RS232 serial communication) and an RJ45 interface (for RS485
and TCP/IP over Ethernet communications).
8.1 RS232 Interface
The RS232 interface (refer to page 10 figure 4.1) provides RS232
communication, Lock and Wiegand entrance guide function with 9 pins
in total. Definitions of each pin are listed in the following table:
PIN Definition
1 Reserved
2 RS232 TX
3 RS232 RX
4 LOCK Data 1
5 GND
6 Reserved
7 Data ()
8 Reserved
9 Reserved
timeQplus BIOMETRIC™ Terminal User Manual 37 8 timeQplus BIOMETRIC™ Terminal User Manual

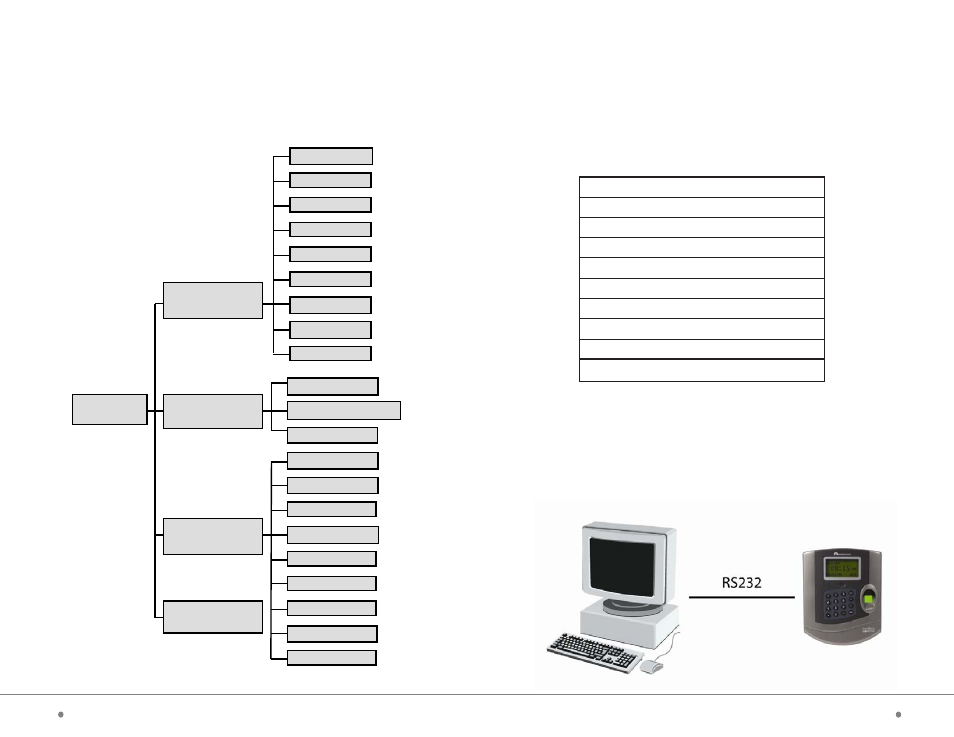

3.2 Setup
With Setup highlighted, press OK to access the Setup level-2 menus
and browse the four items available. There are a total of 18 level-3
menus as per the diagram below. For more information on each
menu, please refer to page 26.
RS232 Communication Diagram
Note: For door access and/or access control applications: connect with
the pins four and five when using the simple entrance guard;
white connect pins four five and seven when adopting Wiegand output.
A typical RS232 connections diagram looks like the figure below:
*The card option is not available on standard units.
Level-1 Menu
Level-2 Menu Level-3 Menu
Setup
Admin Record
Admin max number
Language
Time
Voice Out
Auto Shutdown
IP Address
Port number
Password
Duplicate Punches
Total Punches Alert
Device ID
Baud rate
Subnet Mask
Default
RS485
Ethernet
Display
Adjustment
Unlock
Communication
Setting
System Setting
Record Setting
AM/PM
Card*
Date Format
