timeQplus BIOMETRIC™ Terminal User Manual 35 10 timeQplus BIOMETRIC™ Terminal User Manual
Chapter Four: Communications
4.1 Communication Interfaces
There are two communication interfaces available for the TQ100 terminal:
9-pin RS232 interface and RJ45 interface, as illustrated in the Figure 4.1.
The RS232 interface provides RS232 communication, while the RJ45 interface
provides RS485 and Ethernet communication, see Figure 4.1 below.
Attention:
1. Maximum communication distance of RS232 cable is 50 feet (15 m).
2. RS485 communication can connect multiple terminals
(up to 32 terminals) and the maximum communication distance
can reach 1000 feet (300 m). For optimal performance it is
recommended
to use up to 10 terminals in a RS485 network installation.
3. Ethernet communication mode belongs to Ethernet network connection.
It can be used to connect any terminals in the LAN.
4.2 Communication Options
Choose from three communication options:
1. Direct Connection using RS232 with RS232 communications.
2. RS485 network connection using RJ45 interface
3. Network Connection using Ethernet communication function
with RJ45 interface.

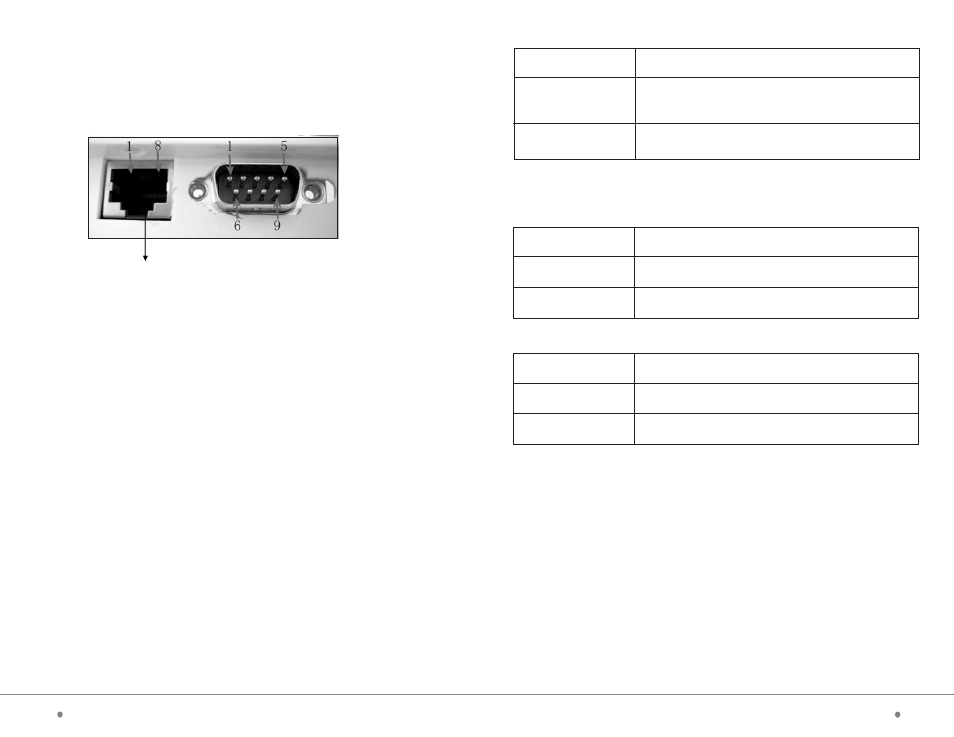

RJ45 Interface RS232 Interface
Figure 4.1
Setting Items Explanation
192.168.1.1
Factory Setting
7. Default Gateway
Set the default gateway of the LAN when using the
Ethernet communication.
192.168.1.1
Note: The default gateway must be consistent to the LAN settings.
Setting Items Explanation
Yes
Factory Setting
8. RS485 Communication
Setting Items Explanation
Yes
Factory Setting
9. Ethernet
Make the Ethernet communication available.
Yes
Make the RS485 communication available.
No
