HandPunch 3000/4000 Manual
25

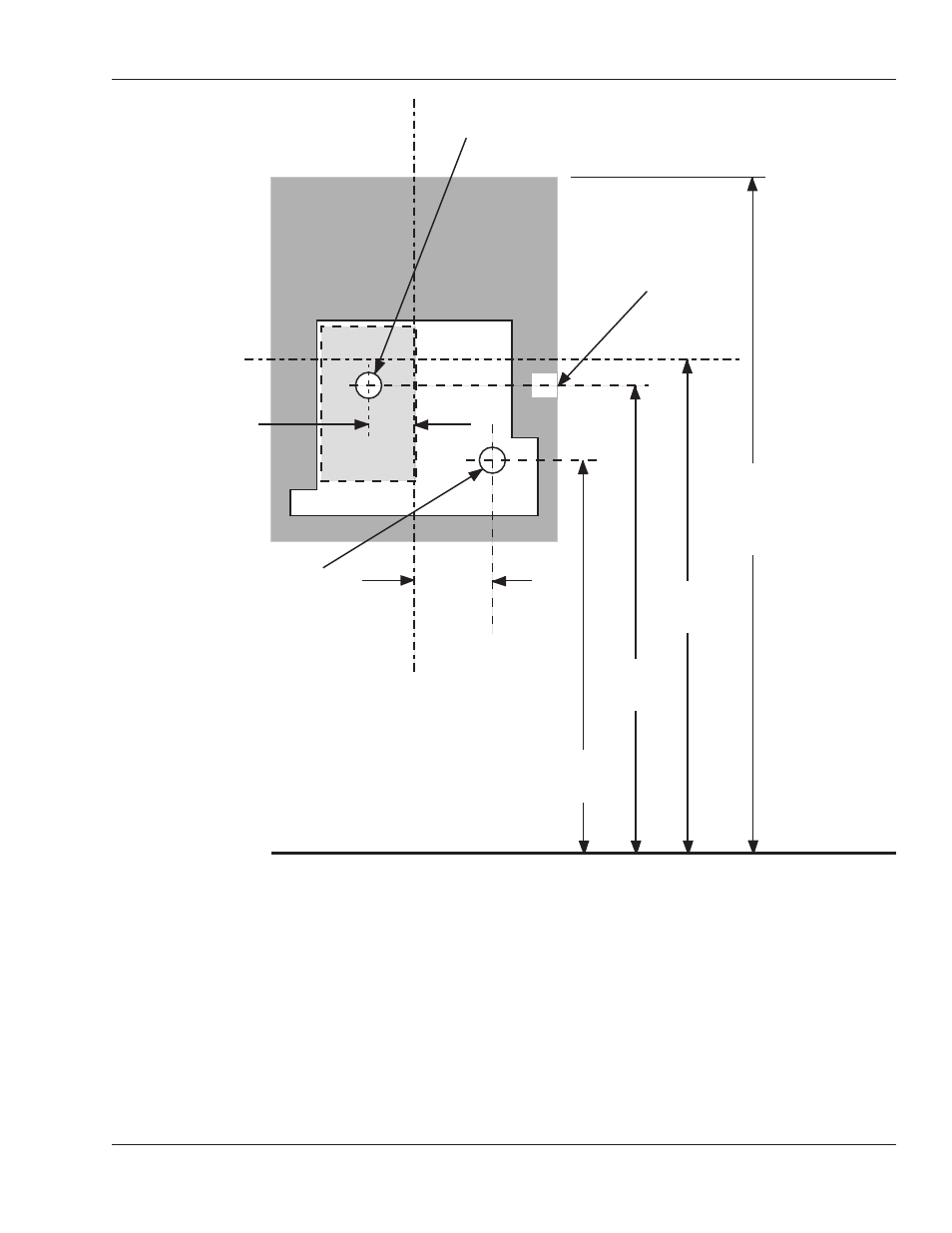

Figure 3-2: HandPunch Wire Routing Layout
1. Remove the HandPunch from its carton.
2. Align the sleeves of the back plate with the pins of the wall plate and slide
the HandPunch to the left as shown in “Figure 3-3” on page 26.
Wall Plate
Finished Floor
2"
(5 cm)
CL
HandPunch
WIRE ENTRY POINT
FOR SURFACE
RJ-11 BOX
1.25"
(3 cm)
WIRE ENTRY POINT
FOR RJ-11 JUNCTION BOX
SURFACE
CONDUIT
ENTRY POINT
CL
40.75"
(103 cm)
42.5"
(108 cm)
42.75"
(108.6 cm)
50" Reference
(127 cm)
to Top of
Wall Plate
Attaching the
HandPunch
