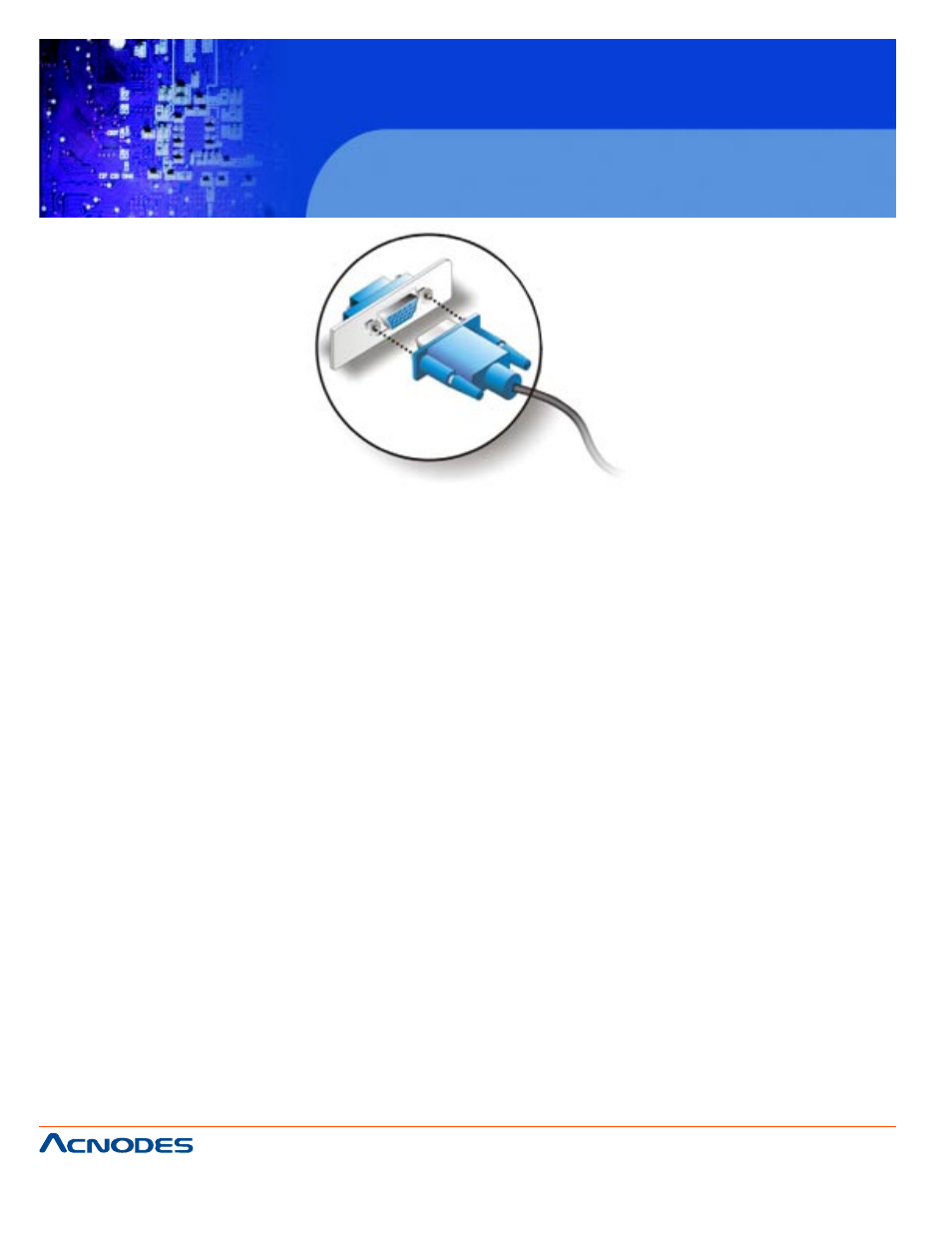

Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA moni-
tor to the external interface by tightening the two retention screws on either side of the
connector.

4.12 System Maintenance

If the components of the flat panel PC fail, they must be replaced. Please contact the
system reseller or vendor to purchase the replacement parts. Replacement instructions
for the above listed components are described below.

NOTE:

A user cannot replace a motherboard. If the motherboard fails it must be shipped back
to IEI to be replaced. Please contact the system vendor, reseller or an IEI sales person
directly.
