4.9 CD DRIVE INSTALLATION

To install the CD drive into the FPC6120, please follow the steps below:

Step 1: Attach the CD drive adapter to the CD drive by aligning the two retention screw
holes in the CD drive adapter with the retention screw holes on the rear side of the CD
drive. Place the two spacers between the CD drive and CD drive adapter. Insert two

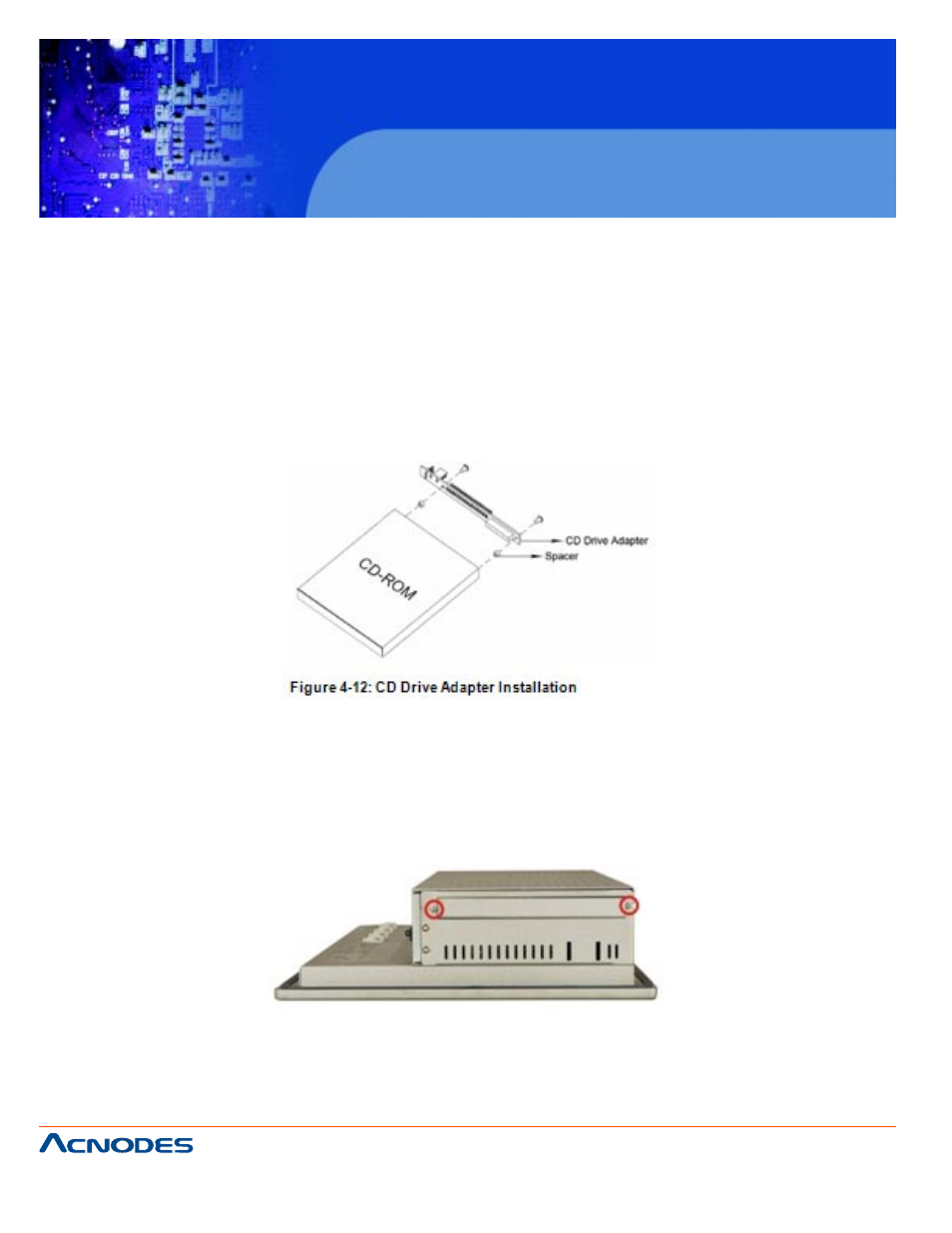

retention screws into the adapter (Figure 4-12).

Step 2: Remove the back cover. See Section 4.5 above.

Step 3: Remove the CD drive bracket from the FPC6120. To do this, remove three
retention screws, two on the side panel and one inside the panel PC (Figure 4-13).
