4.11 Rear Panel Connectors
4.11.1 Keyboard and Mouse Connection

Two PS/2 connectors on the bottom panel facilitate the connection of a mouse and a
keyboard. To connect either device, plug the PS/2 connector at the end of the device
(keyboard or mouse) cable into the PS/2 connector on the bottom panel.

4.11.2 LAN Connection
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connec-
tion to an external network. To connect a LAN cable with an RJ-45 connector, please
follow the instructions below.

Step 1: Locate the RJ-45 connectors on the bottom panel of the FPC6120.

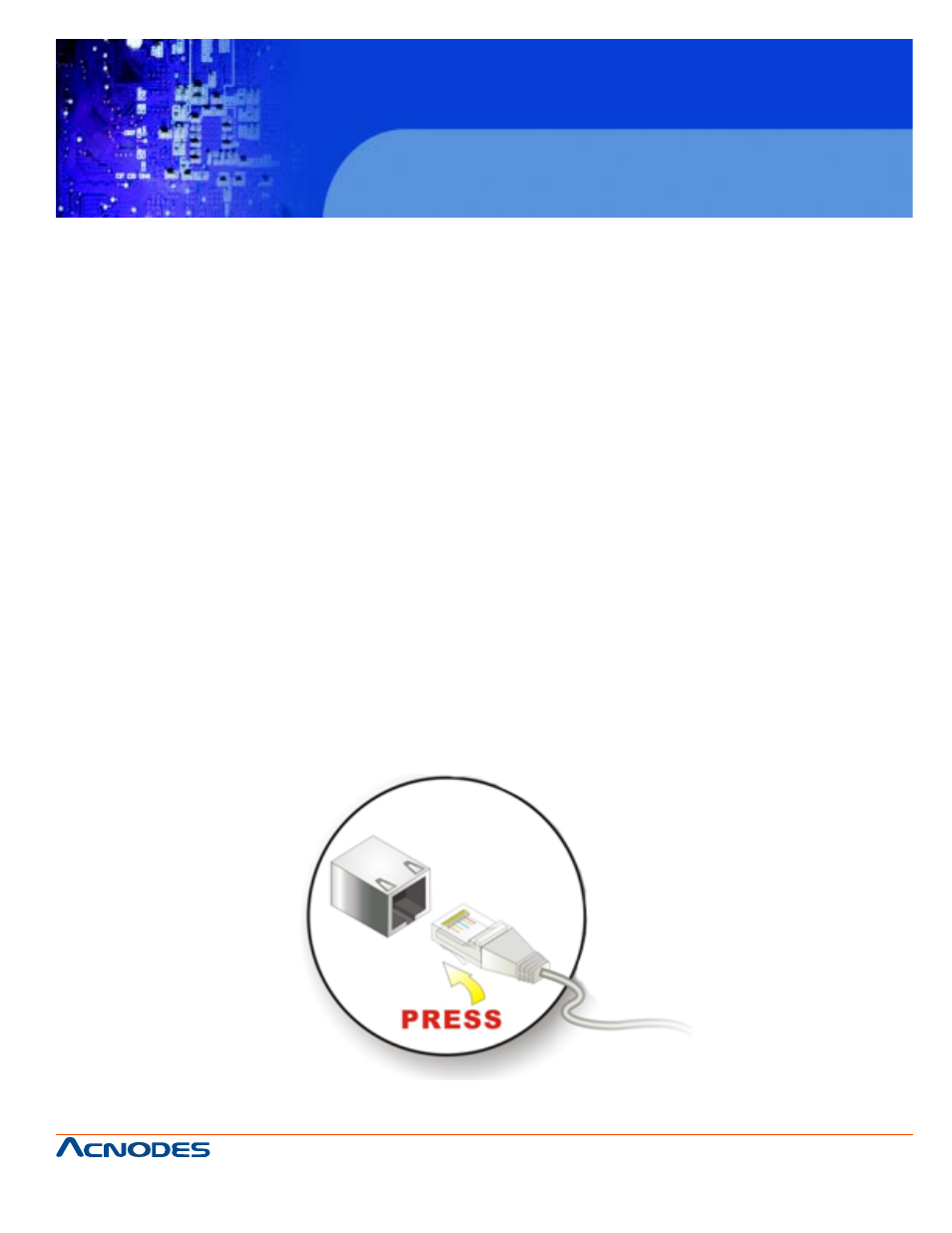

Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the bottom panel of the FPC6120. See Figure 4-34.

Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the onboard RJ-45 connector.
