FPC 6120

12.1” Industrial fanless Panel PC

Step 4: Slide the panel PC through the hole until the aluminum frame is flush against
the panel.

Step 5: Insert the panel mounting clamps into the pre-formed holes along the edges of
the chassis, behind the aluminum frame. There are a total of 8 panel mounting clamps.

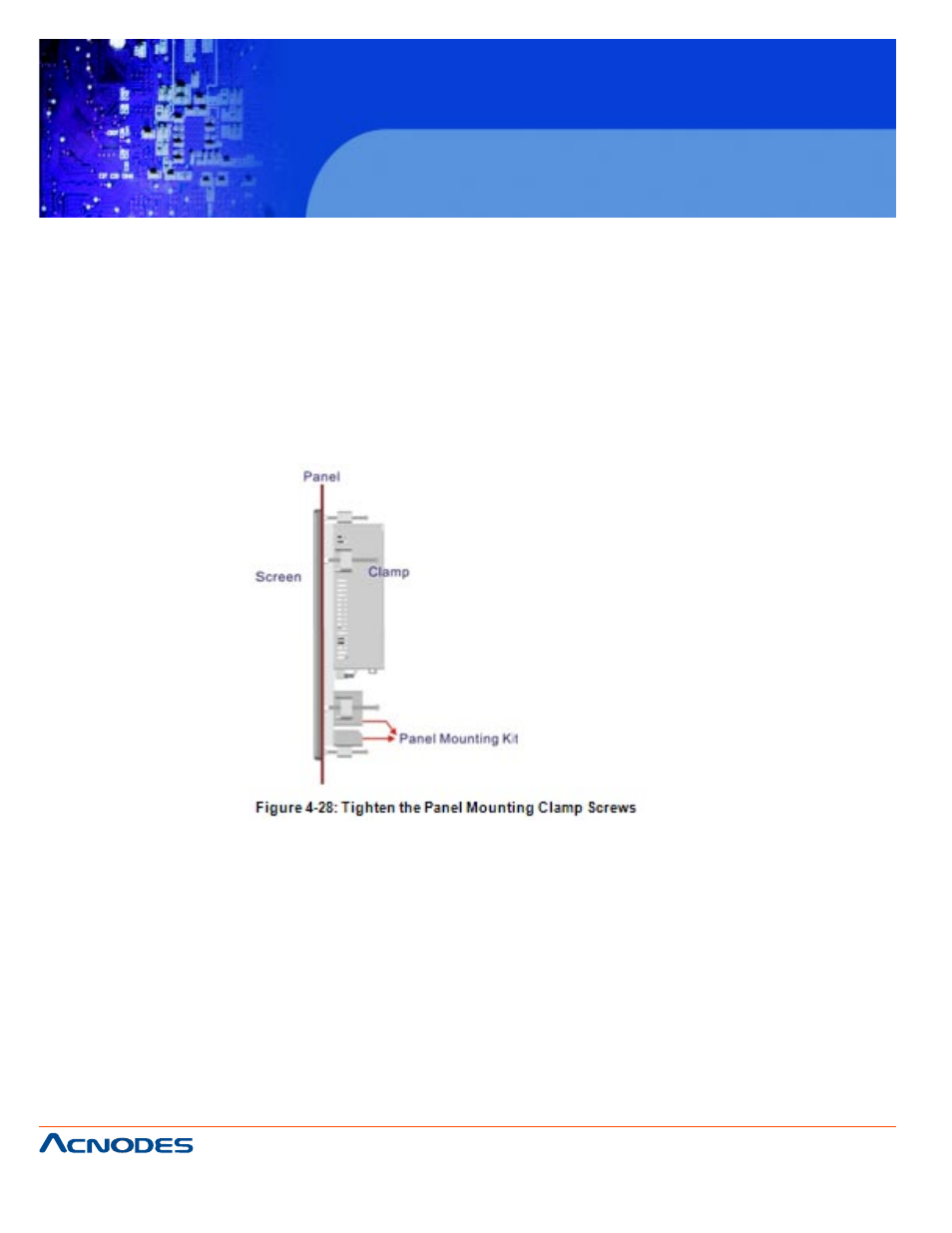

Step 6: Tighten the screws that pass through the panel mounting clamps until the plas-
tic caps at the front of all the screws are firmly secured to the panel (Figure 4-28).

4.10.3 Arm Mounting

The flat panel PC is VESA (Video Electronics Standards Association) compliant and
can be mounted on an arm with a 100 mm interface pad. To mount the flat panel PC on
an arm, please follow the steps below.

Step 1: The arm is a separately purchased item. Please correctly mount the arm onto
the surface it uses as a base. To do this, refer to the installation documentation that
came with the mounting arm.
