FPC 6120

12.1” Industrial fanless Panel PC

4.10.4.1 FPC6120
Step 1: The back of the aluminum frame surrounding the LCD screen has retention
screw holes (FPC6120 has 10 holes) for a cabinet/rack installation bracket.

NOTE:
When purchasing the cabinet/rack installation bracket make sure it is compatible with
both the flat panel PC and the rack/cabinet into which the panel PC is installed.

Step 2: Slide the rear chassis through the rack/cabinet bracket until the rear side of the
LCD screen frame is flush against the front of the bracket.

Step 3: Make sure the retention screw holes at the rear of the LCD screen are aligned
with the retention screw holes in the rack/cabinet bracket.

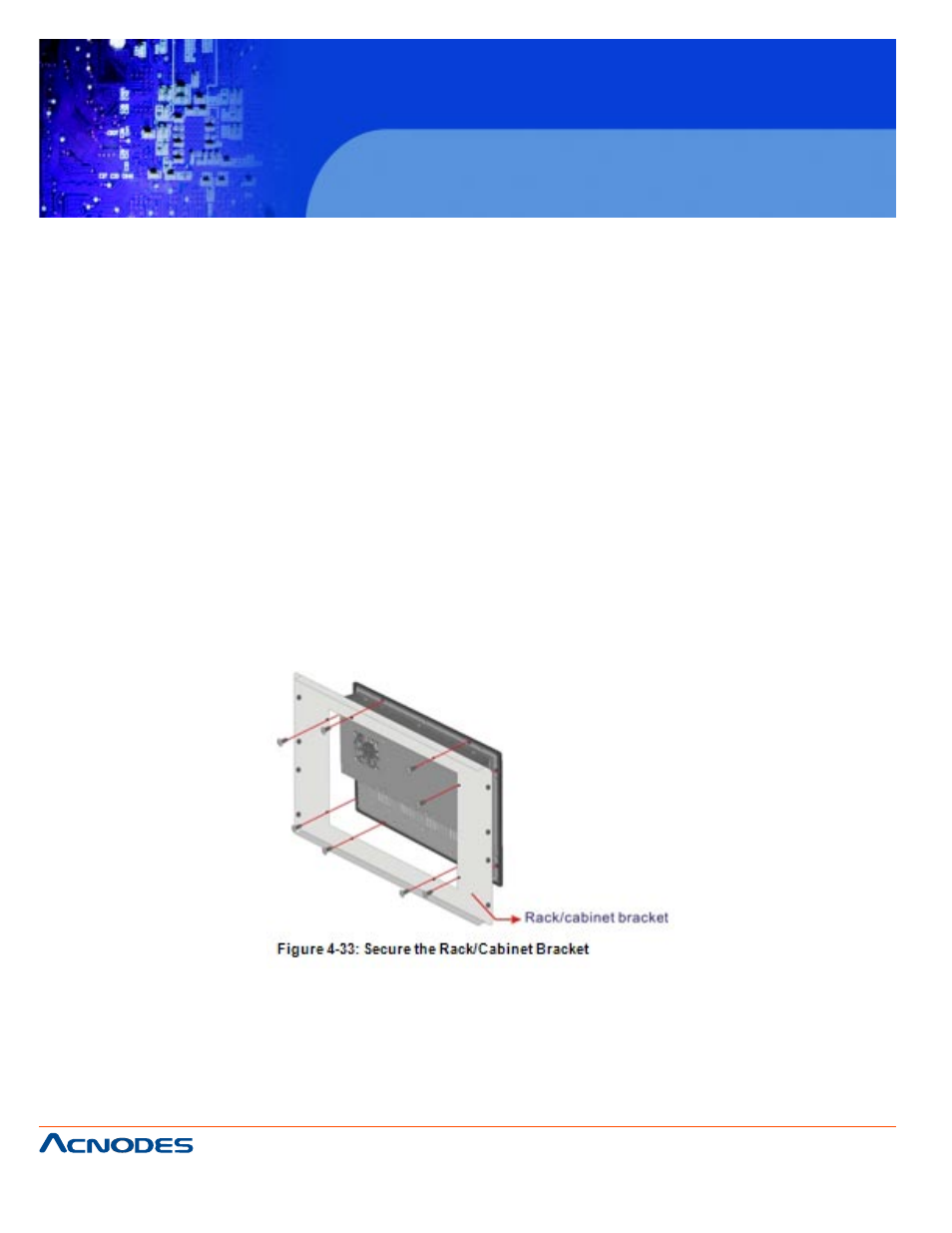

Step 4: Secure the rack/cabinet bracket to the FPC6120 flat panel PC by inserting the
retention screws (Figure 4-33).

Step 5: Follow Step 4 and Step 5 of the FPC6120 Cabinet and Rack Installation pro-
cedures to complete the whole installation process.
