FPC 6120

12.1” Industrial fanless Panel PC

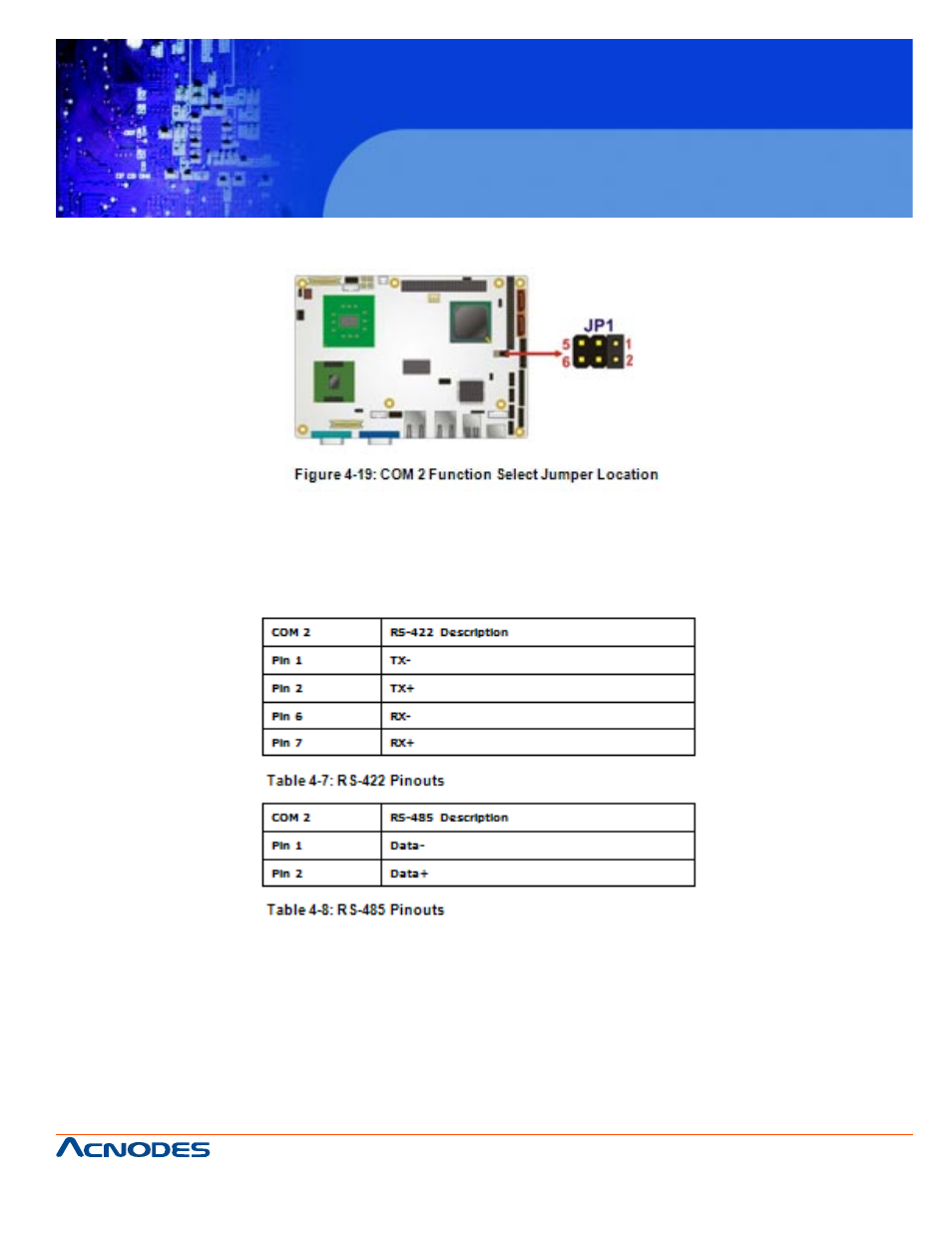

The COM 2 Function Select jumper location is shown in Figure 4-19.

4.9.6.1 COM2 RS-422 and RS-485 Pinouts

The pinouts for RS-422 and RS-485 operation of external serial port COM 2 are de-
tailed below.
