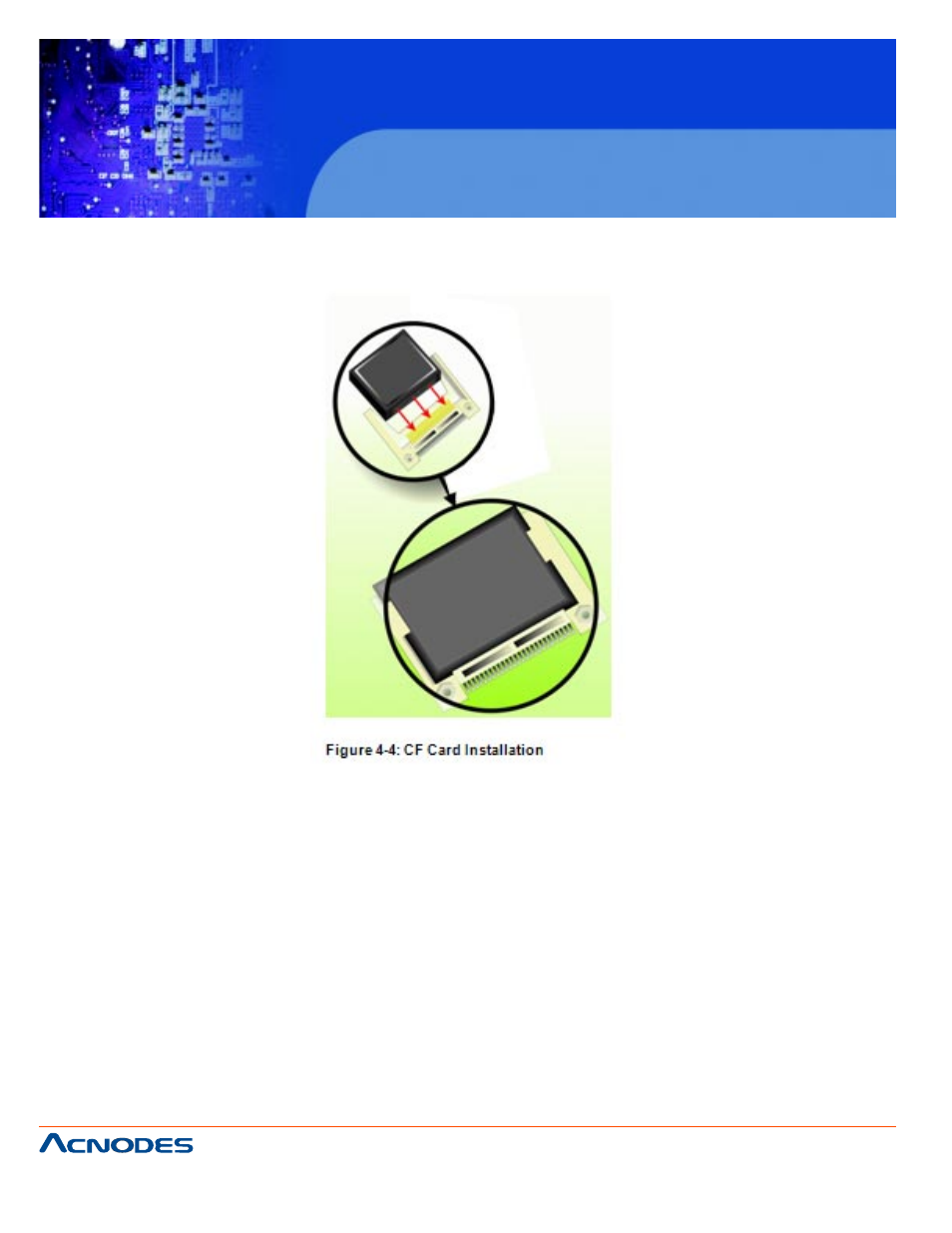

Step 4: Insert the CF card. Gently insert the CF card into the socket making sure the
socket pins are properly inserted into the socket. See Figure 4-4.

4.8 HDD Installation
4.8.1 FPD6120 HDD Installation

To install the HDD, please follow the steps below:
Step 1: Remove the back cover. See Section 4.5.3 above.

Step 2: Remove the CD-ROM bracket. See Section 4.9 Step 3 below.

Step 3: Attach the HDD brackets to the HDD. To do this, align the two retention screw
holes in each HDD bracket with the retention screw holes on the side of the HDD. Insert
two retention screws into both brackets on both sides of the HDD (Figure 4-10).
