FPC 6120

12.1” Industrial fanless Panel PC

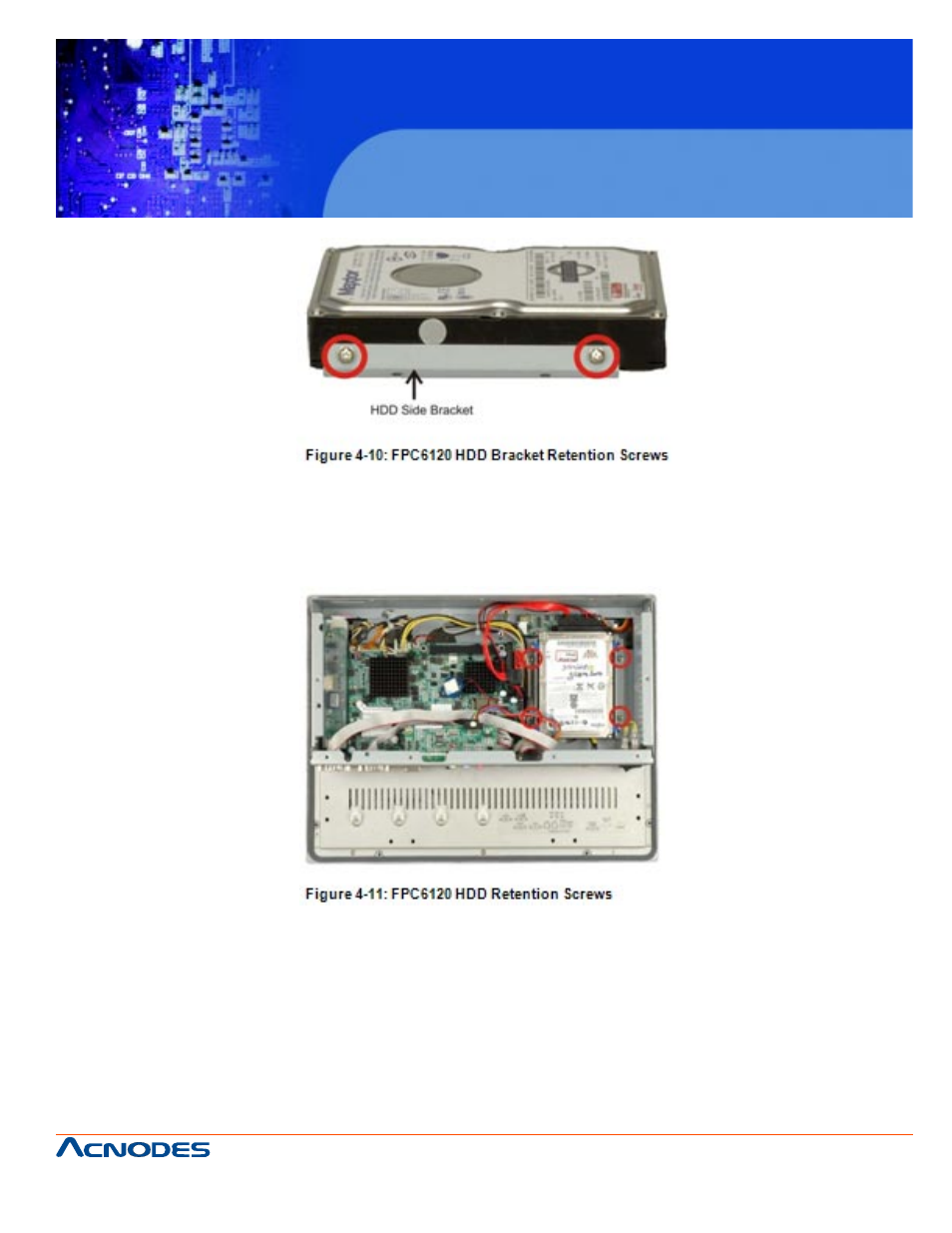

Step 4: Install the HDD into the FPC6120 by aligning the retention screw holes in the
base of the HDD brackets with the retention screw holes on the metal sheet. Insert the
four retention screws, two into the base of each HDD bracket (Figure 4-11.)

Step 5: Connect the SATA cable from the SATA connector on the motherboard to the
rear of HDD.
