FPC 6120

12.1” Industrial fanless Panel PC

4.11.3 Serial Device Connection

The FPC6120 has two single male DB-9 connectors on the bottom panel for a serial
device. Follow the steps below to connect a serial device to the FPC6120 panel PC.

Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in
Chapter 2.

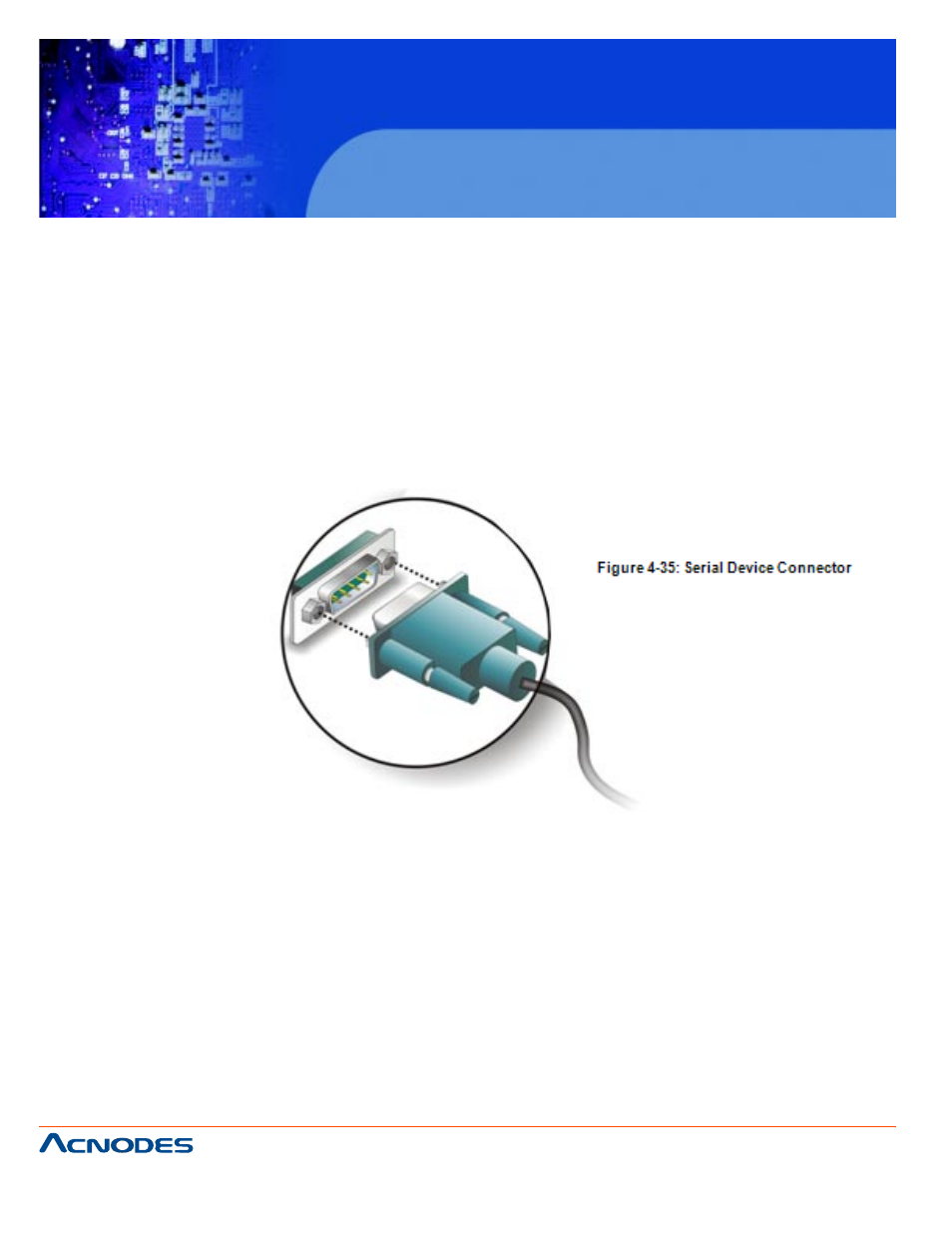

Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into the
DB-9 connector on the bottom panel. See Figure 4-35.

Step 3: Secure the connector. Secure the serial device connector to the external inter-
face by tightening the two retention screws on either side of the connector.

4.11.4 USB Device Connection

To connect a USB 2.0 or USB 1.1 device, please follow the instructions below.

Step 1: Locate the USB connectors. The locations of the USB connectors are shown
in Chapter 2.

Step 2: Align the connectors. Align the USB device connector with one of the connec-
tors on the bottom panel. See Figure 4-36.
