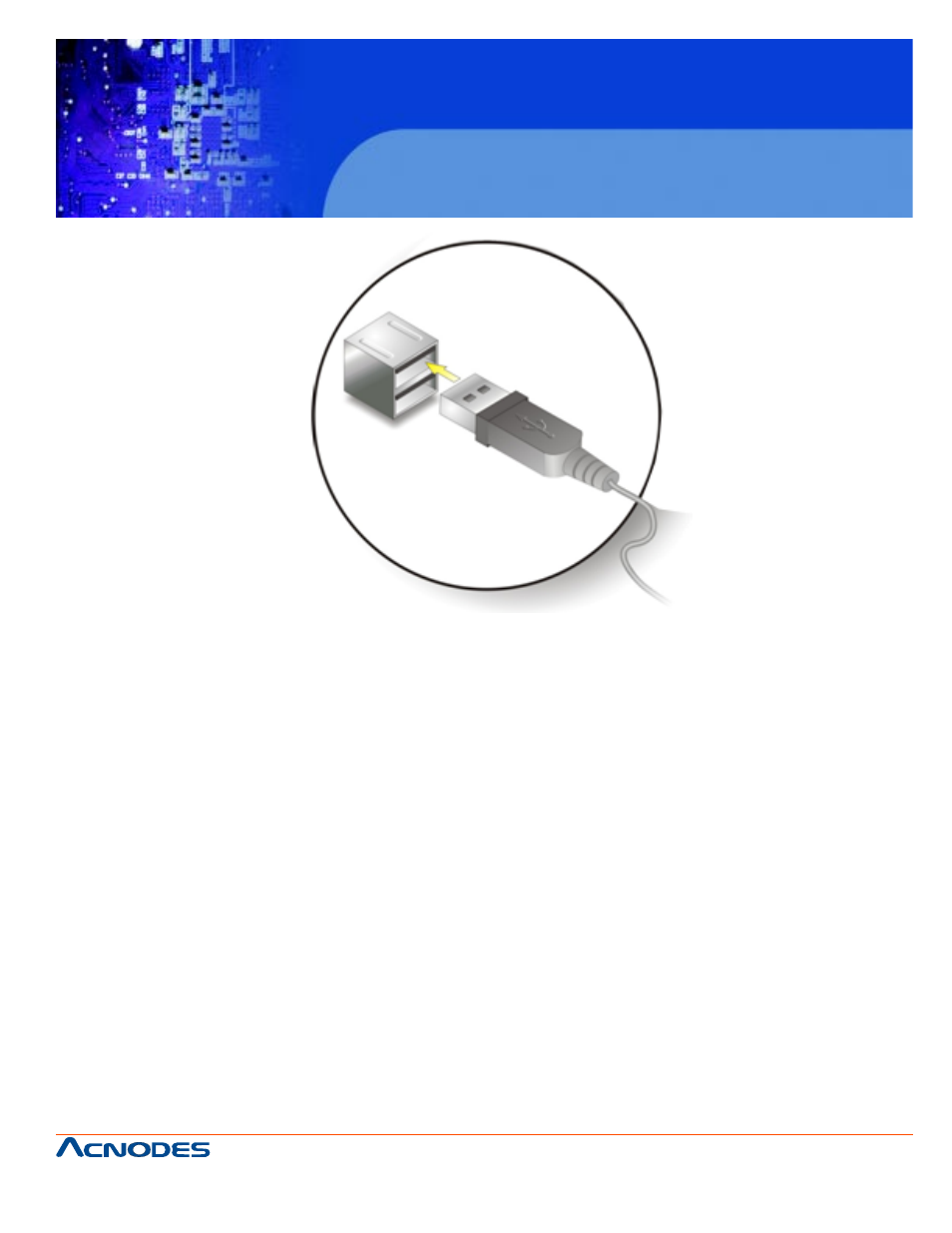

Step 3: Insert the device connector. Once aligned, gently insert the USB device con-
nector into the onboard connector.

4.11.5 VGA Monitor Connection

The FPC6120 has a single female DB-15 connector on the external peripheral interface
panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a
monitor to the FPC6120, please follow the instructions below.

Step 1: Locate the female DB-15 connector. The location of the female DB-15 con-
nector is shown in Chapter 3.

Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.

Step 3: Insert the VGA connector Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
FPC6120. See Figure 4-37.
