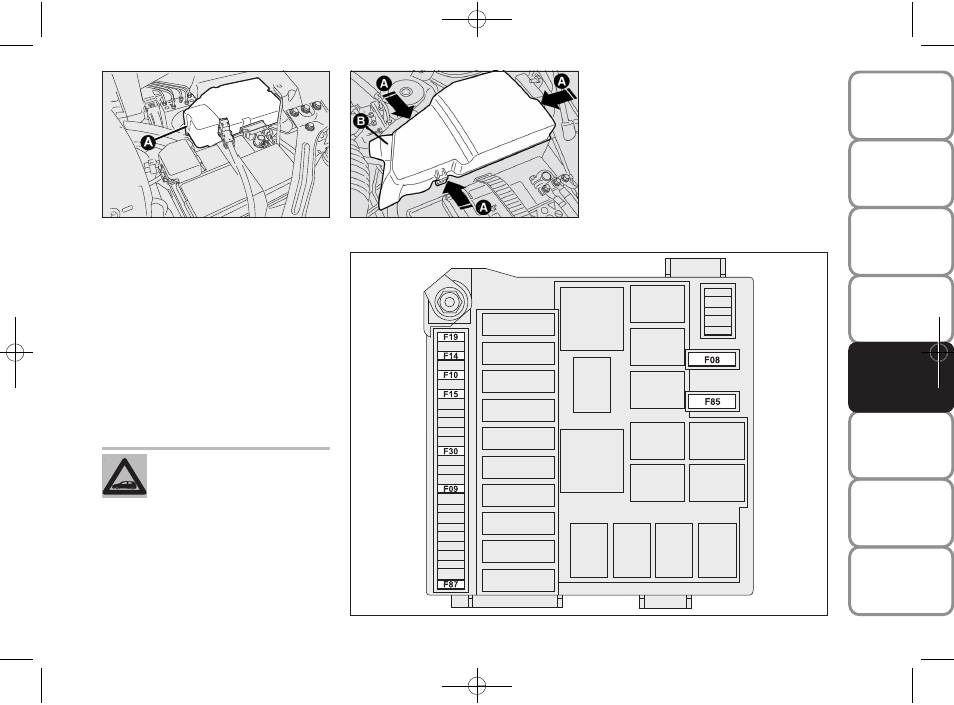

Fuse box next to the battery fig. 51
(for versions/markets, where provided)
A second fuse-box is located on the right-
hand of the engine compartment, next to
the battery; to reach it loosen the fixing
screws and remove the lid A-fig. 50.
The ID number of the electrical compo-
nent corresponding to each fuse can be
found on the back of this cover.
fig. 50 F0Q0816m
If you need to wash the en-
gine compartment, take care
not to directly hit the engine
compartment control unit
with the water jet.
Fuse box next to the battery
fig. 51a
(for versions/markets, where provided)
To gain access to the fuse box next to the
battery, press the retainers A-fig. 50a and
remove the protection cover B.
fig. 50a F0Q0498m
fig. 51 F0Q0815m
