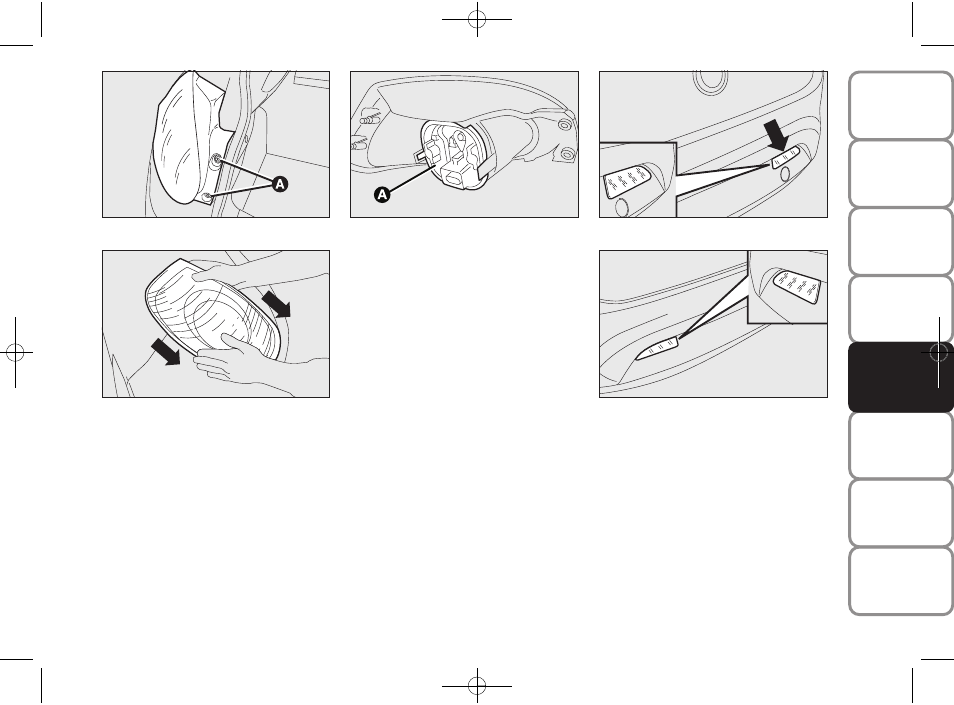

To change the bulb proceed as follows:
❒ open the tailgate then, slacken the two
fastening screws A-fig. 27;
❒ remove the light unit with both hands
as shown by the arrows in fig. 28;
❒ disconnect the electric connector and
remove the protective cover A-fig. 29
pressing the three catches and replace
the burnt out bulb.
REVERSING LIGHTS fig. 30
Contact Fiat Dealership to have reversing
light bulbs replaced.
REAR FOG LIGHTS fig. 31
Contact Fiat Dealership to have rear fog
light bulbs replaced.
fig. 27 F0Q0715m fig. 30 F0Q0711m
fig. 31 F0Q0712m fig. 28 F0Q0739m
fig. 29 F0Q0713m
