114 A PPENDIX A: T ELEPHONE I NSTALLATION AND M AINTENANCE
Wall-Mount Position To mount an NBX 1102, 2102, or 2102-IR Telephone on a wall, put the
bracket on the opposite end of the telephone in the low-profile position.
Pull and twist the knob on the underside of the phone 90 degrees
(
Figure 20 ) so that the spring- loaded peg projects out on the top of the
phone (Item 1 in Figure 21 ).

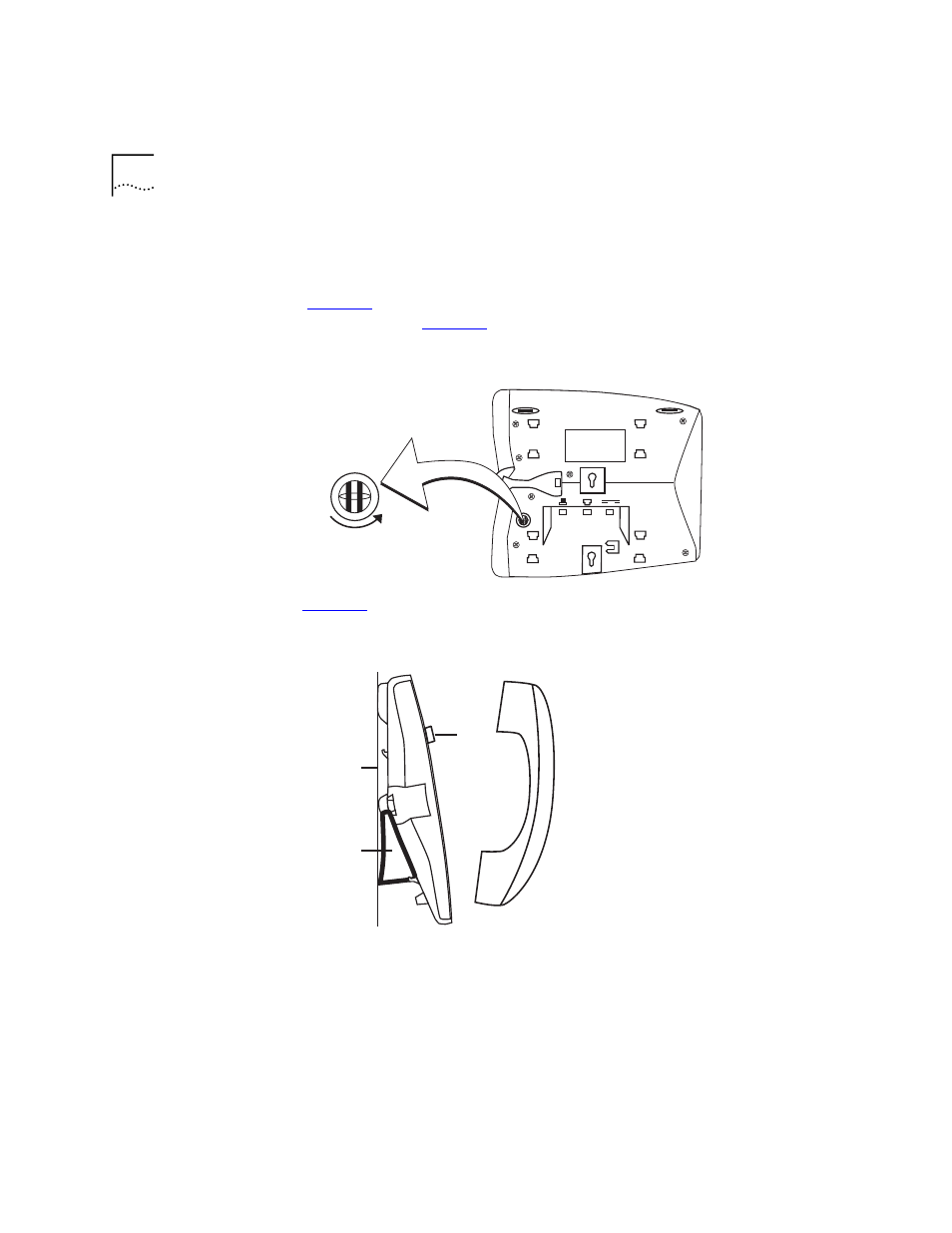

Figure 20 Knob for the Handset Support Peg
Figure 21 shows an NBX 2102 Telephone in the wall-mount position.
Figure 21 Wall-Mount Position
1 Handset support peg
2 Wall with a solid backing
3 Support bracket in the low-profile position on opposite end of telephone
1
2
3
