Dimension ES-3024 Ethernet Switch
Introducing The Web Configurator 4-3
Step 2. Disconnect and reconnect the switch’s power to begin a session. When you reconnect the switch’s power,
you will see the initial screen.
Step 3. When you see the message “Press any key to enter Debug Mode within 3 seconds” press any key to enter
debug mode.
Step 4. Type atlc after the Enter Debug Mode message.
Step 5. Wait for the Starting XMODEM upload message before activating XMODEM upload on your
terminal.
Step 6. After a successful firmware upload, type atgo to restart the switch.
The switch is now reinitialized with a default configuration file including the default password of “1234”.
4.5 Home Screen
The home screen consists of a navigation panel and a main panel.

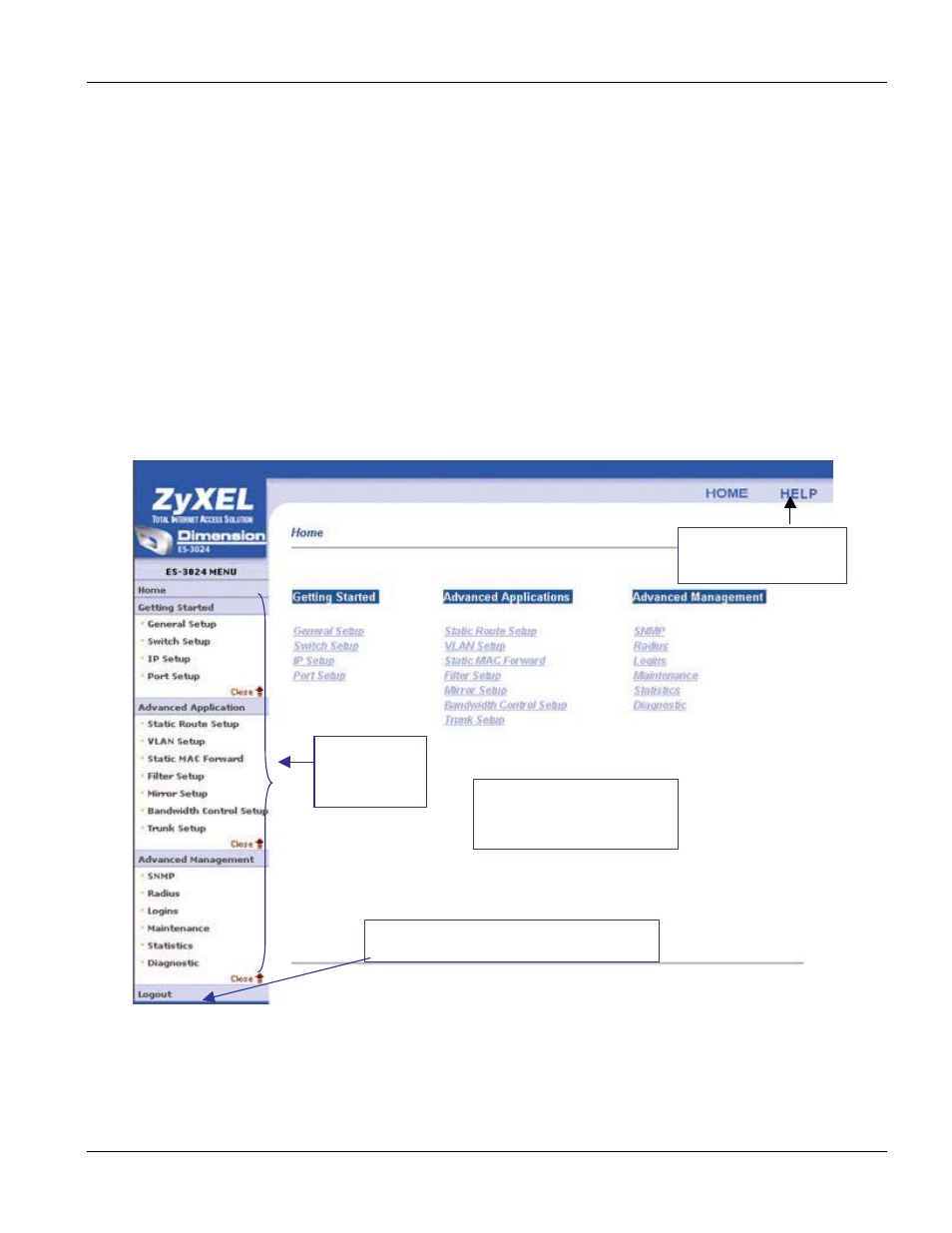

Figure 4-3 ES-3024 Home Screen
Click Logout to exit the web configurator.
This is the
Main Panel
Navigation
Panel
Click here for help on
configuring a screen.
