Dimension ES-3024 Ethernet Switch
Statistics 19-7
19.1.4 VLAN Status
Click VLAN Status in the Statistics screen to open this screen. Use this screen to check status and membership
data about the card’s IEEE 802.1Q VLANs.

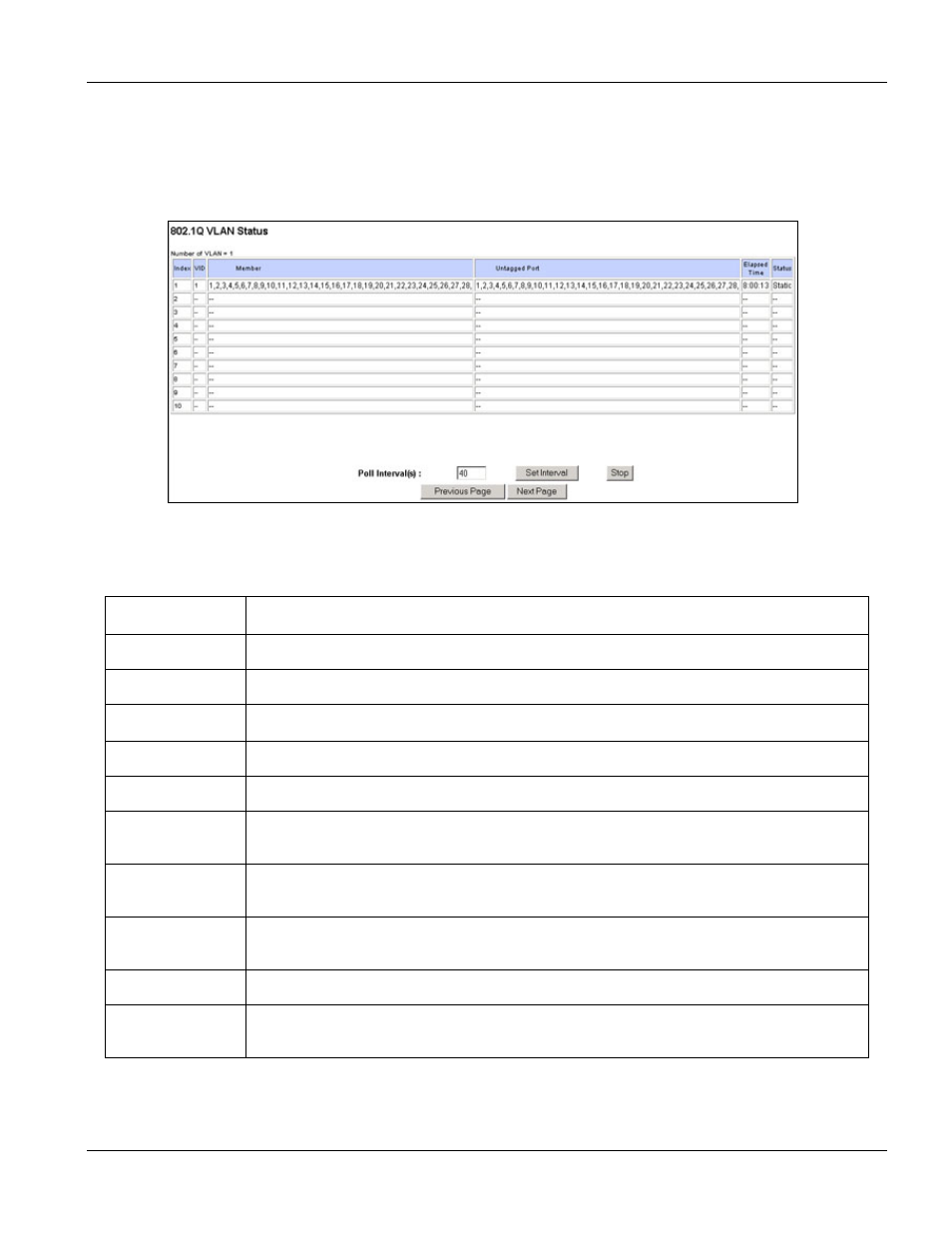

Figure 19-6 802.1Q VLAN Status
Table 19-5 802.1Q VLAN Status
LABEL DESCRIPTION
Number of VLAN This is the number of VLANs configured on the switch.
Index This is the VLAN index number.
VID This is the VLAN identification number that was configured in the VLAN Setup screen.
Member Ports that have been added to this VLAN are listed here in numerical order.
Untagged Port Untagged ports that have been added to this VLAN are listed here in numerical order.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a static
VLAN was set up.
Status This field shows how this VLAN was added to the switch; dynamically using GVRP or
statically, that is, added as a permanent entry.
Poll Interval(s) The text box displays how often (in seconds) this screen refreshes. You may change the
refresh interval by typing a new number in the text box and then clicking Set Interval.
Stop Click Stop to halt polling statistics.
Previous/Next
Page Click one of these buttons to show the previous/next screen if all status information
cannot be seen in one screen.
