The following table describes the labels in this screen.
2.4.5 Status: Bandwidth Status
Click the Bandwidth Status hyperlink in the Status screen. Select an interface from the drop-
down list box to view the bandwidth usage of its bandwidth rules. The gray section of the bar
represents the percentage of unused bandwidth and the blue color represents the percentage of
bandwidth in use.

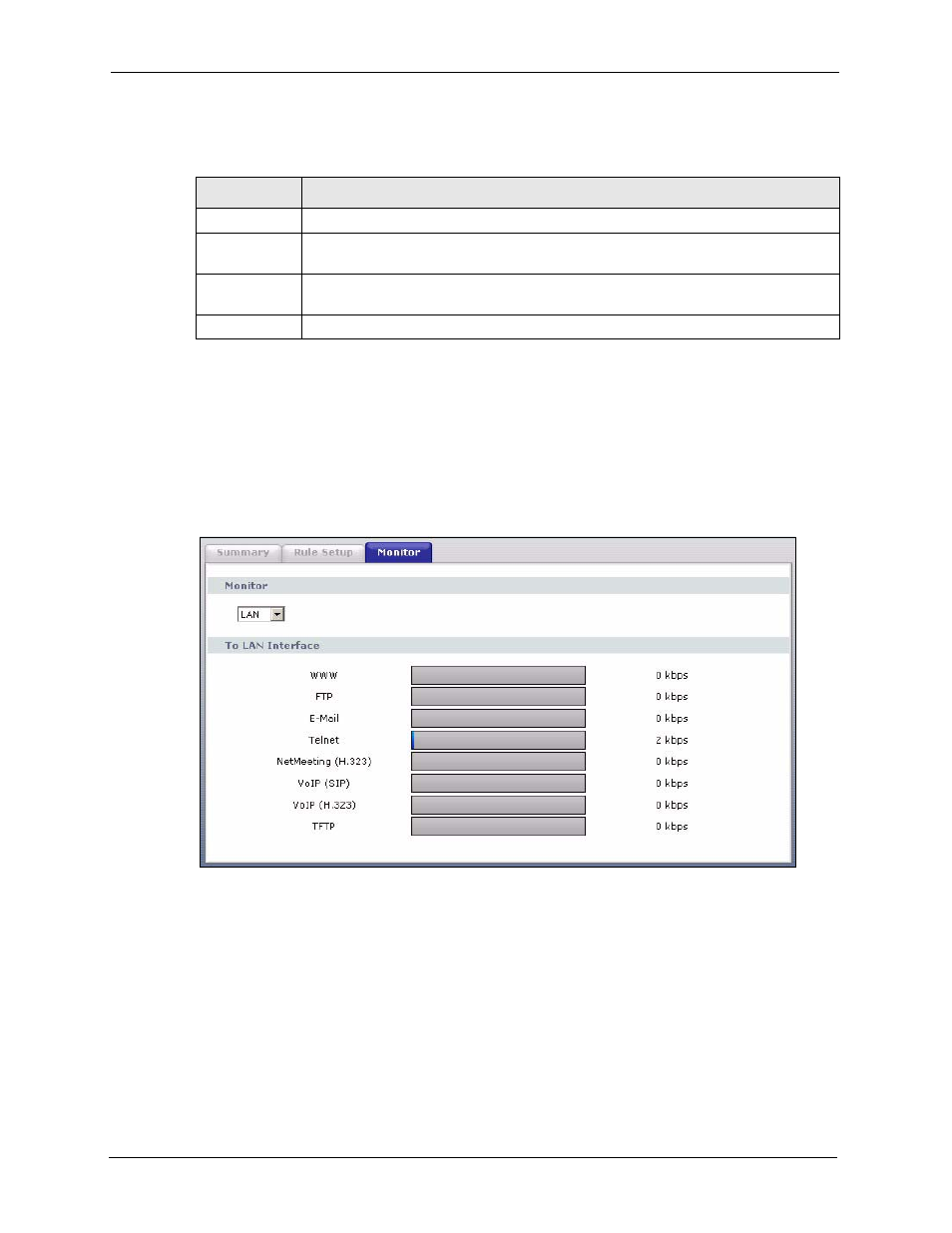

Figure 11 Status: Bandwidth Status
2.4.6 Status: Packet Statistics
Click the Packet Statistics hyperlink in the Status screen. Read-only information here
includes port status and packet specific statistics. Also provided are "system up time" and "poll
interval(s)". The Poll Interval(s) field is configurable.
Table 6 Status: WLAN Status
LABEL DESCRIPTION
# This is the index number of an associated wireless station.
MAC Address This field displays the MAC (Media Access Control) address of an associated wireless
station.
Association
TIme
This field displays the time a wireless station first associated with the ZyXEL device.
Refresh Click Refresh to reload this screen.
