P-660HW-D Series User’s Guide
43 Chapter 2 Introducing the Web Configurator

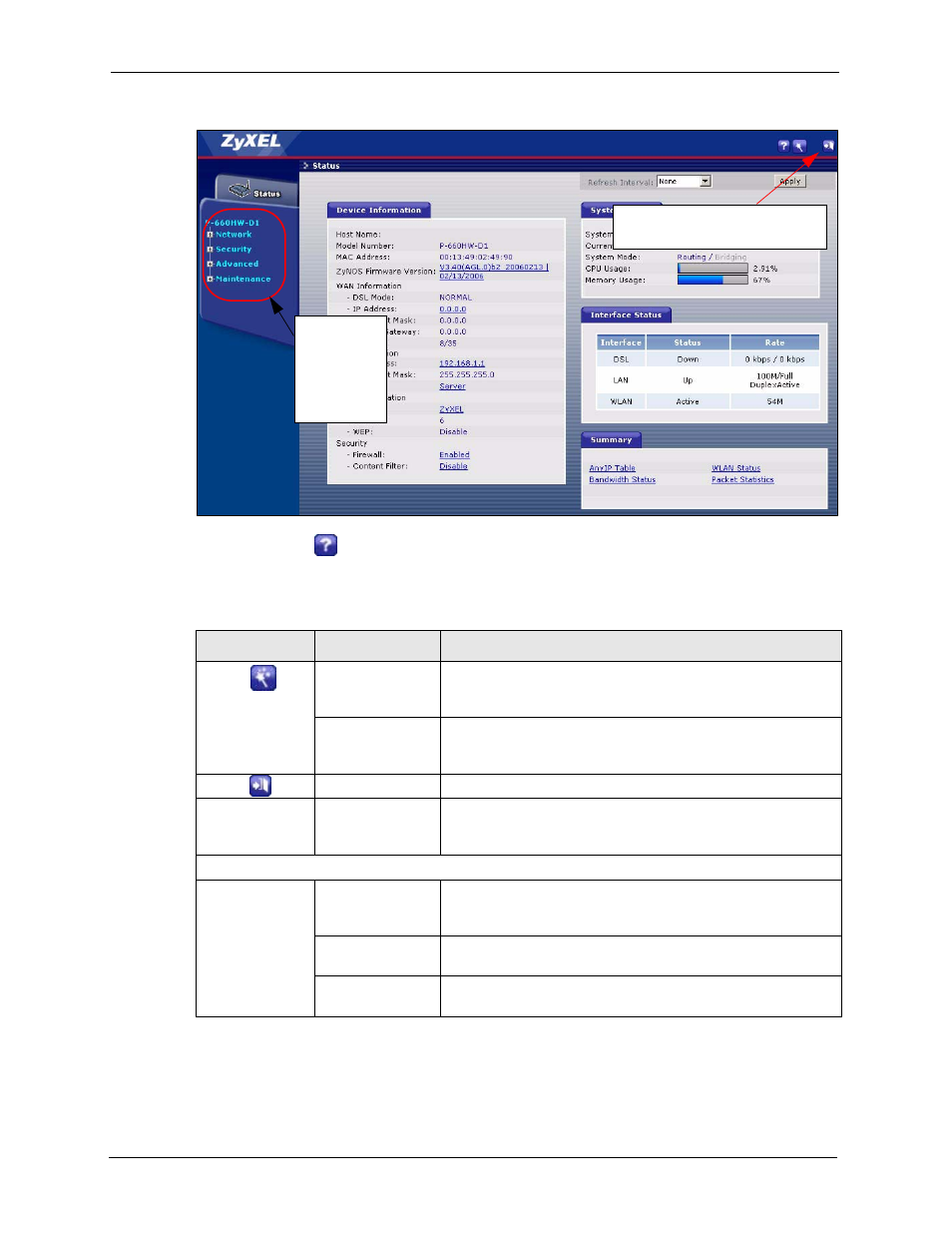

Figure 7 Web Configurator: Main Screen
Note: Click the icon (located in the top right corner of most screens) to view
embedded help.
Table 3 Web Configurator Screens Summary
LINK/ICON SUB-LINK FUNCTION
Wizard INTERNET/
WIRELESS
SETUP
Use these screens for initial configuration including general
setup, ISP parameters for Internet Access and WAN IP/DNS
Server/MAC address assignment.
BANDWIDTH
MANAGEMENT
SETUP
Use these screens to limit bandwidth usage by application or
packet type.
Logout Click this icon to exit the web configurator.
Status This screen shows the ZyXEL device’s general device, system
and interface status information. Use this screen to access the
summary statistics tables.
Network
WAN Internet
Connection
This screen allows you to configure ISP parameters, WAN IP
address assignment, DNS servers and other advanced
properties.
More Connections Use this screen to view and configure other connections for
placing calls to another remote gateway.
WAN Backup
Setup
Use this screen to configure your traffic redirect properties and
WAN backup settings.
Use
submenus
to configure
ZyXEL
device
features.
Click the Logout icon at any time
to exit the web configurator.
