P-660HW-D Series User’s Guide
37 Chapter 1 Getting To Know Your P-660HW-D

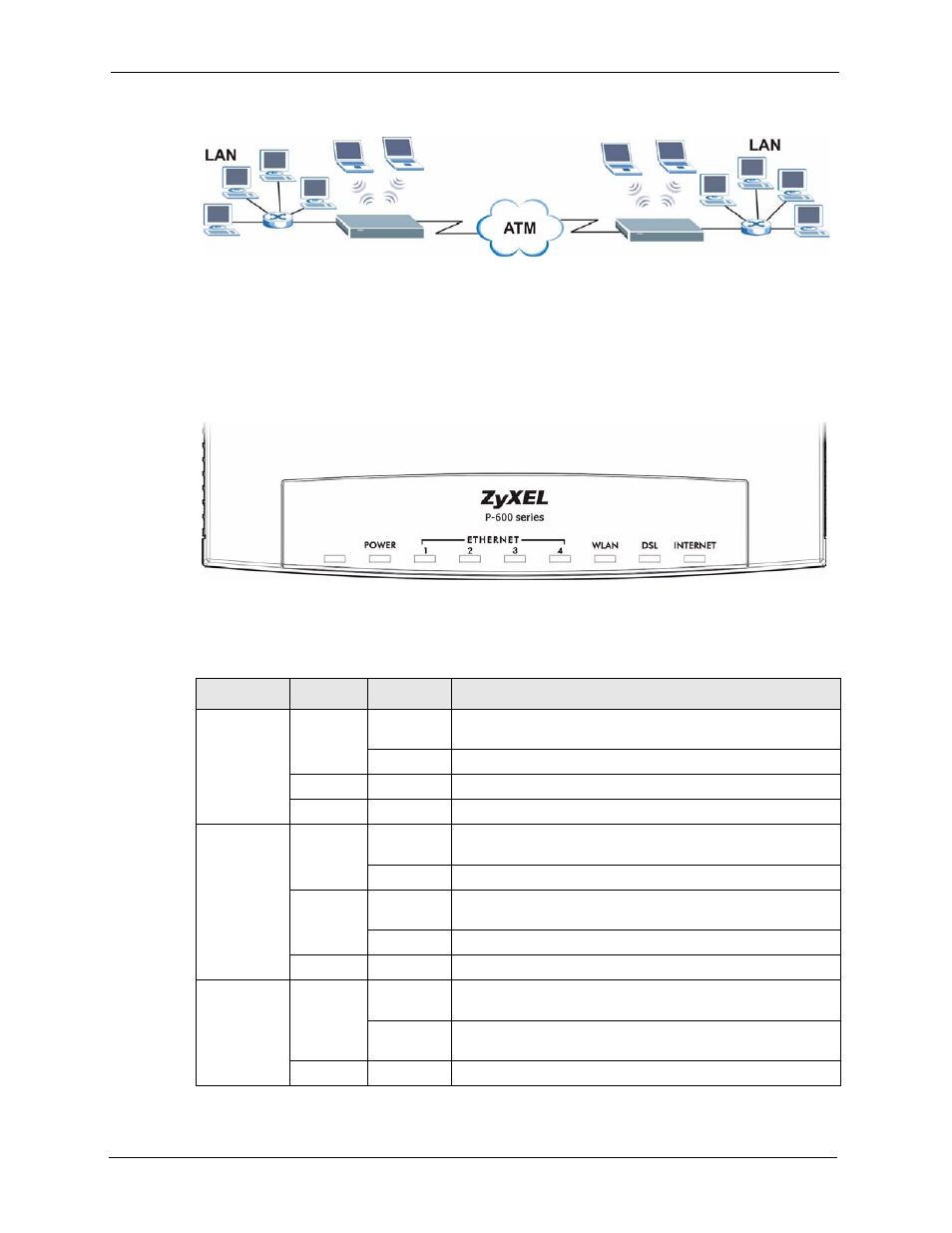

Figure 2 LAN-to-LAN Application Example
1.4 Front Panel LEDs
The following figure shows the front panel LEDs.
Figure 3 Front Panel
The following table describes the LEDs.
Table 2 Front Panel LEDs
LED COLOR STATUS DESCRIPTION
POWER Green On The ZyXEL device is receiving power and functioning
properly.
Blinking The ZyXEL device is rebooting or performing diagnostics.
Red On Power to the ZyXEL device is too low.
Off The system is not ready or has malfunctioned.
ETHERNET Green On The ZyXEL device has a successful 10Mb Ethernet
connection.
Blinking The ZyXEL device is sending/receiving data.
Amber On The ZyXEL device has a successful 100Mb Ethernet
connection.
Blinking The ZyXEL device is sending/receiving data.
Off The LAN is not connected.
WLAN Green On The ZyXEL device is ready, but is not sending/receiving data
through the wireless LAN.
Blinking The ZyXEL device is sending/receiving data through the
wireless LAN.
Off The wireless LAN is not ready or has failed.
