P-660HW-D Series User’s Guide
185 Chapter 13 Bandwidth Management
The following figure shows LAN subnets. You could configure one bandwidth class for
subnet A and another for subnet B.

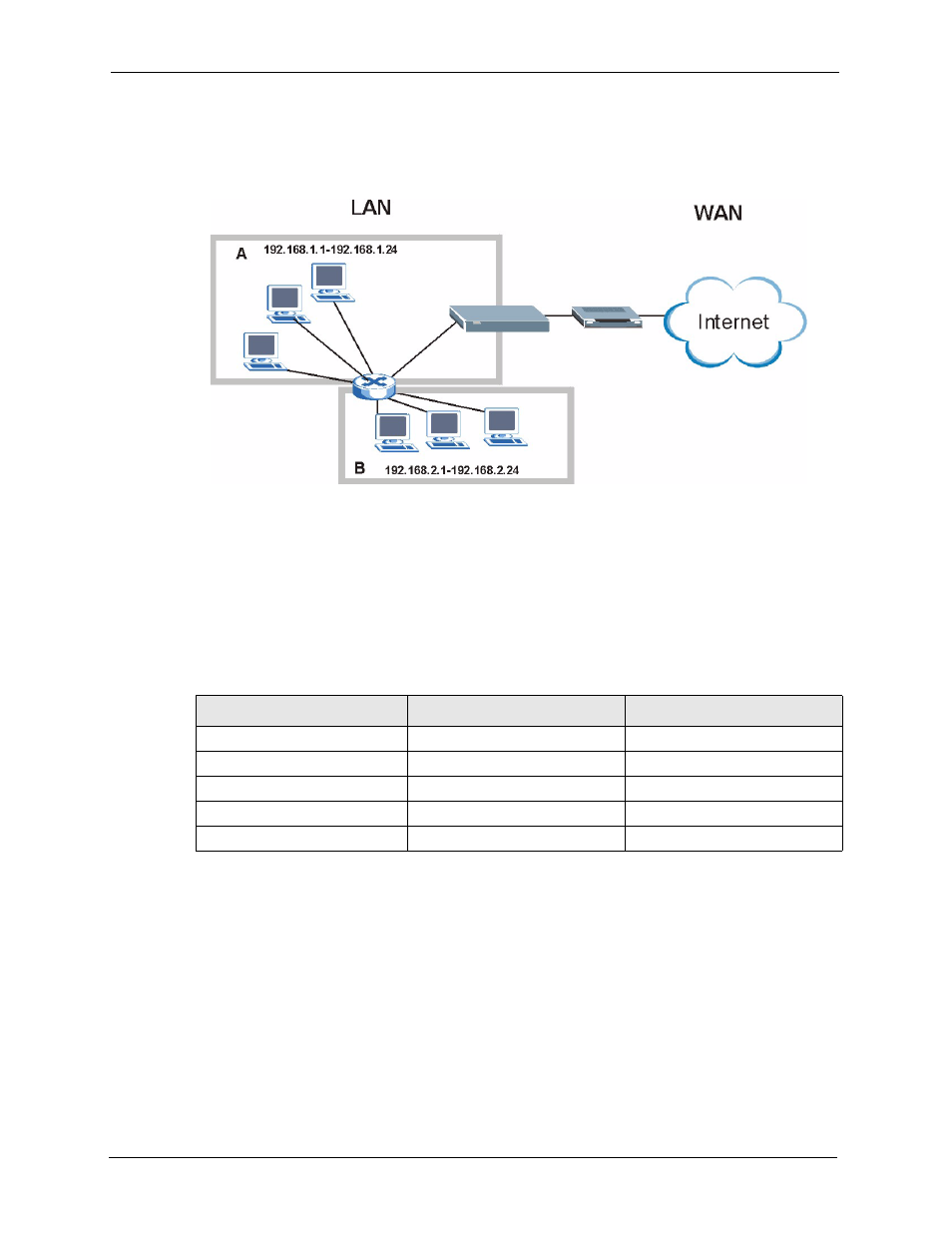

Figure 103 Subnet-based Bandwidth Management Example
13.4 Application and Subnet-based Bandwidth Management
You could also create bandwidth classes based on a combination of a subnet and an
application. The following example table shows bandwidth allocations for application specific
traffic from separate LAN subnets.
13.5 Scheduler
The scheduler divides up an interface’s bandwidth among the bandwidth classes. The ZyXEL
device has two types of scheduler: fairness-based and priority-based.
Table 69 Application and Subnet-based Bandwidth Management Example
TRAFFIC TYPE FROM SUBNET A FROM SUBNET B
VoIP 64 Kbps 64 Kbps
Web 64 Kbps 64 Kbps
FTP 64 Kbps 64 Kbps
E-mail 64 Kbps 64 Kbps
Video 64 Kbps 64 Kbps
