P-660HW-Tx v2 Series Support Notes

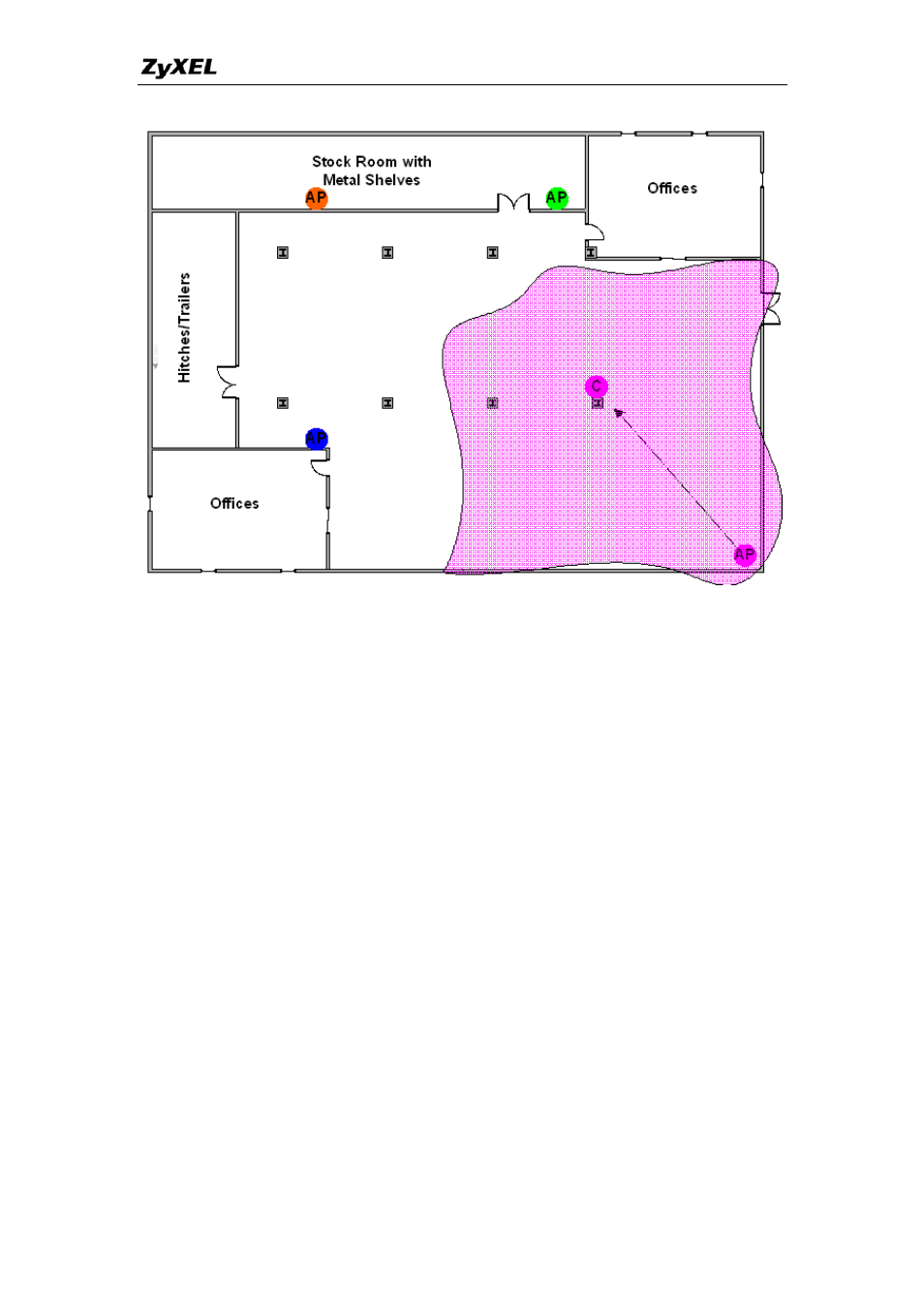

Step 5: When you reach the farthest point of connection mark the spot. Now
you move the access point to this new spot as have already determine the
farthest point of the access point installation spot if wireless service is required
from corner of the room.
Step 6: Repeat step 1~5 and now you should be able to mark an RF coverage
area as illustrated in above picutre.
Step 7: You may need more than one access point is the RF coverage area
have not cover all the wireless service area you needed.
Step 8: Repeat step 1~6 of survey on site as necessary, upon completion you
will have an diagram and information of site survey. As illustrated below.
104
