24 Installation
•
Straight through cable (white tag): Connect your Prestige to
a 10Base-T hub.
•
Crossover cable (red tag): Connect your Prestige to your
computer directly without a hub.
2 2 11 27( 27(
,
)7+,6&$%/(,686('72&211(&7
,6'1
,70$<'$0$*(<285
3
5(67,*(
•
AUI
The AUI port (the connector with 15 pins) is used to connect the
Prestige to a 10Base5 (thicknet) network.
If you have a 10Base2 network using BNC connectors and thin
coaxial cables, you will need a transceiver between the AUI port
and the 10Base2 cabling.
Connecting a Power Adapter to your Prestige
Plug a 16VAC 1200mA power adapter into the outlet on the rear
panel of the Prestige labeled POWER
At this point, you should have connected the RS-232 cable, the
ISDN phone line, the Ethernet cable, and the power supply. You
can now power on your Prestige.
Prestige Front Panel
Names and descriptions of the Prestige front panel LEDs are listed
below:

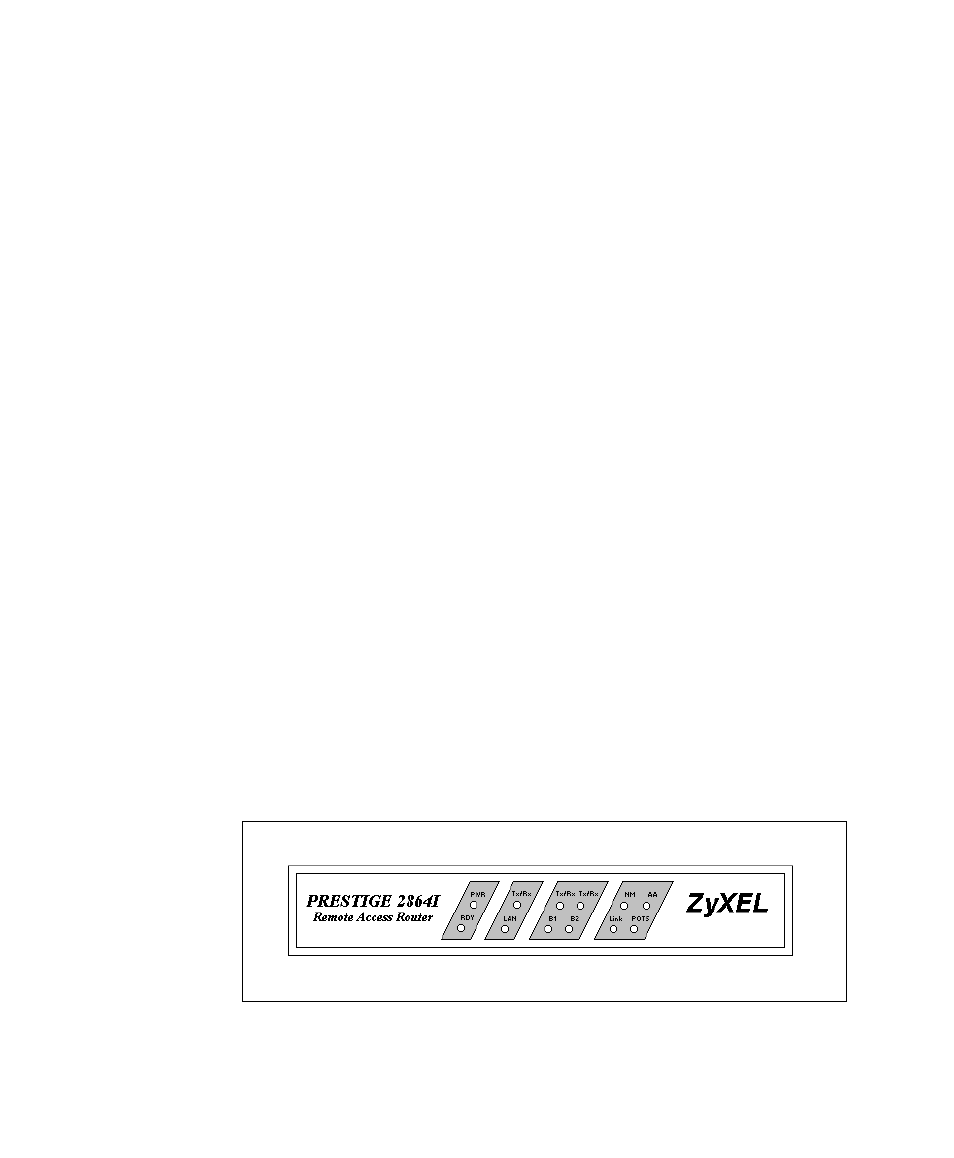

Figure 3-2 Front Panel
